Product Details:
|
| Wheel Base: | 4600mm | Maximum Authorized Total Mass: | 10950kgs |
|---|---|---|---|
| Turning Diameter: | 17m | Min Ground Clearance: | 260mm |
| Dimension (Mm)L×W×H: | 8570×2500×3570 | Power(KW): | 198 |
| Highlight: | fire engine truck,foam fire truck |
||

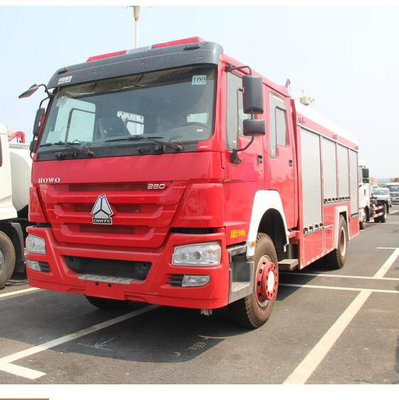

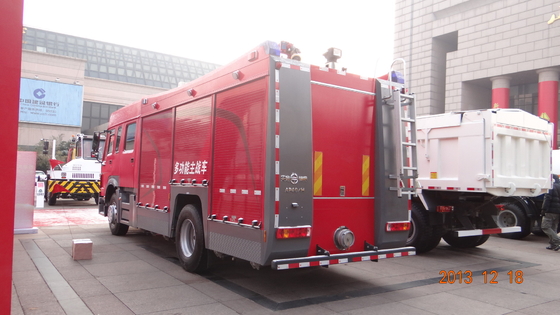

WD615.87 290 HP HOWO 4×2 Fire Fighting Truck Model :SHMC5256
Specification:
| SPECIFICATIONS FOR FIRE TRUCK | |||
| Name | Fire-extinguisher water tanker | ||
| Model | KWZ5190GXFPM80H | ||
| Chassis Type | ZZ1167M4617C | ||
| Driving Type | 4x2 | ||
| Wheel Base (Mm) | 4600 | ||
| Seating capacity | 6 | ||
| ENGINE | |||
| Type | WD615.92C | ||
| Power(KW) | 198 | ||
| Torsion | 1190N·m(1200-1500r/min) | ||
| DIMENSION PARAMETER | |||
| Dimension (Mm)L×W×H | 8570×2500×3570 | ||
| Overhang(Mm) | Front | 1500mm | |
| Rear | 2310mm | ||
| Approach Angle/Departure Angle | 16°/13° | ||
| min ground clearance | 260mm | ||
| FUNCTION PARAMETER | |||
| Turning Diameter | 17m | ||
| Maximum Speed(Km/H) | ≤ 90km/h | ||
| LOAD CAPACITY | |||
| Maximum Authorized Total Mass | 10950kg | ||
| Water | 8000kg | ||
| FIRE-FIGHTING EQUIPMENT | |||
| Fire Pump | flow | 60or30L/S | |
| pressure | 1.0or2.0Mpa | ||
| Primer Pump | depth | ≥ 7m | |
| time | ≤ 50s | ||
| Fire Monitor | location | truck roof in central | |
| flow(l/s) | 50 | ||
| pressure(mpa) | ≤1.0 | ||
| flow | 50L/S | ||
| range(m) | ≥70 | ||
| rotation angle | ≥360 | ||
| angle of altitude | ≥+80° | ||
| angle of depression | ≤-15° | ||
Our aim is:
to use our products to make your project value-added!
To use our products to make your city and country more clean, beautiful and modern!
Our Principal: honest innovation Cherish life protect environment
Description:
1). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
2). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
3). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
4) All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
FAQ:
Q. How about your company's service, especially after-sale service?
A: Our company have been in this field for many years, our company is constantly improving the service
quality to provide excellent service for customers according to the “client first” principle.We always do
our best to solve all the problems and put our customer's interests in the first place.
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q: Is there any advantages of your price?
A: Our company is one of the important suppliers of SINOTRUK, which provides guarantees for
reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
