Product Details:
|
| Tire: | 12.00R20 | Gearbox: | HW19710 |
|---|---|---|---|
| Oil Tanker: | 300L | Lifting Model: | Front Lifting |
| Highlight: | 10 Wheel Heavy Duty Dump Truck,Heavy Duty Dump Truck 371hp,Front Lifting 10 Wheel Dump Truck |
||

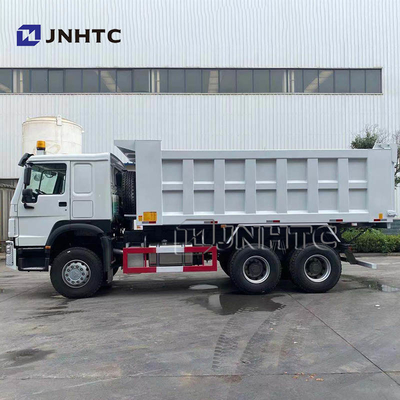

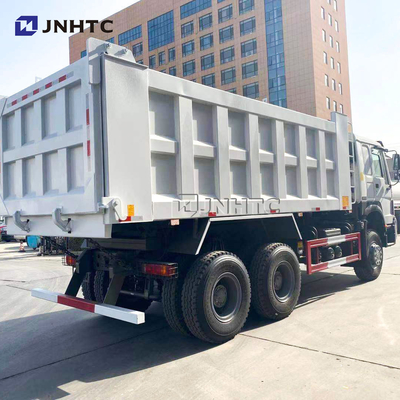

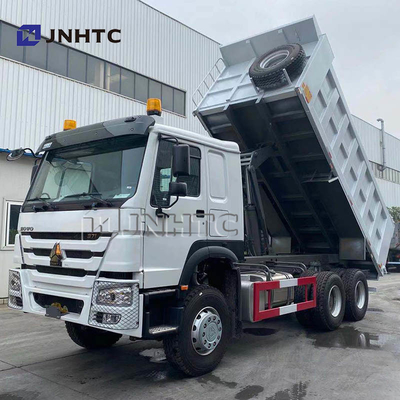

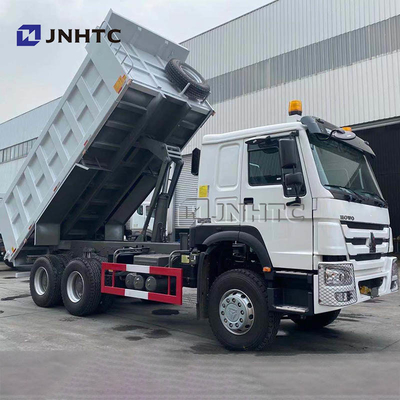

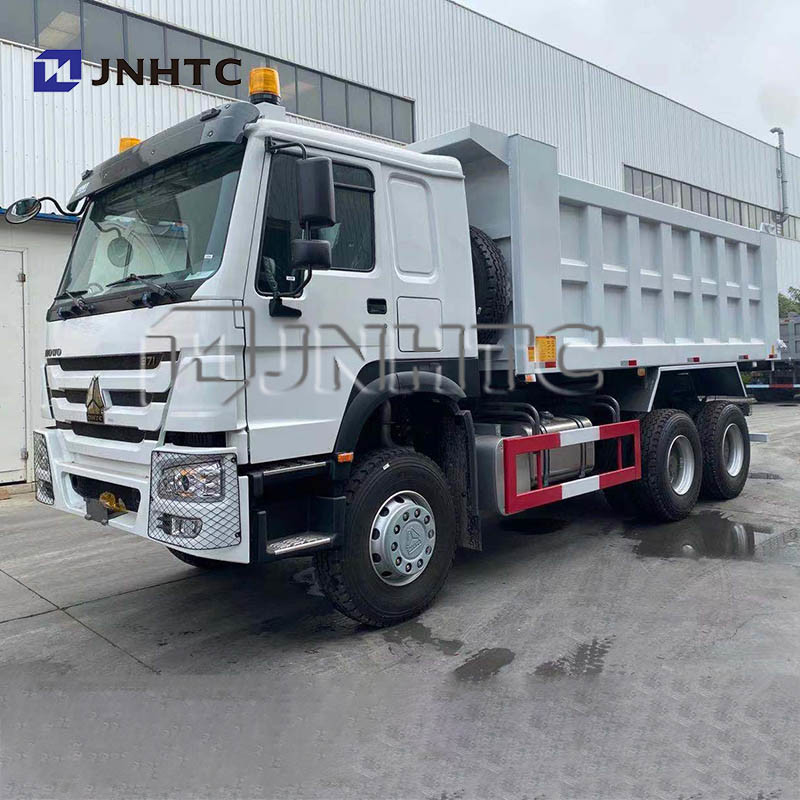

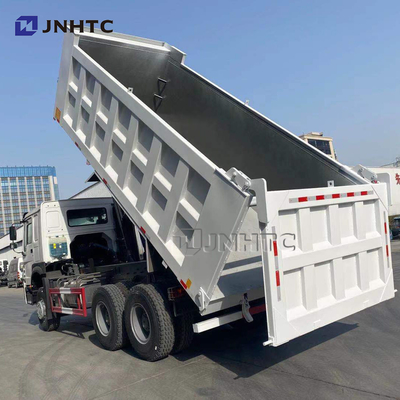

HOWO 10 wheeler 371hp 20cbm dump truck for sale in Ghana
| SINOTRUK HOWO 6X4 DUMP TRUCK MODEL ZZ3257N3847A | |||
| Body | Carriage Internal Dimensions(mm) | 5600*2300*1500 | |
| Cubage (m3) | 19 | ||
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm | ||
| Steel | Q235 | ||
| Hydraulic Lift of Carriage | Middle Lift | ||
| Weight | Kerb weight (Kg) | 12270 | |
| Gross vehicle weight (Kg) | 25000 | ||
|
Dimension (mm) |
Dimensions (mm) |
Length(mm) | 8245 |
| Width(mm) | 2550 | ||
| Height(mm) | 3450 | ||
| Wheel base (mm) | 3800+1400 | ||
| Performance | Maximum driving speed (km/h) | 75 | |
| Fuel consumption (1/100 km) | 38 | ||
| Cab | Model | SINOTRUK HW76 cab Single bunk,new type seat,adjustable steering ,air conditioner, MP3 |
|
| Engine | Model | WD615.47 , 371HP (Euro 2) | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged , direct injection | ||
| Maximum output Kw/r/min | 273/2200 | ||
| Maximum torque N.m/r/min | 1460/1300-1600 | ||
| Displacement | 9.726L | ||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan | |||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse, with PTO | ||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance. | ||
| Front Axle | SINOTRUK HF9, Front Axle,new 9-ton front axles of equipped with drum brakes. | ||
| Rear Axles | SINOTRUK HC16, Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles | ||
| Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
||
| Wheels/ Tyres | 12.00R20 / 12R22.5/ 13R22.5/ 12.00R24/ 295/80R22.5 / 315/80R22.5 optional | ||
| Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | ||
| If you need bigger one, like 5.8 / 6 / 6.2 / 6.5 / 6.8 / 7 / 7.3/ 7.6/ 8 m length dump box, or 336HP/371HP/420HP engine; or Euro III/ Euro IV/ Euro V emission, or any other requirement, just inquiry me. | |||
Q: How is your goods quality?
A: We ensure you that all our goods are original factory quality, without any refit or change. It is 100% new and original.
Q. What is your payment terms ?
A: 30% T/T deposit, 70% T/T balance before shipment .
Or 100% irrevocable L/C at sight.
Q. How long time will you take to deliver goods to customer ?
A : Generally 30 working days , after we receive your deposits .
Q: How you can ensure you have delivered goods to customers ?
A: We will inform you goods delivery in the whole course, give you the complete genuine shipping information details . You can also use your own agent for shipping.
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional engineer to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
