Product Details:
|
| Material: | Q345 | Steering: | ZF |
|---|---|---|---|
| Highlight: | concrete agitator truck,mix concrete truck |
||

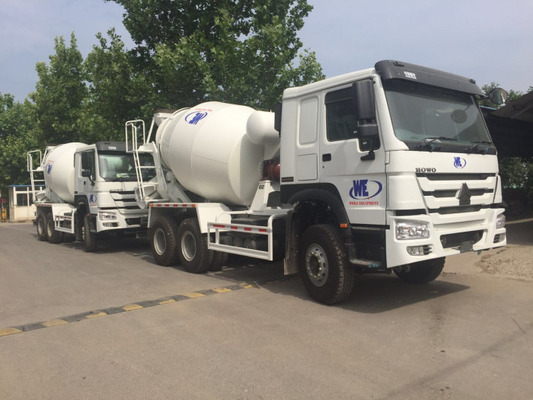

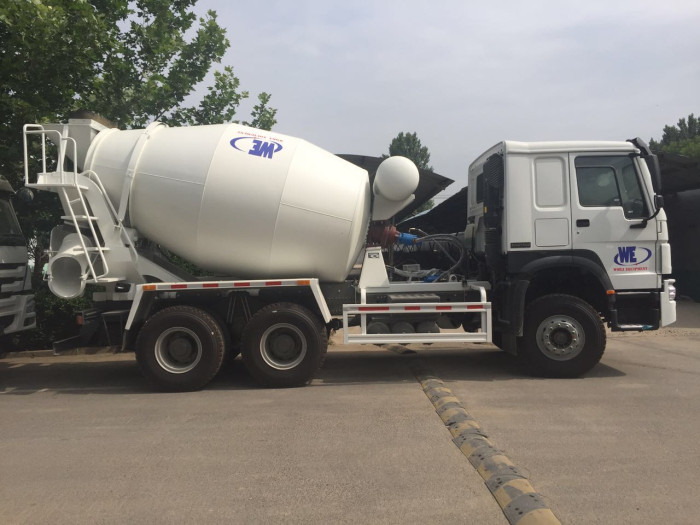

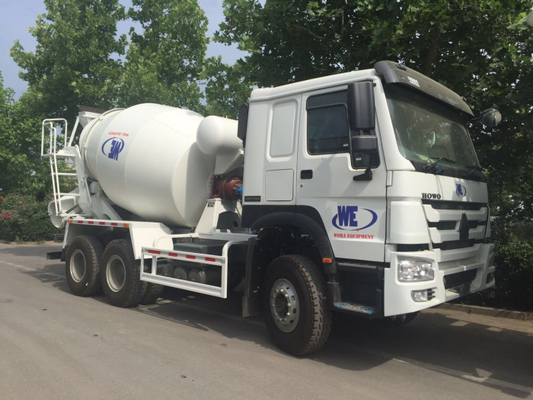

SINOTRUK HOWO Concrete Mixer Truck 10CBM 371HP 6X4 ZZ1257N3841/N0WA
Description:
The mixing tank body is made of high strength wear-resistant steel plate, cage type mold
are integrally formed to ensure that the flange, sections of the cylinder body and
rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.
The tank body adopts the double helix blade, moderate density and taper before the
gateball symmetric stirring plate and tank mouth at the installation of blades and a
material guide vanes, resorted to materials to be more even faster.
The HOWO Concrete Mixer Truck adopts HOWO chassis, equipped with HW76 single berth cabin or HW70 cab, exclusively for export is equipped with European 2 or Electronic commonrail, Euro III and Euro IV SINOTRUK independent research and development of engine, standardGerman imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 rear axle, carrying capacity great to meet the needs of customers.
Specification:
|
SINOTRUK HOWO Concrete Mixer Truck 10CBM 336HP 6X4 ZZ1257N3841/N0WA |
|
|
Model |
ZZ1257N3841/N0WA |
|
Drive Type |
6×4 |
|
Engine |
WD615.69 , 336HP( Euro II) |
|
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
|
Transmission |
HW19710(10 forwards & 2 reverses) |
|
Front Axle |
1×HF9 ( 9 Tons) |
|
Driving Axle |
HC16, 16Tons |
|
Steering |
ZF8098 hydraulic steering with power assistance. |
|
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|
Rim/ Tire |
11.00R20,12.00R20,12.00R24 Radial tire |
|
Wheel base |
3825+1350(mm) |
|
Overall dimension |
9335×2496×3950(mm) |
|
Tank body |
10CBM |
|
The curb weight |
13770(Kg) |
|
Gross weight |
25000 kg |
|
Max. speed |
102km/h |
|
Color |
White, red, green, golden and so on. |
