Product Details:
|
| TANK CAPACITY: | 15-25CBM | ||
|---|---|---|---|
| Highlight: | water tanker trailer,potable water tanker trucks |
||
SINOTRUK HOWO Water Carrying Water Tank Truck Drinking Water Truck 15-25CBM
Description:
Working principle is truck engine driven gearbox, gearbox mounted power take-off drive
sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of
liquid through the pipe to spray out.
Also can be adjusted into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged
in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped with water cannons.

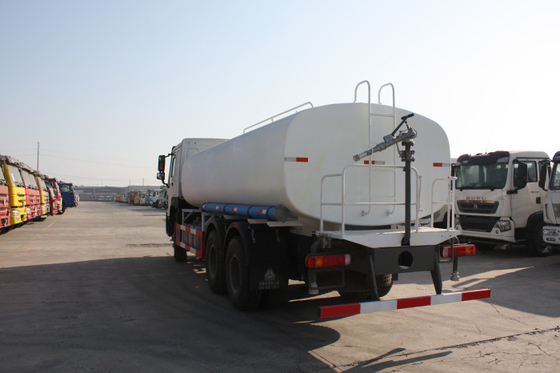

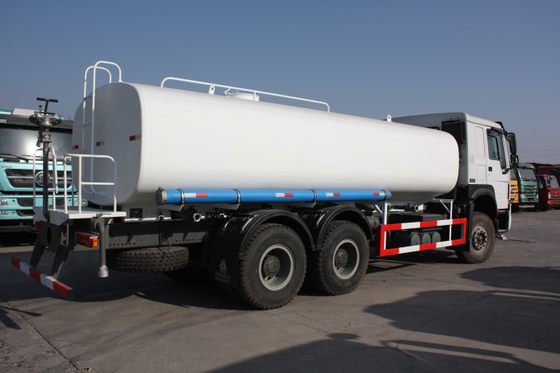

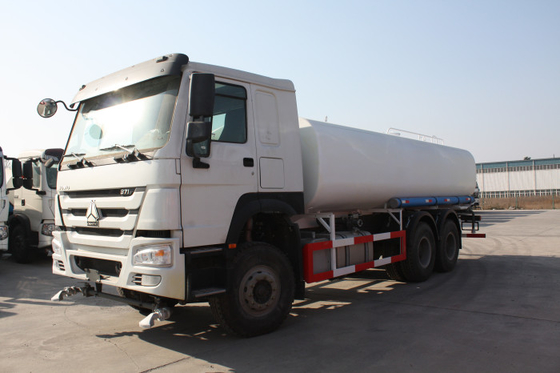

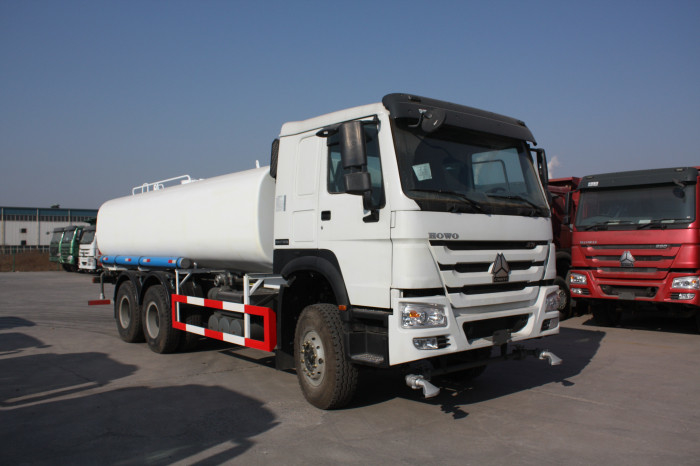

SINOTRUK HOWO Green Water Carrying Water Tank Truck Drinking Water Truck 15-25CBM
SINOTRUK HOWO Water tank truck is widely used in city landscaping, road or ming site dusty restrain and so on.
Specification:
| SINOTRUK HOWO 6×4 WATER TANK TRUCK LHD | |
| Model | ZZ1257N4641W |
| Cabin | HW 76 cab, with one bed and air condition, 70°hydraulically tillable to the front as attached photo for ref. |
| Engine | 371HP WD615.47 Euro II 4-stroke direct injection , 6-cylinder in-line, turbo-charging and inter-cooling |
| Gear Box | HW19710, 10 forward 2 reverse with PTO |
| Driving Alex | HC16 16TONS |
| Front Axle | HF9 Drum |
| Steering | Power steering ZF8118 from Germany |
| Tires | 12.00-20; 12.00R20; 315/80R22.5 |
| Fuel tank | 300L |
| Water tank volume: | 20,000 liters, tank thickness is 5 mm, seal is 5 mm Equipped with pump and nozzle |
