Product Details:
|
| Type: | Wheel | ITEM: | SPECIFICATION |
|---|---|---|---|
| Overload Type: | Front Overloading | Working Weight: | 17500kgs |
| Bucket Volume: | 3.0m3 | Rated Loading Weight: | 5000kgs |
| Highlight: | heavy construction equipment,heavy equipment wheel loader |
||

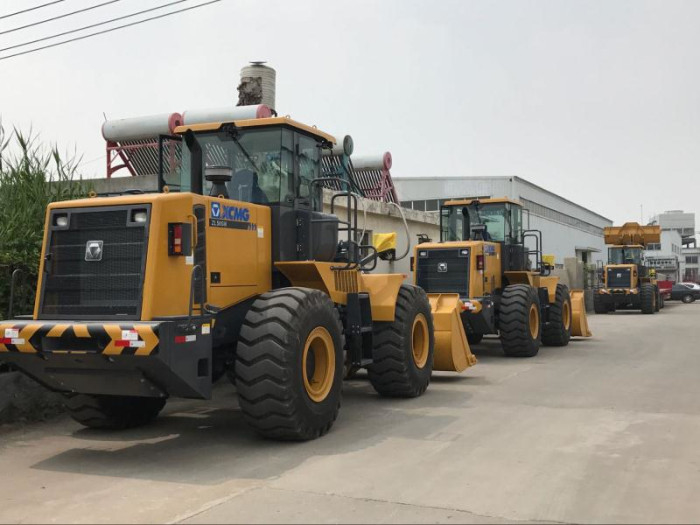

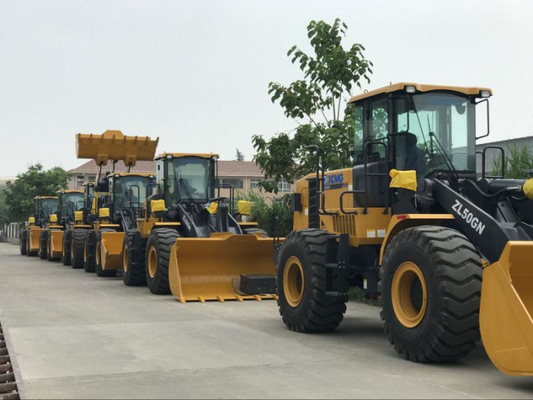

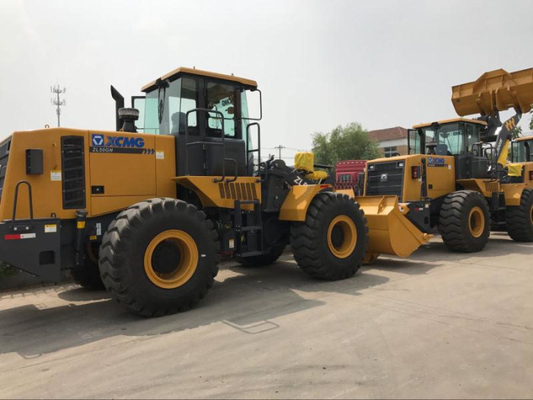

Compact Wheel Loader With Model ZL50GN , Working Weight 17500kgs , Bucket Capacity 3m3, 5000kgs
Product brief introduction
ZL50GN wheel loader is Xugong rely on international technology resources, the latest research and development of intergenerational products! This model breaks the traditional structure and uses variable displacement piston pump to provide different pressure and flow according to specific working conditions and steering hydraulic system to achieve automatic power distribution (APD). The fuel efficiency is greatly improved with an average energy saving of 15%.
XCMG V series loaders focus on customer value, emphasizing customer experience, is the major port, mining, engineering construction, logistics and other industries organize the production of the preferred equipment.
ZL50N series loaders lead the development of China's loader industry for more than ten years.
| ITEM | SPECIFICATION |
| Type: | Wheel type |
| Overload type | Front overloading |
| Model | Middle type |
| Technical specification | |
| Working weight | 17500kgs |
| Bucket volume | 3.0m3 |
| Rated loading weight | 5000kgs |
| Max.digging powerkN) | 170KN |
| Max.Towing power | 165KN |
| Discharge height | 3090mm |
| Discharge distance | 1130mm |
| Min.Turning radius | 7300mm |
| Lifting time | 6s |
| Gradability | 70% |
| Engine | |
| Cylinder | 6 |
| Engine model | WD10G220E21 |
| Engine type | Turbo, water colling |
| Rated power | 162KW |
| Ratyed speed | 2200rpm |
| Max.Torque | 930N.m |
| Engine output | 9.726L |
| Output standard | Euro II |
| Brand | Wechai |
| Transmission | |
| Forward I | 11.5km/h |
| Forward II | 38km/h |
| Reverse I | 16.5km/h |
| Dimension | |
| Overall dimension | 8165x3016x3485mm |
| Wheelbase | 3300mm |
