Product Details:
|
| COLOR: | OPTIONAL | MATERIALS: | Q345 |
|---|---|---|---|
| FIFTH WHEEL: | 50' OR 90' | HORSE POWER: | 336HP,371HP,420HP |
| CAB: | HW76, HW79 | TIRES: | 315/80R22.5 , 12.00R20, 12.00-20 |
| Highlight: | tractor trailer truck,tractor head truck |
||

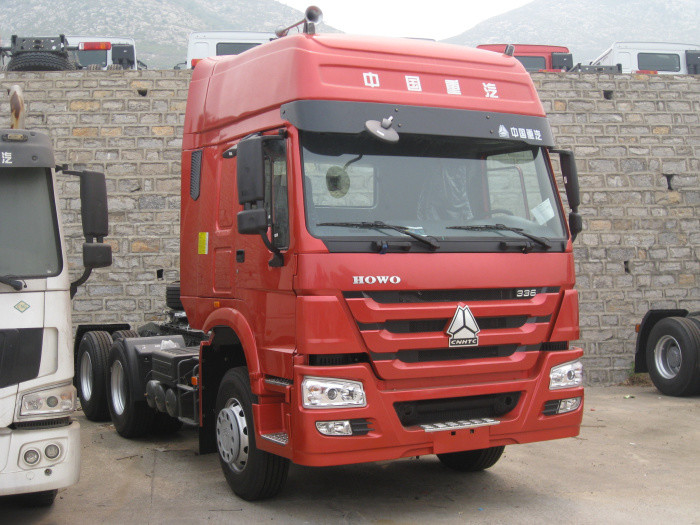

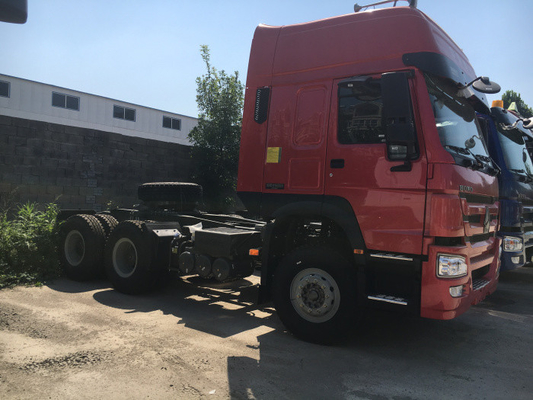

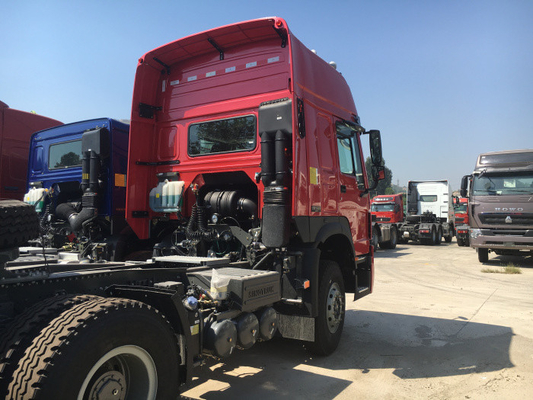

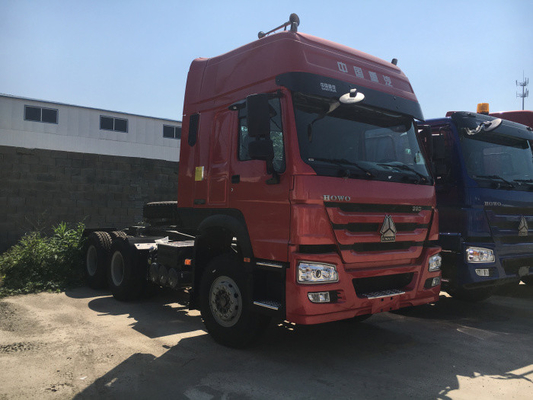

SINOTRUK HOWO Tow Tractor Prime Mover Truck RHD or LHD 371 HP ZZ4257S3241W
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Description:
SINOTRUK HOWO Tractor Truck 6X4 10 Wheels 371HP ZZ4257S3241W export to Nigeria
Specification:
| Model | Driving Type 6×4 GCW40000kg | |
| Engine |
Engine model: WD615.69, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system Maximum output: 336PS (247kW) at 1900 rpm Maximum torque: 1490Nm at 1200-1500rpm Bore: 126mm Stroke: 130mm Displacement: 9.726L Compression ratio: 17.5:1 Specific fuel consumption: ≤189g/kWh Engine oil filling quantity: 25L Air compressors: Twin cylinders air compressors |
|
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance | |
| Transmission |
Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) |
|
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle |
New HF7 series, with drum brake system Steering with double T-cross section beam |
|
| Rear Axle |
ST16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 4.3 |
|
| Chassis |
Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel |
|
| Steering |
ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
|
| Braking System |
Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
| Wheel & Types |
Rims: 8.5-20,10 hole-steel Types: 295/80R22.5, 12R22.5, 315/80R22.5, 12.00R20 |
|
| Driver’s cab |
Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel. |
|
| Electrical System |
Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Dimensions in mm |
Wheel base (mm) Front wheel track (mm) Rear wheel track (mm) Front overhang (mm) Rear overhang (mm) Approach angle(°) Departure angle(°) Overall Dimension (mm) |
3200+1400 2022/2041 1830 1500 700 16 70 6800×2496×2958 |
| Weight in kg |
Permissible loading capacity (kg) Dead weight (kg) Gross vehicle weight (kg) Gross combination weight (kg) Front axle loading capacity (kg) Rear axle loading capacity (kg) |
15790 9210 25000 40000 7000 2×9000 |
| Performance |
Maximum driving speed(km/h) Maximum gradeability(%) Minimum ground clearance(mm) Minimum turning radius (m) Fuel consumption(L/100km) |
102(reference data) 62 260 10.8 36(reference data) |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .
Competitive Advantage:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 3: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 5: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
Q 6: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
