4x2 HOWO Heavy duty tractor truck suitable for towing all kinds semi trailer which is used in Logistics business
Description:

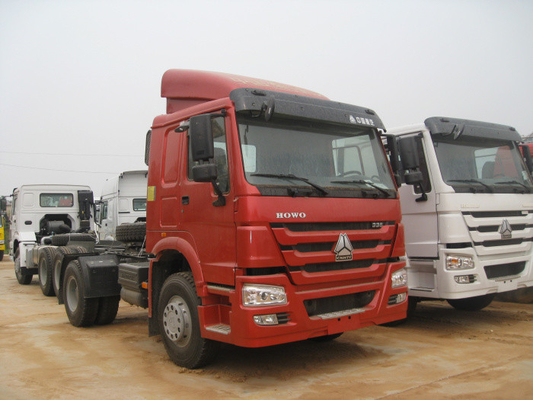

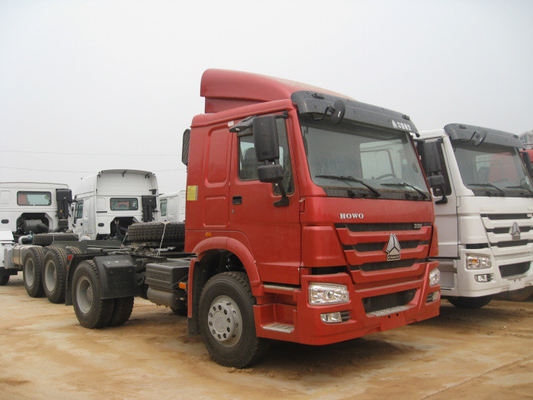

SINOTRUK HOWO Tractor Truck 4X2 6 Wheels
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
4) Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
Specification:
| Model |
ZZ4187N3817 |
| Engine |
Engine model: WD615.69, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 336PS (247kW) at 1900 rpm
Maximum torque: 1490Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
Compression ratio: 17.5:1
Specific fuel consumption: ≤189g/kWh
Engine oil filling quantity: 25L
Air compressors: Twin cylinders air compressors
|
| Clutch |
Single-plate dry coil-spring cluth, diameter 420mm or SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance; |
| Transmission |
Transmission, model HW15710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Transmission, model HW19710T, 10 forward and 2 reverse
Ratio:14.36; 10.66; 7.875; 5.82; 4.38; 3.28; 2.74; 1.80; 1.33; 1.00; 14.01/3.20(R)
|
| Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle |
New HF7 series, with drum brake system
Steering with double T-cross section beam
|
| Rear Axle |
Pressed axle housing, central single reduction with planetary wheel reduction and differential locks between wheels and axles, Ratio: 4.80, 4.3
Option: Single-reduction, Axle shaft pressed welded housing, Ratio: 4.875 (HW1279 or MCY13(Q))
|
| Chassis |
Frame: High-strength U-profile frame, all cold riveted cross members and reinforced sub frame;
Front suspension:9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer;
Rear suspension: 12 semi-elliptic leaf springs with bogie spring;
CNG Cylinder: CNG cylinder : 8x140L; Option: 4x80L+8*140L
Fifth Wheel size: 2 inch;
Option: 3.5 inch fifth wheel;
|
| Steering |
ZF8098, hydraulic steering with power assistance (RHD or LHD)
Ratio: 22.2-26.2:1
|
| Braking System |
Front and rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
|
| Wheel & Types |
Rims: 8.5-20,10 hole-steel or 8.25x22.5;
Types: 295/80R22.5, 11R22.5-16PR, 315/80R22.5; 11.00-20; 11.00R20; 12.00-20; 12.00R20
|
| Driver’s cab |
Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid
adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, single bunk, with 4-point support full floating suspension+ shock absorbers with transverse stablilizer. belt, air conditioner, adjustable steering wheel.
|
| Electrical System |
Operating voltage:24V, negative grounded;
Starter: 24V, 7.5KW
Alternator: 3-phrase, 28V, 1540W
Batteries: 2×12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
|
| Dimensions in mm |
Wheel base (mm)
Front wheel track (mm)
Rear wheel track (mm)
Front overhang (mm)
Rear overhang (mm)
Approach angle(°)
Departure angle(°)
Overall Dimension (mm)
|
3825+1350
2022/2041
1830
1500
725
16
70
7400×2496×3700
|
| Weight in kg |
Dead weight (kg)
Rated loading capacity at fifth wheel (kg)
Gross combination weight (kg)
Front axle loading capacity (kg)
Rear axle loading capacity (kg)
|
11000
14890
45000
7000
21000
|
| Performance |
Maximum driving speed(km/h)
Maximum gradeability (%)
Minimum ground clearance(mm)
Minimum turning radius (m)
Fuel consumption(L/100km)
|
90(reference data)
35
298
17.1
35(reference data)
|
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .
Competitive Advantage:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 5: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 6: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
