6 Wheels 4×2 HOWO Prime Mover Truck With 35 Tons Loading Capacity Model ZZ4187V3517N1B

Large Image : 6 Wheels 4×2 HOWO Prime Mover Truck With 35 Tons Loading Capacity Model ZZ4187V3517N1B

Product Details:

Place of Origin:	SHANDONG
Brand Name:	SINOTRUK HOWO
Certification:	CCC,ISO
Model Number:	ZZ4187V3517N1B

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	nude
Delivery Time:	30-45 Days
Payment Terms:	LC,TT
Supply Ability:	300 Units Per Month

Contact Now

6 Wheels 4×2 HOWO Prime Mover Truck With 35 Tons Loading Capacity Model ZZ4187V3517N1B

Description

COLOR:	OPTIONAL	GEARBOX:	HW19710
FIFTH WHEEL:	50' OR 90'	HORSE POWER:	371HP,420HP
CAB:	A7-P, A7-G	TIRES:	315/80R22.5 , 12.00R20, 12.00-20
Highlight:	tractor head truck , prime mover and trailer

6 wheels 4×2 HOWO A7 heavy duty tractor truck 35tons loading 420hp Model: ZZ4187V3517N1B

Description:

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.

4)Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

Specification:

Model

ZZ4187V3517N1B Driving Type 4×2 GCW18000kg

Engine

Engine model: D12.420, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

Clutch

SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission

Transmission, model HW19710, 10 forward and 2 reverse

Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

New HF7 series, with drum brake system

Steering with double T-cross section beam

Rear Axle

ST16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

Ratio: 4.3

Chassis

A7 chassis frame is made of the latest high-strength material, with a tensile strength of 820mpa, the U-profile frame
With a sexition of 300x90x8 provides a greater bending and torsion strength, imporving the stability of chassis and
Reducing the deadweight of the complete vehicle by approximately 100kg while enhancing the load-carrying
Capacity coared to the original chassis frame Aluminum fuel tank: 400L capacity with locking fuel cap, fitted to the
Off side of the chassis. Spare wheel, fifth wheel: 2.0 inches, option: 3.5 inches.

Steering

ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2:1

Braking System

Front and rear drum brake, four-circuit protection valve

Service brake: dual circuit compressed air brake

Parking Brake: spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Wheel & Types

Rims: 8.5-20,10 hole-steel

Types: 295/80R22.5, 12R22.5, 315/80R22.5, 12.00R20

Driver’s cab

Brand new A7-G cab, 2 sleepers, 4 point ful -floating air suspension, adjustable steering wheel with various heights and
angles,Air suspension seat.

Electrical System

Operating voltage:24V, negative grounded
Starter: 24V, 7.5KW
Alternator: 3-phrase, 28V, 1500W
Batteries: 2×12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheel base (mm)

Front wheel track (mm)

Rear wheel track (mm)

Front overhang (mm)

Rear overhang (mm)

Approach angle(°)

Departure angle(°)

Overall Dimension (mm)

3825+1350

2022/2041

1830

1500

725

7400×2496×3700

Dead weight (kg)

Rated loading capacity at fifth wheel (kg)

Gross combination weight (kg)

Front axle loading capacity (kg)

Rear axle loading capacity (kg)

11000
14890

45000

7000

21000

Maximum driving speed(km/h)

Maximum gradeability (%)

Minimum ground clearance(mm)

Minimum turning radius (m)

Fuel consumption(L/100km)

90(reference data)

298

17.1

35(reference data)

Applications:

It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .

Competitive Advantage:

Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
Q 5: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 6: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.

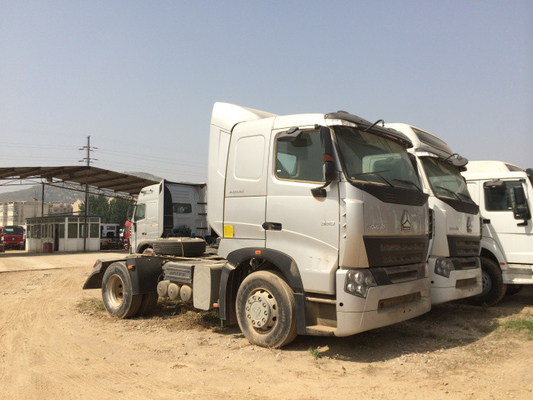

6 Wheels 4×2 HOWO Prime Mover Truck With 35 Tons Loading Capacity Model ZZ4187V3517N1B 0

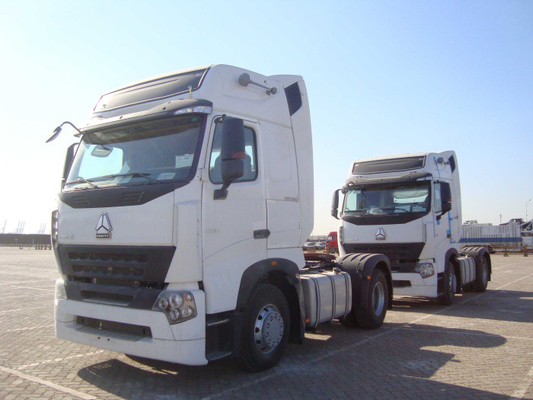

6 Wheels 4×2 HOWO Prime Mover Truck With 35 Tons Loading Capacity Model ZZ4187V3517N1B 1

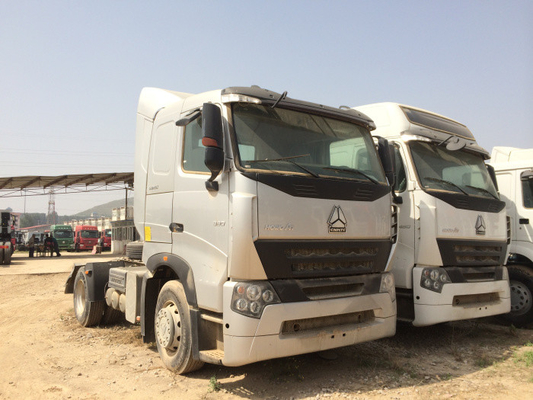

6 Wheels 4×2 HOWO Prime Mover Truck With 35 Tons Loading Capacity Model ZZ4187V3517N1B 2
