Product Details:
|
| COLOR: | OPTIONAL | GEARBOX: | HW19710 |
|---|---|---|---|
| FIFTH WHEEL: | 50' OR 90' | HORSE POWER: | 266 |
| Highlight: | tractor trailer truck,tractor head truck |
||

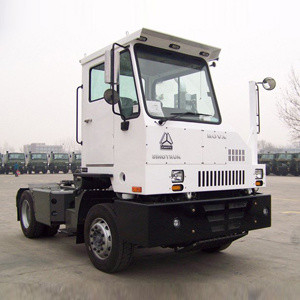

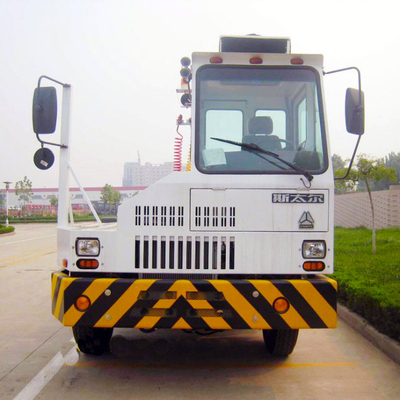

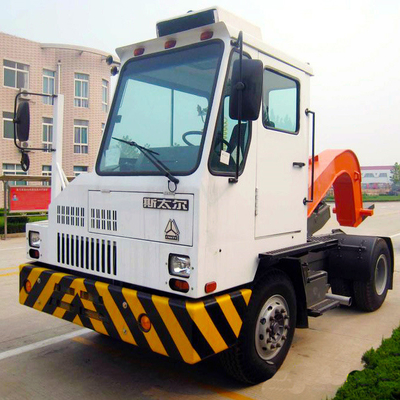

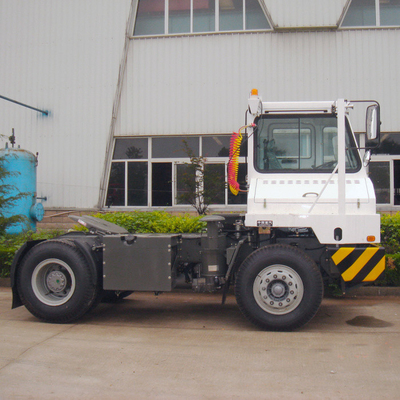

SINOTRUCK Terminal Tractor For Port With 5th Wheel Lifted Right / Left Driving,4x2 266hp, loading 50t-90t
Description:
Produced by complete German MAN truck technology, install with Chinese components make the truck European truck quality and Chinese made price.
Specification:
| GW5320 Series Terminal tractor head | ||
| Model | GW5320 Series | |
| Driveline | 4x2 | |
| Wheelbase (mm) | 2800 | |
|
Overall dimension |
Length(mm)
|
4650 |
| Width(mm) | 2690 | |
| Height(mm) | 2890 | |
| Track | FR/RR(mm) | 2026/1860 |
| Overhang | FR/RR (mm) | 1200/750 |
|
Kerb weight (kg) |
9000 | |
|
Permissible loading weight(kg) |
70000 | |
|
Max speed |
Km/h | 40 |
|
Min turning diameter |
m | 11.4 |
|
Min ground clearance (mm |
1220 | |
| Engine style | ||
| Model |
Shangchai SC8DK260Q3 WD615.92C |
|
| Type |
Intercooling, supercharging, |
|
| Number of cylinder | Direct-In-line 6 | |
| Displacement(L) | 8.3 | |
| Emission | Euro III | |
|
Max output power(kw/rpm) |
192(260)1500/2200 | |
| Transmission | ||
| Model |
MD3500 Allison automatic gearbox, |
|
| Type Gear box |
4 gears | |
| Rear axle | ||
| Model |
YOUNGMAN axle, strengthened driven axle |
|
| Front axle | ||
| Model Type |
YOUNGMAN Axle, non-driven HW--- HOWO 7T |
|
| Steering system |
Imported TRW steering |
|
| Braking sytstem | ||
| Pedal brake | Type |
Dual-circuit air system, front/rear drum brake |
| Suspension | ||
| Type | FR/RR |
Lengthways semiellipse spring |
| Tyre | 11.00-20 18PR | |
| Oil Tank | ||
| Material | Steel | |
| Fuel tank capacity | Liter | 230L |
Competitive Advantage:
Q1: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 3: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 4: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 5: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
Q 6: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
![]()
![]()
![]()
![]()
