Product Details:
|
| Pump Brand: | Eaton | Motor Brand: | Eaton |
|---|---|---|---|
| Reducer Brand: | Bonfiglioli | Tank Volume: | 12m3-16m3 |
| Cab: | A7-P | Axle: | 4 |
| Highlight: | mix concrete truck,cement mixer truck |
||

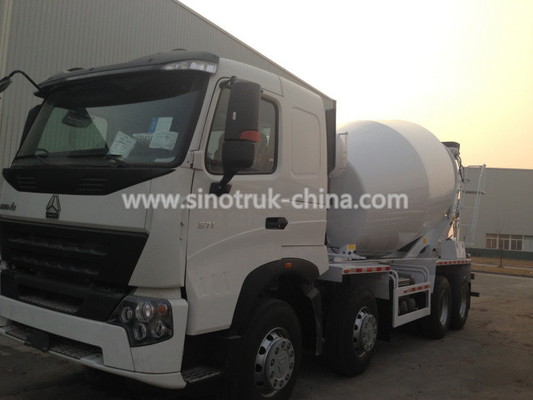

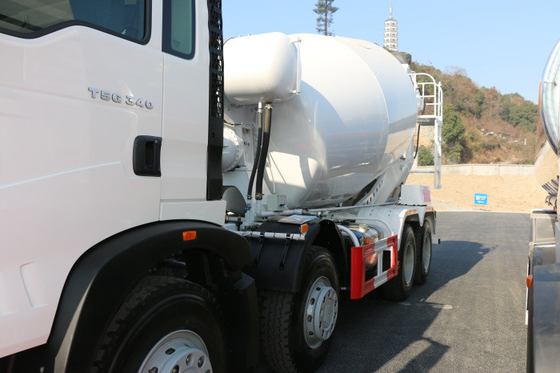

SINOTRUK HOWO A7 8×4 CONCRETE MIXER TRUCK WITH 16CBM TANKER 371HP ENGINE ONE BED
Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Specification:
| machine parameter | name | unit | parameter |
| 16m3(HOWO-8*4 chassis) | |||
| model | HDT5313GJB | ||
| Total Length | mm | 10850 | |
| Total Width | mm | 2496 | |
| Total Height | mm | 3980 | |
| Chassis Model | HOWO-ZZ1317N3667C1 | ||
| Overall Weight(standard code) | Kg | 31000 | |
| Curb Weight | Kg | 16600 | |
| Wheel Base | mm | 1800+3600+1350 | |
| Front Tread | mm | 2022 | |
| Rear Tread | mm | 1830 | |
| Front Overhang | mm | 1500 | |
| rear Overhang | mm | 2600 | |
| Min. Turning Radius | m | 11.5 | |
| Max. Traveling Speed | Km/h | 90 | |
| Steering Device(GERMANY ) | ZF8098( GERMANY ) | ||
| Transmission | HW18709 | ||
| engine | Oil Consumption per 100 km(under limited conditions) /100km | L | ≤31 |
| Engine Model | WD615.95, WD615.96, WD615.95E, WD615.96E | ||
| engine configuration | Water-cooled six-cylinder diesel engine Turbocharged Electronic Fuel Injection | ||
| Engine max. output power | KW | 247KW(2200R/Min);276KW(2200R/Min) | |
| Max. Engine Torque | N.m | 1350;1500 | |
| Max. PTO torque | N.m | 600(1100-1400r/min) | |
| discharge standard | state 3 Europe 3 | ||
| working device | Mixing Drum Volume | M3 | 24.1M3 |
| transport mixing volume | M3 | 16 | |
| agitator rotation angle | ° | 10° | |
| agitator rotation speed | r/min | 0-14 | |
| feed speed | M3/min | ≥3.5 | |
| discharge speed | M3/min | ≥1.5 | |
| landside degree | mm | 100~230 | |
| surplus rate | % | nearly zero | |
| water tank volume | L | 260 | |
| Max. mixing drum diameter | mm | φ2412mm | |
| supply water mode | air-pressure supply water or electric water pump |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .
