Product Details:
|
| Horse Power: | 266hp | Tank Volume: | 10CBM |
|---|---|---|---|
| Vehicle Curb Weight: | 7.5TONS | Vehicle Gross Weight: | 16TONS |
| Suction Depth: | ≥8M | Pumping Speed: | 318M3/H |
| Highlight: | sewage suction tanker truck,sewage waste truck |
||

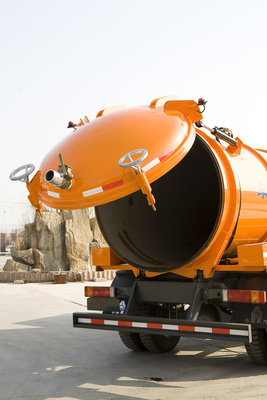

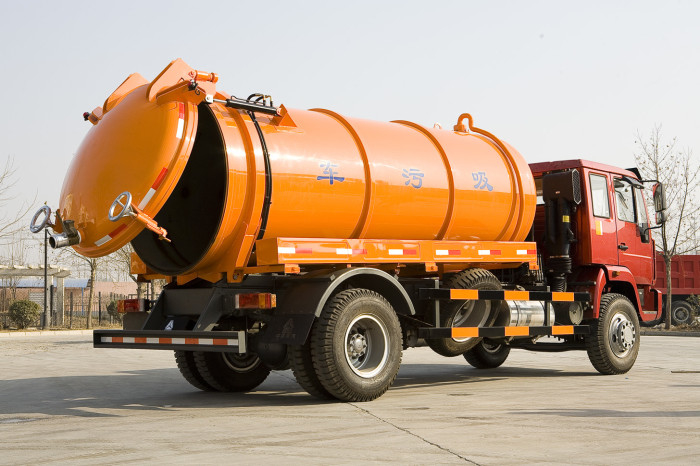

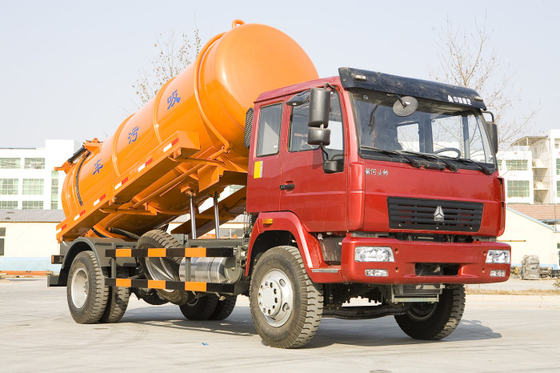

Sinotruk Sewage Suction Trucks 266 hp with U sectional external stiffening rings loading 16tons
Description:
1). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
2). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
3). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
4) Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
Specification:
| No. | Item | Unit | Value |
| 1 | Model | JHL5160GXW | |
| 2 | Chassis Type | ZZ1164G4715C1 | |
| 3 | Drive Type | 4*2 | |
| 4 | Overall dimension of truck(L*W*H) | Mm | 7550*2480*3260 |
| 5 | Overall dimension od tank (D*L) | Mm | Φ1650*5330 |
| 6 | Tank capacity | M³ | 10 |
| 7 | Wheelbase | Mm | 4700 |
| 8 | Tread(Front/rear) | Mm | 2020/1860 |
| 9 | Front overhang | Mm | 1250 |
| 10 | Rear overhang | Mm | 1800 |
| 11 | Max speed | Km/h | 99 |
| 12 | Vehicle curb weight | Kg | 7500 |
| 13 | Vehicle gross weight | Kg | 16000 |
| 14 | Diameter of suction tube | Mm | Φ100 |
| 15 | Suction depth | M | ≥8 |
| 16 | Opening angle of the rear tank door | ° | 60 |
| Vacuum pump | Type | Vane rot ary pump | |
| Pumping speed | M³/h | 318 | |
| Rated speed | Rpm | 1300 | |
|
High pressure washing and suction combination truck is mainly used fir swage pipe and industrial pipe dredging river slurry removal and industrial washing operations. The truck uses high pressure waterjet to remove dirty and blockage objects. The combination truck is also equipped with powerful vacuum suction device. It uses vacuum suction and pressure discharge. So it has high efficiency and saves time. Volume of its tank body is 3-30m³
|
|||
Competitive Advantage:
1. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation.
2. We have roundly passed the ISO9001-2008, 3C, BV and SGS.
3. Guaranteed high quality and competitive price.
4. Have warranty service for one year and provide maintenance for a life.
5. We always keep high efficiency and products are according to your requirements.
6. After service can be dealt within 48 hours
Applications:
Suction sewage truck is sanitation vehicles which are used for collecting and transporting sewage and
sludge in municipal, environmental sanitation and large property management company, to avoid
secondary pollution, with vacuum suction, pressure discharge function, efficient and time saving.
Vacuum pump, valve and others are imported products.
.
