Product Details:
|
| Material: | Q345 | CAB: | H16 |
|---|---|---|---|
| Loading: | 20TONS- 40TONS | Tires: | 10 Wheels |
| Horse Power: | 290hp,336hp,371hp | Color: | Optional |
| Highlight: | oil tanker truck,water tanker truck |
||

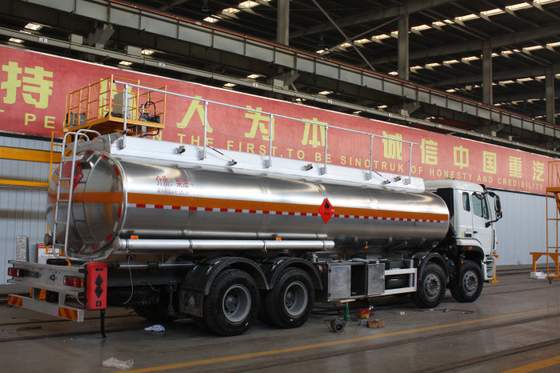

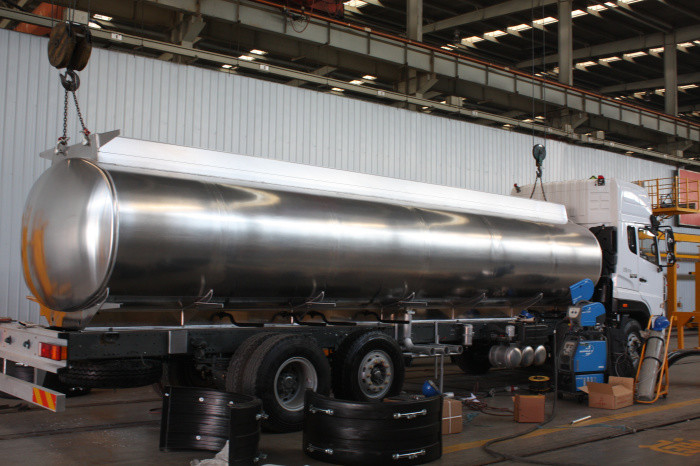

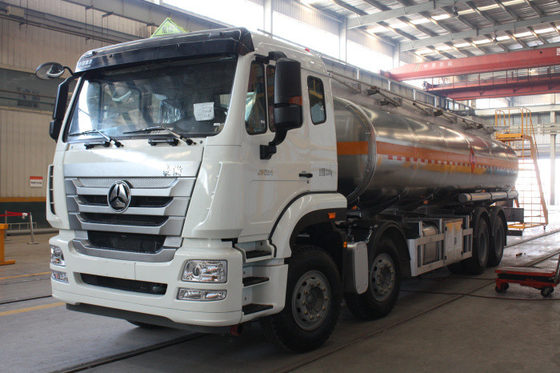

HOHAN Heavy oil tank Trucks 12 wheels 371HP Euro II one bed tank volume 30m3 model: ZZ1315M4666C1
Fuel Tank Truck Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
4) Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
Fuel Tank Truck Specifications:
| Item | SINOTRUK HOHAN 8X4 OIL TANK TRUCK |
| Truck model | ZZ1315M4666C1 |
|
Maximum output |
290 hp (196 Kw) at 2200 rpm Option: 290/336/371hp |
| Engine model | WD615.87,69,47 Euro II emission standard |
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
| Front Axles | HF7/HF9, 7000kg/9000kg |
| Rear Axles | ST13/ST16/HC16 |
| Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance Ratio: 26.2 |
| Tires | 12.00-20 tube Option: 12R20 tube, 12.00-24 tube, 12R24 tube, 12R22.5 tubeless |
| Air conditioner | With safety belts for driver and co-driver;With air conditioner |
| Transmission | HW15710/HW18710,10 speed |
| Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
30-52 ton |
| Driver's Cab | H16 Standard cab with single bunk |
| oil tank volume: 30,000 liters, tank thickness is 4 mm,Two rooms, 2 Manholes, 2 valve. | |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .
Competitive Advantage:
Q1: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q2:I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q 3: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 4: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 5: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
Q 6: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
