Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution

Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution
Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution

Large Image :  Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution

Product Details:
Place of Origin: SHANDONG
Brand Name: SINOTRUK HOWO
Certification: CCC,ISO
Model Number: ZZ1257M4347C
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: nude
Delivery Time: 30-45 Days
Payment Terms: LC,TT
Supply Ability: 300 Units Per Month

Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution

Description
MATERIAL: Q345 Length Range Of Garbage Box: 5500--6400
Hydraulic System Pressure: 30MPa FRONT AXLE: 9 TONS
REAR AXLE: 16 TONS ×2 MAXSPEED: 90KM/H
Highlight:

waste compactor truck

,

sanitation garbage truck

25 TONS SINOTRUK HOWO 6X4 Hook lift Garbage Truck one bed model: ZZ1257M4347C color optional


Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.

Specification:



  • 25T
  • Product No.: QDZ5250ZXXZH
  • Views : 198



    Main Specification of TruckMain Specification of Hook
    ModelZZ1257M4347CMax. Lifting Force17t
    EngineBrand SINOTRUKHeight of Hook1570mm
    WD615.97C Euro III(Ⅱ/Ⅲ/Ⅳoptional)Lifting Up Time≤40s
    Gross Vehicle Weight25000kgLifting Down Time≤50s
    Dead Weight11070kgDischarging Time≤50s
    Tyres12.00R20Discharging Angle50°
    CabHW76 Air-condition one-sleeping bed(two sleeping bed is optional)Length Range of Garbage box(mm)5500--6400
    Rated engine power213kW/2200r/min
    Front AxleHF7Hydraulic System Pressure30MPa
    Rear AxleHC16
    TransmissionHW19710Locking Device of Garbage Boxexternal hydraulic locking
    Lock type of reardoorMechanical type
    Overall Dimension(mm)Changeable according to the body
    Notes:The quotation is valid in 30 days.





    Competitive Advantage:

    Compressed garbage truck is produced by using Germany technology, and has outstanding technical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic
    degrees, quick loading speed, convenient, safe and reliable operation, and hasn’ t secondary pollution.

    The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed
    garbage truck uses compartment and truck separation, is equipped with several compartments for one truck, and can be used as small garbage transfer station.

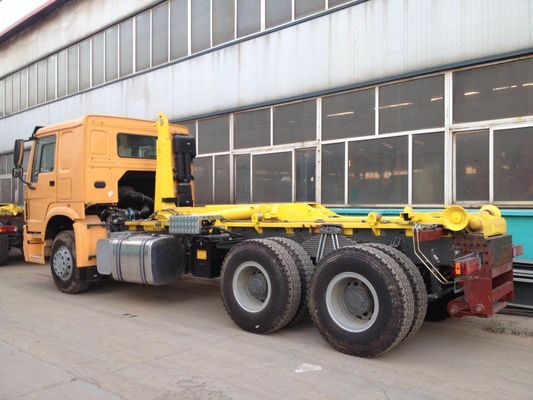

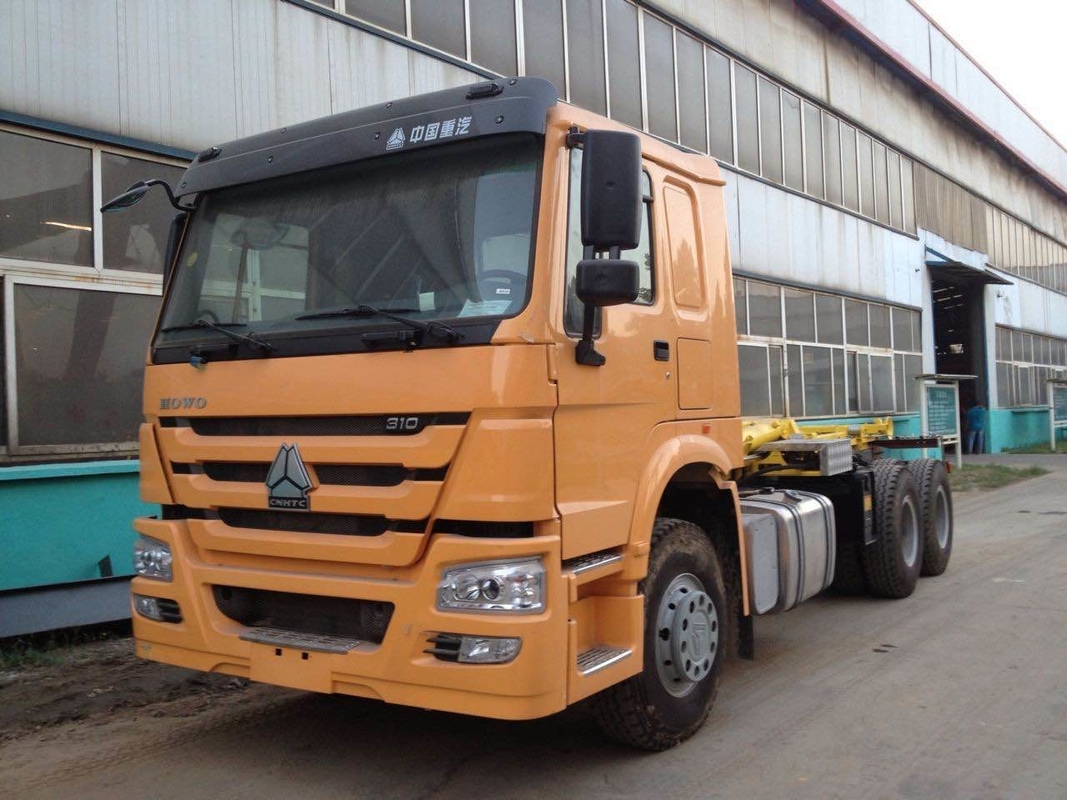

    Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution 0

    Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution 1
    Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution 2
    Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution 3
