Product Details:
|
MATERIAL: | Q345 | CAB: | 1 |
---|---|---|---|
BODY VOLUME: | 16M3 | FRONT AXLE: | 9 TONS |
REAR AXLE: | 16 TONS | MAXSPEED: | 90KM/H |
Highlight: | waste compactor truck,sanitation garbage truck |

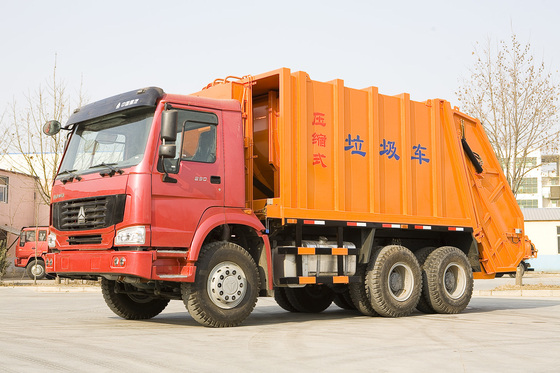

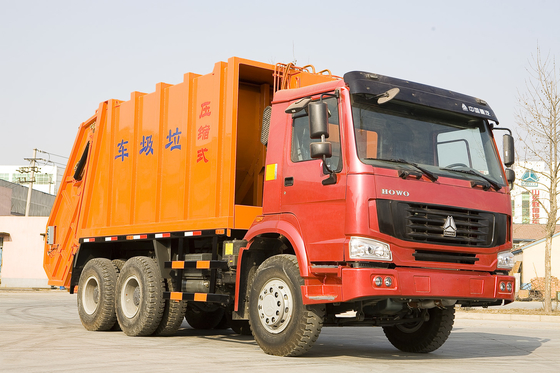

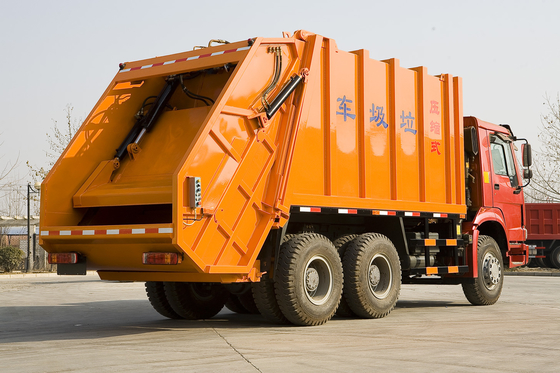

16m3 SINOTRUK HOWO 6X4 Compactor Sanitation Garbage Truck one bed model: QDZ5250ZYSA color optional
Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Specification:
No. | Model | Driving type | Engine output | Body volume(m3) | |
1 | QDZ5250ZYSA | 6X4 | 290hp | 22 | |
MAIN SPECIFICATIONS | |||||
Chassis Model | ZZ3257M3841 | Gross Vehicle Weight | 25000kg | ||
Engine | Brand SINOTRUK | Dead Weight | 11840kg | ||
WD615.87 | Tyres | 12.00R20 Radial tyre | |||
Maximum Output | 290HP | Cab | HW70 No sleeper Air-condition |
||
Rated engine power | 213/2200 | Rated loading capacity | 14870kg | ||
Transmission | HW15710 10forward & 2reverse |
Volume of filler(m3) | 2.5 | ||
Front Axle | SINOTRUK Model:HF9 | Time of one loading cycle | ≤25s | ||
Max.loading:9000kg | Time of one disloading | ≤60s | |||
Rear Axle | SINOTRUK Model:HC16 | Pressure of fluid system |
20Mpa | ||
Max.loading:32000kg | Max compression force | >250000kgf | |||
Steering | ZF8098 | Front,rear capacity of drain tank |
20 | ||
Maxspeed | 90km/h | Time of lift filler | 8-10s | ||
Overall Dimension(mm) | 9695x2500x3290 |
Competitive Advantage:
Compressed garbage truck is produced by using Germany technology, and has outstanding technical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic
degrees, quick loading speed, convenient, safe and reliable operation, and hasn’ t secondary pollution.
The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed
garbage truck uses compartment and truck separation, is equipped with several compartments for one truck, and can be used as small garbage transfer station.
