Product Details:
|
RATED LOAD: | 12 TONS | TIRES: | 10 WHEELS |
---|---|---|---|
Max Lifting Capacity: | 12000kg | Recommend Power:: | 30kw |
Front Axle: | HF9 DRUM | Oil Tank Capacity: | 160L |
Highlight: | truck mounted hoist,truck bed lift crane |

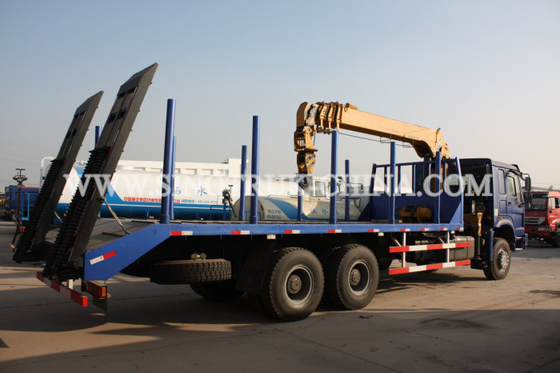

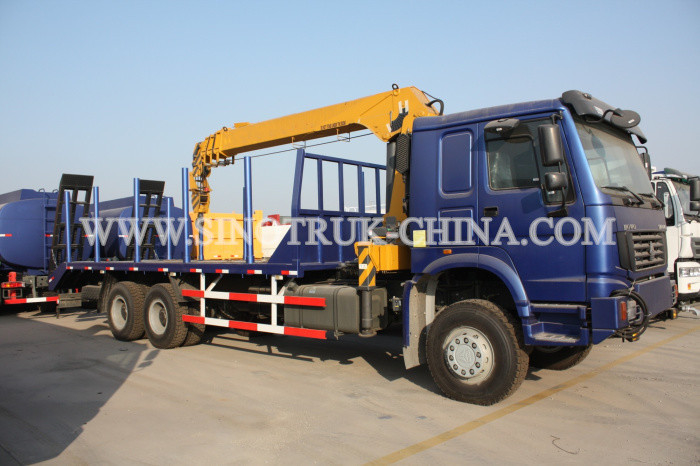

336HP 6×4 Cargo Truck Mounted Crane , MODEL SQ12SK3Q Max Lifting Capacity:12000kg
Description:
We are specialized in heavy field for almost one decade, we have great experiences no matter in service and spare parts supply. So we are the credible
partner for you.
Sepcification:
SINOTRUK HOWO 6*4 Crane Truck | |
Model: ZZ1257M5841W | |
LEFT HAND DRIVE | |
Engine: 336 HP Euro II | |
Front Axle: HF9 DRUM | |
Driving Axle: HC16 | |
Gear Box: HW19710C 10 speed | |
Steering:ZF8118 | |
Tyres: 12.00R20, 315/80R22.5, 12.00-20 | |
Cabin:HW76 Standard cab,one bunk,air conditioner | |
Brand of Crane:XCMG No. SQ512SK3Q | |
Max Lifting Capacity:12000kg | |
Max Lifting Moment:30 T.M | |
Recommend Power:30kw | |
Max Oil Flow of Hydraulic System:63L/min | |
Max Pressure of Hydraulic System:26MPa | |
Oil Tank Capacity:160L | |
Rotation Angle:All Rotation | |
Carriage Internal Dimensions:8000×2280×600mm | |
Steel thickness of Van:Floor: 3mm, Side:1.5mm |
Applications:
Truck Mounted crane can widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical
engineering etc.), landscape sanitation, electricity and telecommunication industry.
Competitive Advantage:
1) with all kinds of truck model, which can fulfill your requirement
2) Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance
3) competitive price, cost-effective
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
6) Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality rotary support and reducer, make the action more supple and smooth.
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and
more reliable
9) Adopted imported hydraulic pump, valve and other hydraulic components, lock micro products, to ensure safety and durability
10) quick and efficient spare parts supply bring you more convenient
11) fast delivery time, we can arrange production according to your needs exactly and quickly
12) professional import and export dealing procedure, make customs clearance more high efficiency
