39 M3 - 125m³ Output Concrete Pump Truck With 4 Sections Arms HDT5291THB-39/4

Large Image : 39 M3 - 125m³ Output Concrete Pump Truck With 4 Sections Arms HDT5291THB-39/4

Product Details:

Place of Origin:	SHANDONG
Brand Name:	SINOTRUK HOWO
Certification:	CCC,ISO
Model Number:	HDT5291THB-39/4

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	nude
Delivery Time:	30-45 Days
Payment Terms:	LC,TT
Supply Ability:	300 Units Per Month

Contact Now

39 M3 - 125m³ Output Concrete Pump Truck With 4 Sections Arms HDT5291THB-39/4

Description

Output In Theory:	125M3/H	Out Dimension(L×W×H:	12500×2490×3950
Max. Engine Output Power:	247KW	Max. Engine Output Torque:	1350N.M.
Max. Speed:	90KM/H	Quantity Of Boom:	4
Highlight:	cement pump truck , concrete boom pump truck

39 M3 Cement Pump Truck Cement Transport Trucks 4 Sections Arms 125m³ Output HDT5291THB-39/4

name		unit	parameter
name		unit	HDT5291THB-39/4
working parameter	output in theory	m3/h	125
	index of the pump carry capacity	Mpa.m3/h	586
	theoretic pumping pressure	Mpa	8.5
	bucket volume	L	700
	height of top surface of bucket	mm	1370
	model of distribution valve		S
	max. operation radius	m	34.7
	max. operation height	m	38.7
	max. operation depth	m	27
	open height of boom	mm	8830
	distance between front landing legs	mm	6800
	distance between rear landing legs	mm	7000
	distance between front & rear landing legs	mm	7432
	diameter of delivery pipe	mm	125
	length of hose pipe	m	4
	rotary range of boom		365°
	quantity of boom		4
	rotary angle of each boom	°	91/180/180/180/270
	wire line control distance	m	33
	remote control distance	m	200
running parameter	max. speed	km/h	90
	min. turn radius	mm	8800
	brake distance	m	7
	approach angle	°	16
	departure angle	°	11
	chassis model		HOWO ZZ5307N4647C
	wheel base between the first & the second axle	mm	4600
	wheel base between the second & the third axle	mm	1350
	front tread	mm	2022
	rear tread	mm	1830
	max. engine output power	kw	247(2200r/min)
	max. engine output torque	n.m	1350(1100-1600r/min)
	max, gradient ability	%	35
	fuel consumption	L/100km	34
	out dimension(L×W×H)	mm	12500×2490×3950
	total weight	kg	29500

The Upper Part Basic Configuration

Main Imported Parts Name	Main Purchased Parts Origin and Manufacturer
Slewing ring bearing	Germany
Boom Multi-Valve	Germany HAWE
Hydraulic pump,valve	Germany Rexroth
Transfer gearbox	Germany STEIBEL
Hydraulic Hose	Italy Manuli
Hydraulic Oil cooler	Italy EMMEGI
Hose fitting	Germany EMB
Wired and wireless remote control	Germany HBC

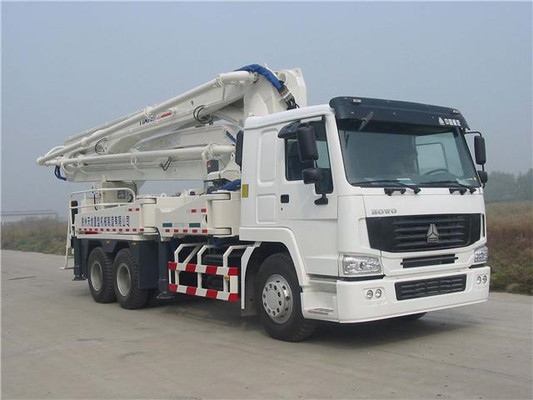

39 M3 - 125m³ Output Concrete Pump Truck With 4 Sections Arms HDT5291THB-39/4 0

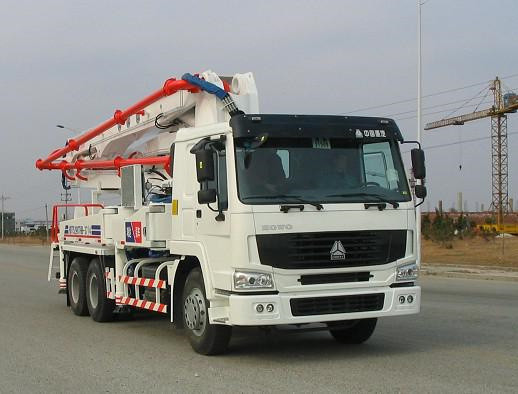

39 M3 - 125m³ Output Concrete Pump Truck With 4 Sections Arms HDT5291THB-39/4 1
