Product Details:
|
| Product Name: | Beiben 6x4 Prime Mover Truck | Engine: | WP10.340E32 340hp |
|---|---|---|---|
| Gearbox: | 12JS160T | Steering System: | TAS85 |
| Front Axle: | 7.5T Mercedes Benz Technology | Drive Axle: | 13T Mercedes Benz Technology |
| Highlight: | tractor trailer truck,tractor head truck |
||
Euro3 EGR 340hp Beiben 6x4 Prime Mover And Trailer With Long Service Life
Prime Mover Truck
Contact us:
Mr. Vincent(Sales Director)
JINAN HEAVY TRUCK IMPORT & EXPORT CO., LTD
Office add: No.11889 Jingshi West Road, Changqing Directy, Jinan City, Shandong Province, China.
Tel: 0086-531-87238633
Fax: 0086-531-87238633 Mobile: 0086-15664435881(Whatsapp/ Wechat)
E-mail: vincent.geng@outlook.com
Skype: vincent.geng@outlook.com
Website: http://www.jnhowotruck.com

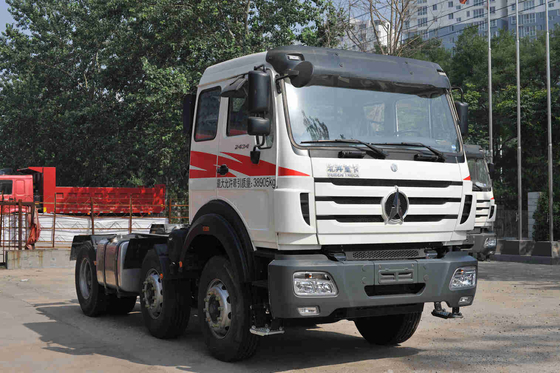

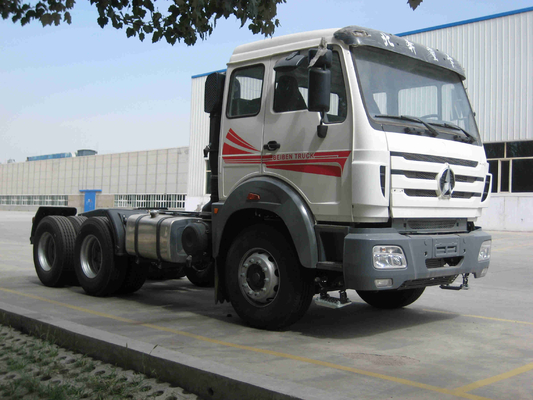

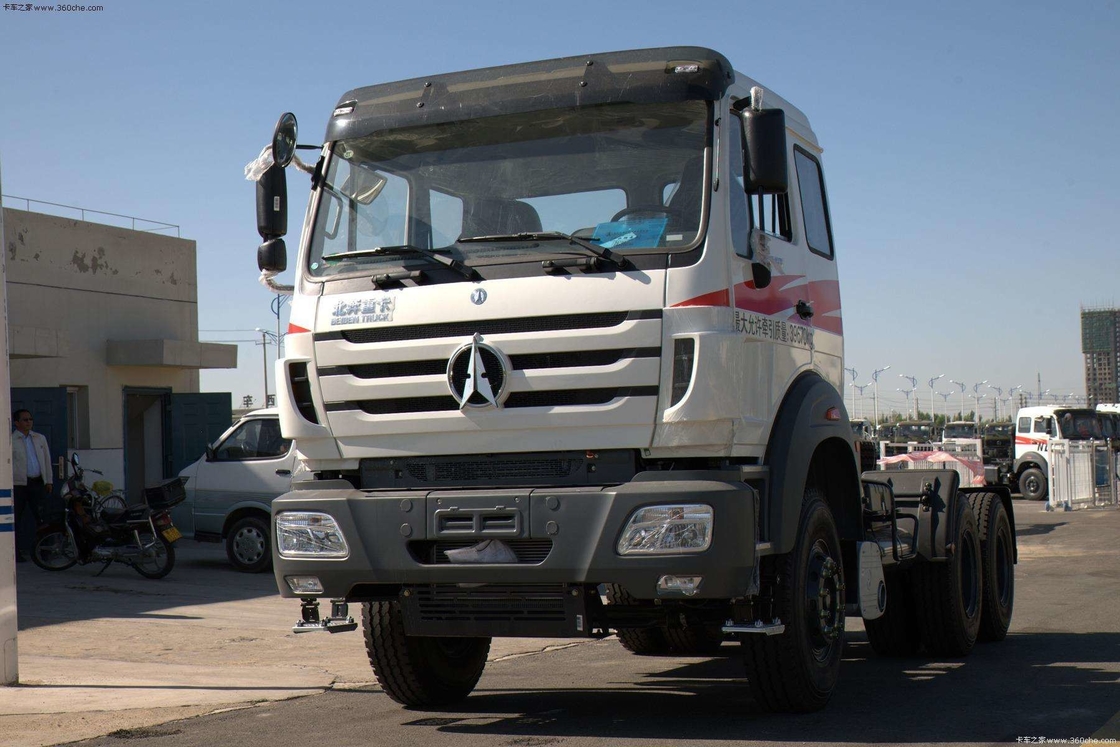

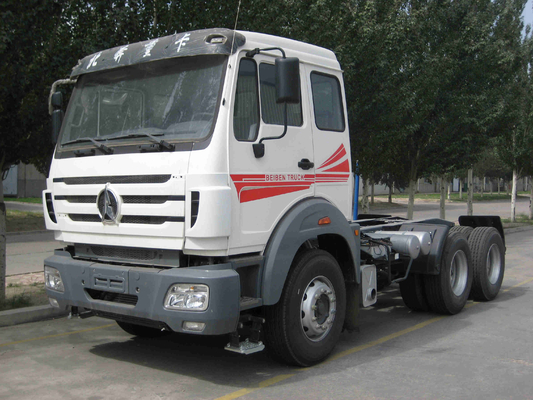

Prime Mover Truck Pictures:
SPECIFICATION(ND4257B34J)
| Wheel base (mm) | 3450+1450 | |||
| Dimension | 7050×2495×3260mm | |||
| Curb weight (kg) | 8800 | |||
| Front overhang/rear overhang (mm) | 1410/740 | |||
| Approach angle/Departure angle | 26/64 | |||
| Max Speed:(Km/h) | ≥85 | |||
|
Engine
|
Model |
WP10.340E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
||
| Fuel type | Diesel | |||
| Emission | EUROIII EGR | |||
|
Rated Power / rotating (kw/(r/min) |
250Kw/2200rpm (340HP) 340 |
|||
|
Maximum Torque / rotating speed(n.m/(r/min) |
1350Nm/1100-1600rpm | |||
|
Displacement(ml) |
9726 | |||
| Fuel tanker capacity (L) | 400L | |||
| Clutch | Model | #430, Single dry frictional disc,Hydraulic boosting | ||
| Gearbox | Model |
12JS160T mechanical type,mechanical type,Based on Fuller Eaton technology ,12 Forward speed gear. |
||
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
||
|
Assistant brake |
Engine exhaust brake | |||
|
Park brake |
Potential springs pressing on middle and rear wheels | |||
|
Steering system |
Model |
TAS85 whole circulation in ball type, hydraulic boosting |
||
|
Suspension System |
Front Suspension |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,13pcs springs |
||
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13pcs springs |
|||
| Frame |
Fish belly shape, variable width, variable sections Based on Germany Benz Technology |
|||
|
Cross section dimension of frame(mm) |
317X70X8.5+7+12mm | |||
| Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7.5 tons no-driving steering axle
|
|||
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13 tons double reduction driving axle, speed ratio5.263 |
|||
| Tire | 11.00R20 radial tire | |||
| Qty of tire | 11 (10+1) | |||
|
Electrical system |
Battery |
2X12V/135Ah | ||
|
Generator |
28V-70A | |||
|
Starter |
5.4Kw/24V | |||
|
Cab
|
NG80B Long cab with one sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|||
|
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C. |
||||
|
Exterior trimming: Metal bumper, three steps, new mirror. |
||||
| Fifth wheel | #50 single direction (JOST) | |||
