Product Details:
|
| Brand: | Sinotruk | Condition: | New |
|---|---|---|---|
| Manufacture: | 2019 | Name: | 8x4 Truck Mounted Concrete Pump Machine SINOTRUK HOWO |
| Product Name: | Concrete Pump Truck | Full-load Total Weight: | 40ton |
| Highlight: | cement pump truck,concrete boom pump truck |
||

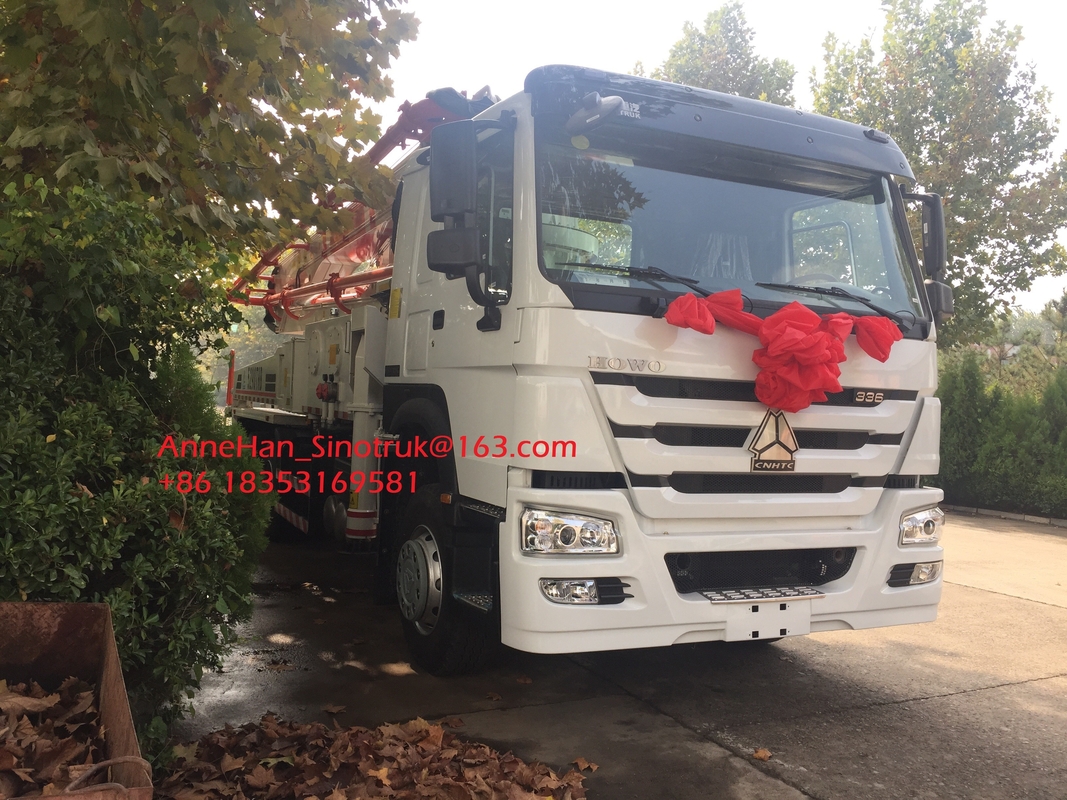

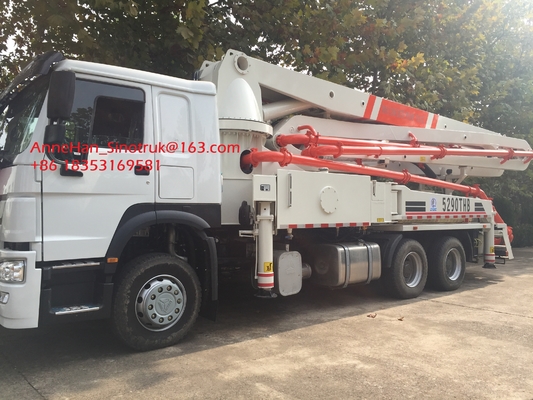

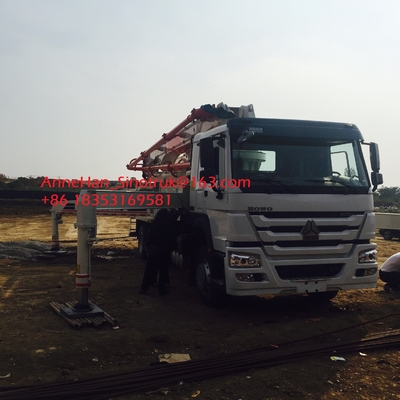

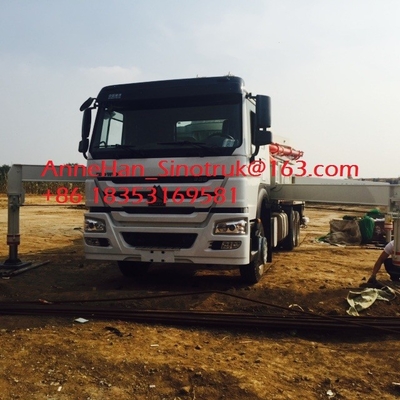

8 X 4 Truck Mounted Concrete Pump Machine SINOTRUK HOWO Low Consumption
More view
Show details
Productive process
Shipment method: the low bed trailer can be shipped by bulk ship, roro ship.
Shipping by bulk ship
Shipping by RORO ship
Competitive Advantage:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
Q 3:What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 5: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 6: What's the delivery time ?
| 48m HOWO 8x4 concrete pump truck | ||
|
Main Technical Parameters in working condition
|
Theoretic productivity | 125 m3/h |
| Index of the pump carry capacity | 586 Mpa.m3/h | |
| Theoretical Pumping Pressure | 8.5 Mpa | |
| Hopper Capacity | 700 L | |
| Feeding Height | 1400 mm | |
| Distributing Valve mode | S-pipe valve | |
| Max. Distributing Radius of distributing boom | 43.7 m | |
| Max. Distributing Height of distributing boom | 47.7 m | |
| Max. Distributing Depth of distributing boom | 34.3 m | |
| Height of Distributing Boom When Stretched | 9065 mm | |
| Distance between Front Landing Legs | 9780 mm | |
| Distance between Rear Landing Legs | 9860 mm | |
| Distance between Front and Rear Landing Legs | 9470 mm | |
| Diameter of Conveying Pipe | 125 mm | |
| Length of end Hose pipe | 3 m | |
| Rotary Range of Distributing Boom | 365° | |
| Number of Boom Sections | 5 | |
| Rotary Angle of Each Boom Section | 91/180/180/180/270 | |
| Close-control Distance | 33 m | |
| Remote-control Distance | 200 m | |
|
Main Technical Parameters in Traveling Condition
|
Max. Traveling Speed | 85 |
| Min. Turning Radius | 12000 | |
| Brake Distance | 10 | |
| Approach Angle | 16° | |
| Departure Angle | 11° | |
| Chassis Model |
HOWO ZZ5437N4667 SINOTRUCK Engine |
|
| Wheel Base between the First and the Second Axle | 1800+4600+1350 mm | |
| Front Tread | 2022 mm | |
| Rear Tread | 1830 mm | |
| Max. Engine Power | 275(2200r/min) | |
| Max Engine Torque | 1500 /(1100~1600 r/min) | |
| Max. Grade Ability | 37 % | |
| Fuel Consumption Limit | 40 L/100km | |
| Overall Dimension (L xWxH) | 13300x2500x4000 mm | |
| Full-load Total Weight | 40000 kg | |
the specifications for chassis
| Chassis : SINOTRUK HOWO ZZ5347N4667 | |
| Drive wheel | 8x4 |
| Gearbox | HW19710, 10forwards & 2reverse |
| Front axle | HF7 |
| Rear axle | ST16 |
| Steering system | 8198,hydraulic steering with powwer assistance |
| Tire | 12.00R20, 12+1 spare |
| Cabin |
HW76,one bed , with A/C |
