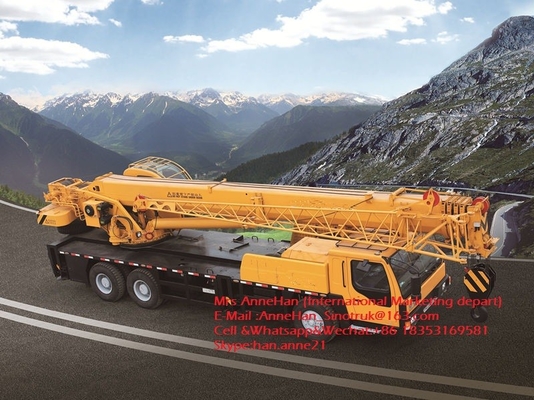

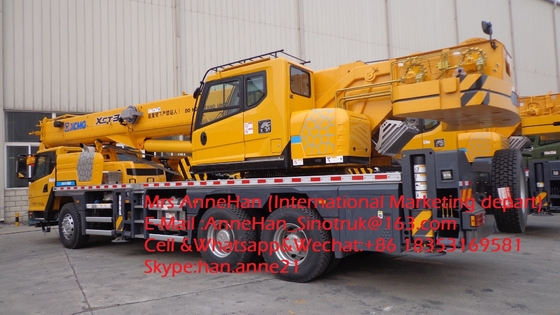

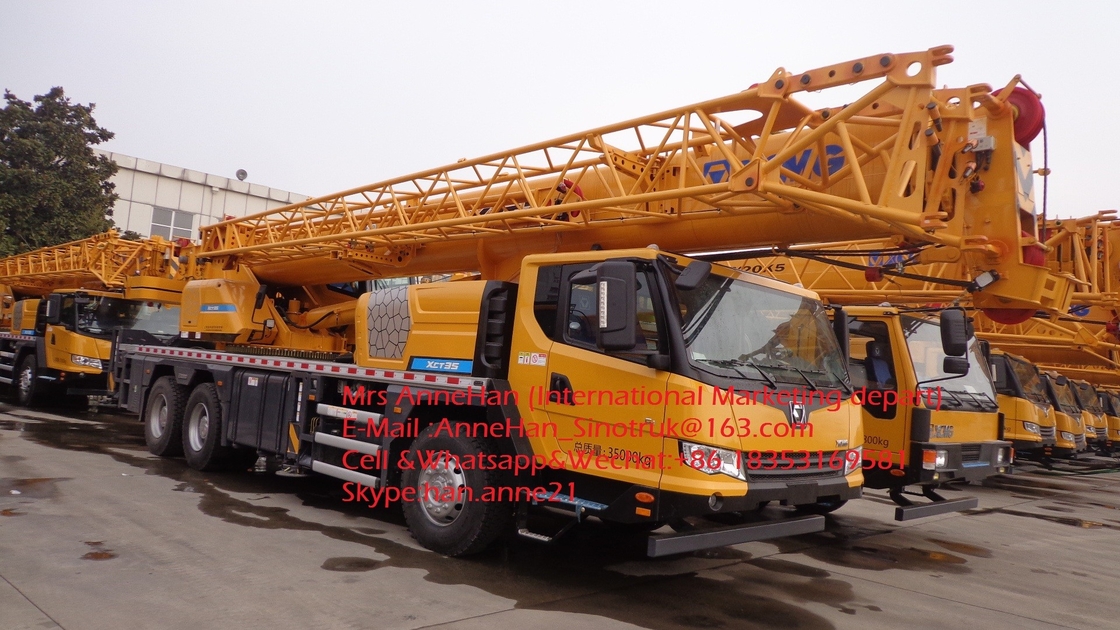

Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic

Large Image : Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic

Product Details:

Place of Origin:	china
Brand Name:	xcmg Truck Mounted Crane
Certification:	iso ccc
Model Number:	Qy50 Truck Mounted Crane

Payment & Shipping Terms:

Minimum Order Quantity:	1unit Truck Mounted Crane
Packaging Details:	nude
Delivery Time:	20days
Payment Terms:	L/C, T/T
Supply Ability:	200units/month

Contact Now

Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic

Description

Engine:	Weichai	Brand:	Xcmg
Condition:	New	Color:	Yellow
Product Name:	Truck Mounted Crane	Max. Travel Speed:	85km/h
Highlight:	telescoping boom crane , truck bed lift crane

Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic

Ⅰ.Main Technical Data Table in Travel configuration

Truck Mounted Crane

Description		Unit	Parameter value
Overall length		mm	13930
Overall width		mm	2780
Overall Height		mm	3630
Axle base	1st ,2nd axle	mm	1470
	2nd ,3rd axle		4300
	3rd ,4th axle		1350
Wheel Base		mm	2304+2075
Front overhang/rear overhang		mm	2389/2064or 2376/2064
Front extension/rear extension		mm	2131/226 or 2144/226
Total vehicle mass in travel configuration		kg	42200
Axle load	Front axle	kg	16200
	Rear axle		26000
Engine Model			WD615.338
Engine rated power		kw/(r/min)	276/2200
Engine rated torque		N.m/(r/min)	1500/1300-1600
Max. travel speed		km/h	85
Min. steady travel speed		km/h	2~3
Min. turning diameter		m	24
Min. ground clearance		mm	327
Max. grade ability		%	42
Approach angle		°	19
Departure angle		°	15
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	40
Exterior noise level during acceleration traveling		dB (A)	≤88
Noise level at seated position		dB (A)	≤90

Ⅱ.Main Technical Data Table for Lifting Operation

Description				Unit	Parameter value
Max. total rated lifting capacity				t	50
Min. rated working radius				m	3
Turning radius at turntable tail				mm	3800
Max. load moment		Base boom		KN.m	2009
		Fully-extended boom			1129
Outrigger span		Longitudinal		m	6.1
		Lateral			7.1
Hoist height		Base boom		m	11.9
		Fully-extended boom			44
		Fully-extended boom + Jib			58.1
Boom length		Base boom		m	11.4
		Fully-extended boom			43.5
		Fully-extended boom + Jib			59.5
Jib offset angle				°	0, 15, 30
Time for boom raising				s	≤40
Time for boom extending fully				s	≤90
Max. slewing speed				r/min	≥2.0
Outrigger extending and retracting time	Outrigger		Extending	s	≤35
			Simultaneously
			Retracting		≤30
			Simultaneously
	Outrigger		Extending		≤40
			Simultaneously
			Retracting		≤35
			Simultaneously
Hoisting speed	Main winch		No load	m/min	≥130
(single line	Auxiliary winch		No load		≥130
Exterior noise level				dB (A)	≤118
Noise level at seated position				dB (A)	≤90

Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic 1
