Product Details:
|
| Name: | Howo Concrete Mixer Truck | Pump Brand: | Eaton |
|---|---|---|---|
| Motor Brand: | Eaton | Reducer Brand: | Bonfiglioli |
| Tank Volume: | 8~12 | Cab: | HOWO76 Or 79 |
| Axle: | 3 | ||
| Highlight: | concrete agitator truck,mix concrete truck |
||

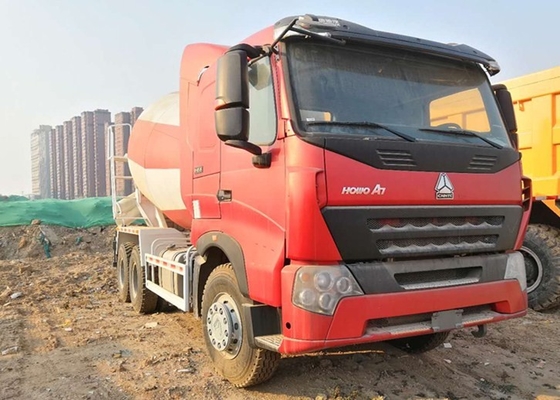

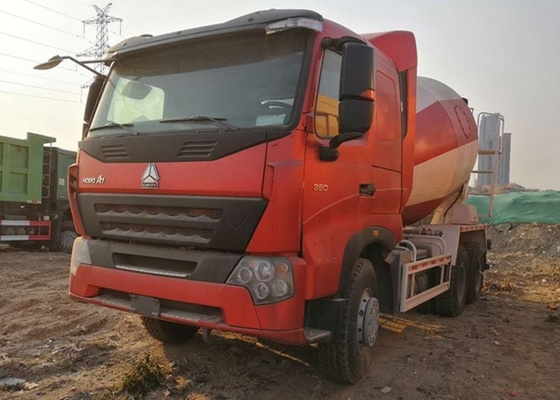

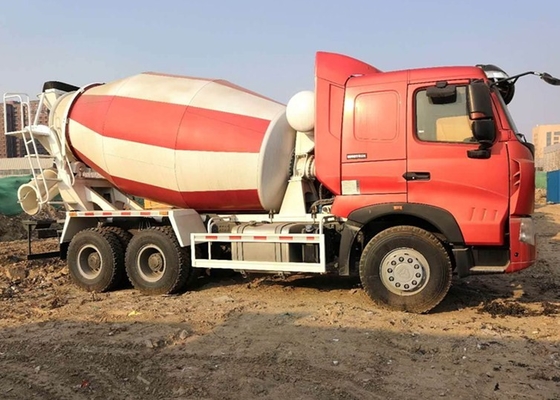

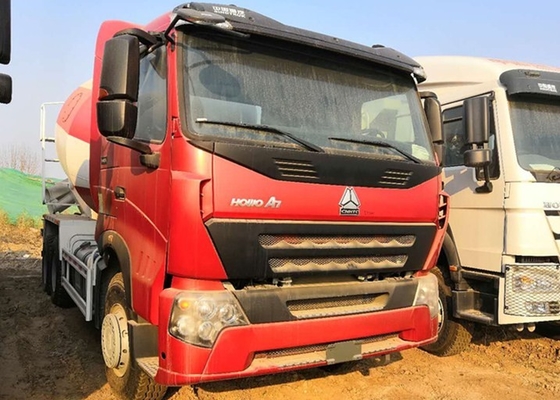

Big Horsepower Commercial Cement Mixer 6 X 4 Type Three Axle Eaton Motor
Parameter
| Chassis Model | ZZ1257N4347P1 |
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission |
HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle |
HF9, 1x9000 KGS Steering with doubleT-cross section beam |
| Rear Axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension: 10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 315/80R22.5, tubeless tyres with one spare tyre |
| Fuel Tank | 300L |

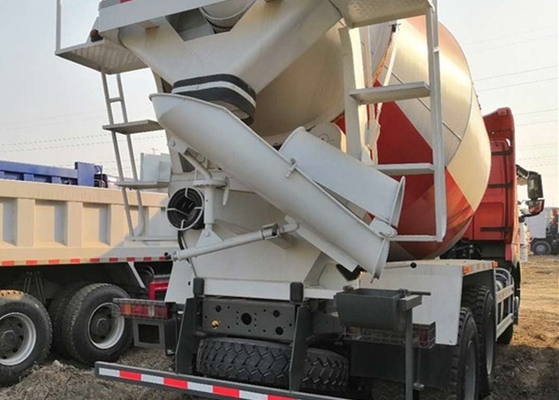

| Mixer Body |
Tank Body: 8 Cubic Meters Mixer Pump: Eton (USA Brand) Motor: Eton (USA Brand) Speed Reducer: Bonfiglioli (Italy Brand) |
| Overall Dimension | 9000*2550*3950 mm |
