Product Details:
|
| Mixing Capacity: | 3-12M3 | Engine: | 130hp- 375hp |
|---|---|---|---|
| Dimension: | 9100×2500×3900 (mm) | Total Mass: | 25000 (kg) |
| Rated Payload: | 11870 (kg) | Axle Load: | 7000/18000 |
| Highlight: | concrete agitator truck,mix concrete truck |
||

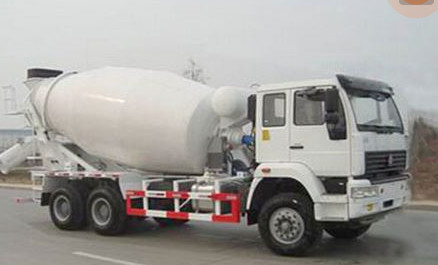

ZZ1251N3841C 6x4 Sinotruk STEYR Concrete Mixer Truck 8cbm in Red Color ISO CCC Passed
Description:
1.SINOTRUCK STEYR series trucks own the elegant appearance, strong operation
system and excellent safety.
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC),
and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO,
STEYR, STEYR KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks,
tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers
tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse
power, and loading capacity cover from 5 tons to 50 tons.
Specifications:
Concrete Mixer Truck
Mixing capacity: 3-12M3
engine: 130hp- 375hp
chassis brand: Dongfeng, North-benz, CAMC, etc...
| Steyr6*4 concrete mixer truck | |||
| Model | Steyr6*4 mixer truck | Dimension | 9100×2500×3900 (mm) |
| Chassis type | ZZ1251N3841C | Cargo body size | ×× (mm) |
| Total mass | 25000 (kg) | Appearance / departure angle | 25/20 (°) |
| Rated payload | 11870 (kg) | F/R suspension | 1320/2680 (mm) |
| Kerb weight |
13000 (kg) |
Maximum speed | 80 (km/h) |
| Engine | WD615.95 WD615.95E | ||
| Displacement | 9726 9726 (ml) | Power | 247 247 (kw) |
| Manufacturer | China Heavy Duty Truck Group Co., Ltd | ||
| Emission standard |
GB17691-2005 |
||
| Number of the axles | 3 | Front tread | 2047,1995 (mm) |
| Wheel base |
3750+1350 (mm) |
Rear tread | 1820/1820,1850/1850 (mm) |
| Number of the tires | 10 | Tire type | 11.00-20,11.00R20 12.00-20, 12.00R20 |
| Fuel type | Diesel | Number of the springs | 12/12 |
| Axle load | 7000/18000 | Cab Passengers | 2 |
| Notes | Mixing drum effective volume: 5 cubic meters; | ||
