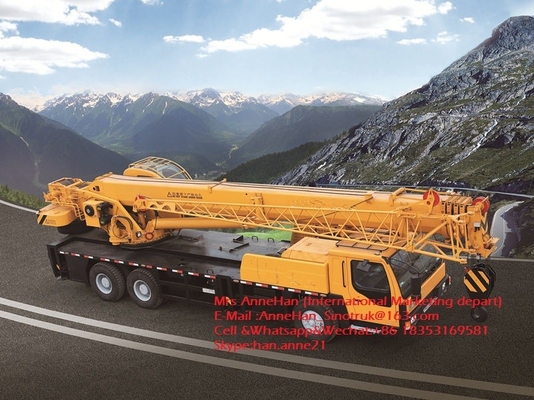

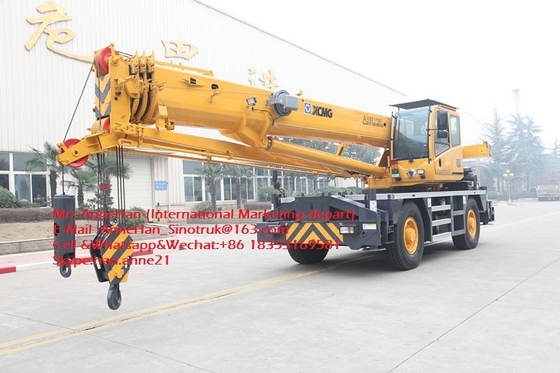

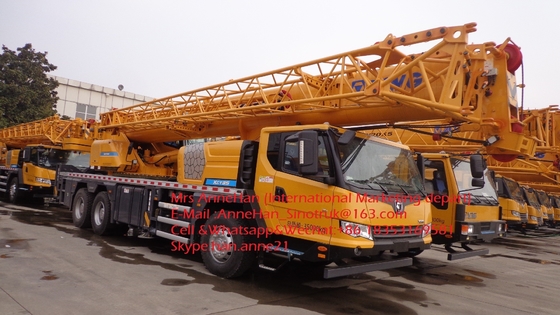

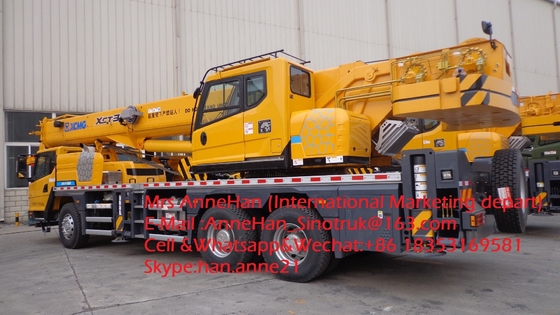

All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height

All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height
All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height

Large Image :  All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height

Product Details:
Place of Origin: Shandong China
Brand Name: truck mounted crane
Certification: ISO CCC
Model Number: QY35K5 truck mounted crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Bulk or RORO Ship
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 units per week

All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height

Description
Max. Total Rated Lifting Capacity: 16T Min. Rated Working Radius: 3M
Turning Radius At Turntable Tail: 4850mm Lifting Height: 14.3m
Boom Length: Fully Extended Boom 60m Product Name: Truck Mounted Crane
Highlight:

telescoping boom crane

,

truck bed lift crane

14.3m Lifting Height All Terrain type Truck Crane QY35K5​





Specification

Classificatory Item Unit Parameter

Main

performance

Max. total rated lifting capacity t 160
Min. rated working radius m 3
Turning radius at turntable tail mm 4850
Max. load moment Base boom kN.m 5282
Fully extended boom kN.m 2140
Outrigger span Longitudinal m 9.625
Lateral m 8.7(6.5)
Lifting height Base boom m 14.3
Fully extended boom m 56.3
Fully extended boom + Jib m 79
Boom length Base boom m 13.6
Fully extended boom m 60
Fully extended boom + Jib m 80
Jib offset ° 0,15,30



Working

speed

Boom elevating time Boom raising s 90
Boom telescoping time Boom full extension s 600
Boom full retraction s 600
Max. swing speed r/min 2
Hoist speed (single rope at 4th layer) Main winch No load m/min 120
Aux. winch No load m/min 110
Crane exterior noise db(A) ≤118
At seated position db(A) ≤90



Quick detail:

Condition: Brand New Fuel Type:Diesel

 Place of Origin:Shandong, China (Mainland)



Description:

We are specialized in heavy field for almost one decade, we have great experiences no matter in service and spare parts supply. So we are the credible partner for you.



Advantages

Wide cab

Five-segment U section boom

Single cylinder luffing and double-winch

Manual mechanical control

Spacious and luxury streamline cab

U boom system

Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.

Compact boom head

Extend the jib length, which can extend the working radius to the most.

Hydraulic pipeline

The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.

Operating cab

It has large space and wide views. The control levers and instrument buttons are at hand.

Torque limiter

The colorful LCD display of the torque limiter can shows all the important operating information.

Engine

Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.



Tag: motocrane/automobile crane/crane truck/crane car/truck crane AutohoistAll Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height 0All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height 1All Terrain QY35K5 Truck Mounted Crane Fuel Type 14.3m Lifting Height 2
