Product Details:
|
| Product Name: | Factory Directly HOMAN 4X2 Light Duty Semi Trucks EURO 3 130HP 11CBM 14T Payload | Cab: | 2080 Cabin With One Sleeper |
|---|---|---|---|
| Engine: | YC4D130-33 130PS | Transmission: | WLY653H / 6 Forword&1 Reverse |
| Body Dimension: | 4200×2200×(800+400)mm | Tyre: | 9.00R20 |
| Highlight: | light cargo truck,light dump truck |
||

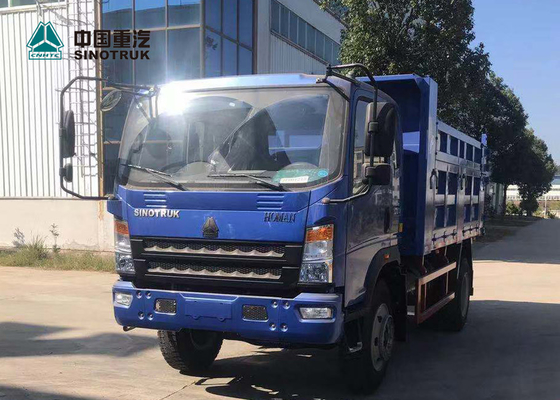

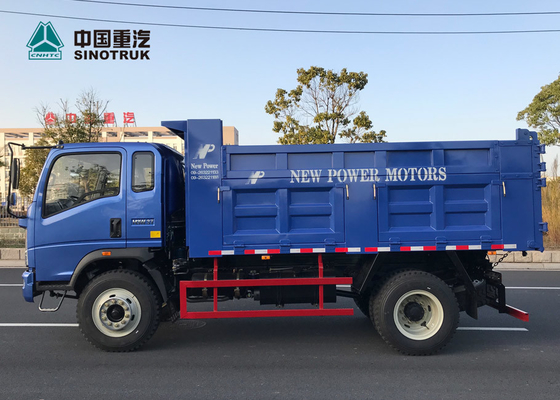

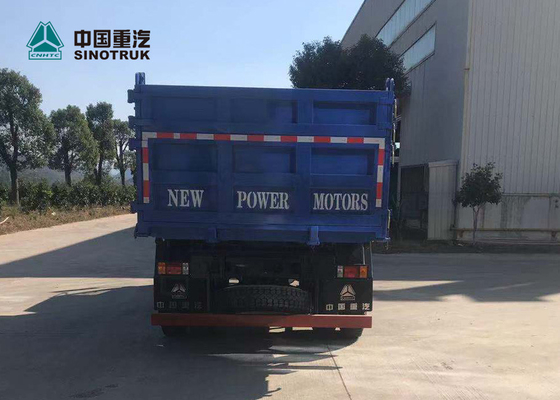

Factory Directly HOMAN 4X2 Light Duty Semi Trucks EURO 3 130HP 11CBM 14T Payload
|
|
| Model | ZZ3168E3614C1 | |
| Cabin | 2080 King Cabin, with two seats and one bed, with Air Conditioner | |
|
Engine |
Model | YC4D130-33 |
| Horse Power (Hp/rpm) | 130/3200 | |
| Max.Toruqe(Nm/rpm) | 480/2000-2200 | |
| Displacement L |
4.156
|
|
| Type | DIESEL, 4-cylinder in-line with water cooling, intercooling, 4-stroke direct injection diesel engine | |
| Transmission | WLY653H / 6 forword&1 reverse | |
| Front Axle | 1090N, Steering with double T-cross section beam | |
| Driving Axle | 1098D2, Pressed axle housing, central reduction with hub reduction, ratio: 6.833 | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 8.25R20 | |
| Fuel Tank Capacity (L) | 120L Diesel Tank | |
| Kurb Weight (kg) | 4600 | |
| Loading Capacity (kg) | 10,000 | |
| Gross Vehicle Weight (kg) | 16000 | |
| Overall Dimension(L*W*H)(mm) | 5970×2160×2650 | |
| Body Dimension(L*W*H)(mm) | 4200*2200*(800+400)mm | |
| Wheelbase(mm) | 3450 | |
| Max. Speed (km/h) | 75 | |
Competitive Advantage:
1.competive price, cost-effective
2.with all kinds of truck model, which can fulfil your requirements
3.all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4.using the high strength steel, make it has a long service life
5.The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6.excellant apperance of cabin, safety, reliable
7.quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10.low fuel consumption
11. strong enough engine
12.fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
