Product Details:
|
Product Name: | Heavy Duty Euro 2 371HP 6x4 10 Wheels 8CBM HOWO A7 Concrete Mixer Truck | Engine: | WD615.47 Euro 2 371hp |
---|---|---|---|
Transmission: | HW19710 | Front Axle: | HF9 |
Drive Axle: | HC16 | Body Volume: | 8cbm |
Highlight: | concrete agitator truck,mix concrete truck |
Heavy Duty Euro 2 371HP 6x4 10 Wheels 8CBM HOWO A7 Concrete Mixer Truck
Concrete Mixer Truck
Chassis Model | ZZ1257N3647N1 |
Driving Type | LHD (RHD is optional) |
Cabin | A7-W cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission |
HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
Front Axle |
HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension: 10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres | 315/80R22.5, tubeless tyres with one spare tyre |
Fuel Tank | 300L |
Mixer Body |
Tank Body: 8 Cubic Meters Mixer Pump: Eton (USA Brand) Motor: Eton (USA Brand) Speed Reducer: Bonfiglioli (Italy Brand) |
Overall Dimension | 9000*2550*3950 mm |

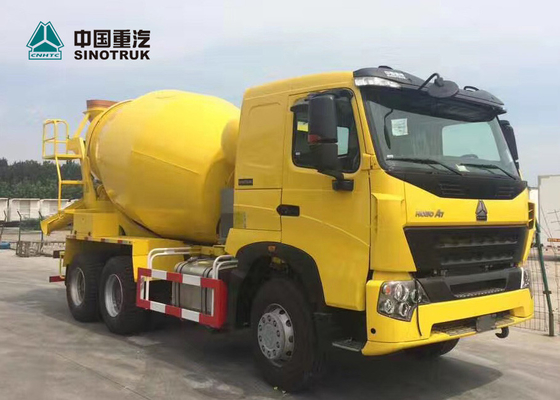

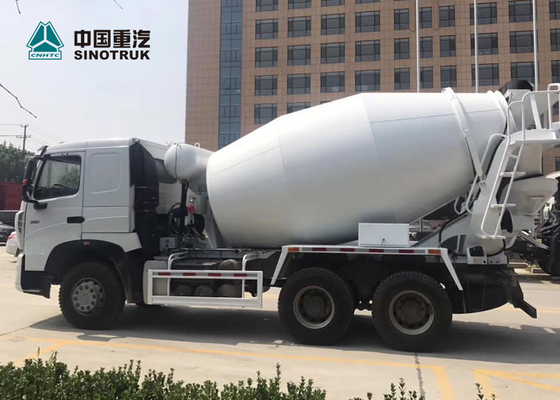

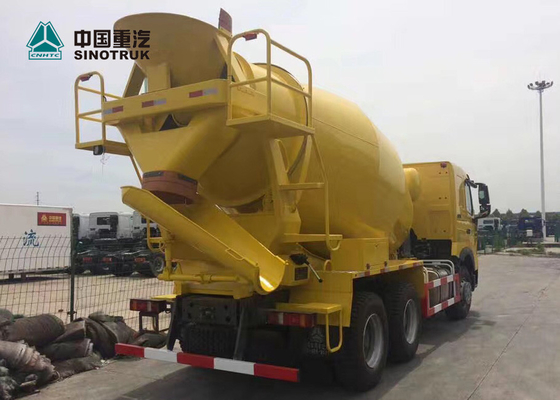

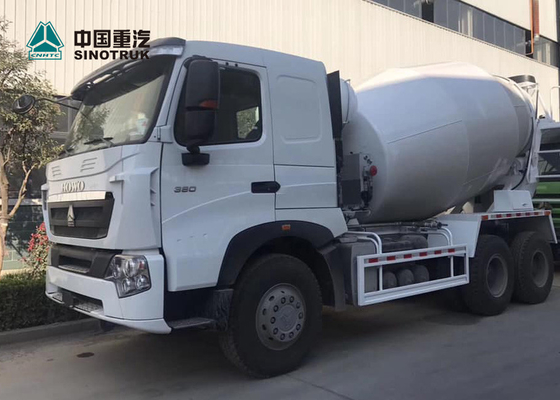

Concrete Mixer Truck Pictures:
Concrete Mixer Truck Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
