Product Details:
|
| LOADING CAPACITY: | 3-4ton | Engine Model: | SD490ZL,EuroⅡemission Standard |
|---|---|---|---|
| Displacement: | 2.545L | Driver’s Cab: | Single Cab |
| Overall Dimension(L X W X H Mm): | 5995×2000×2450 | Body Size: | 4200×1900×400 |
| Highlight: | light cargo truck,light dump truck |
||

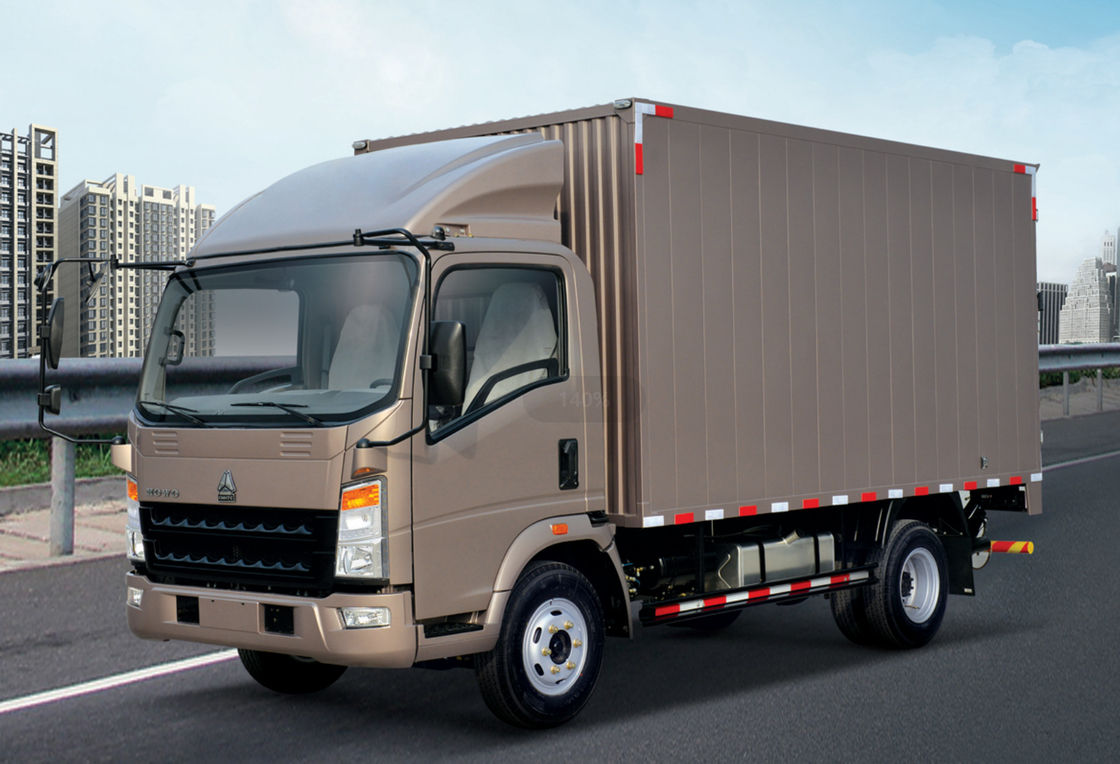

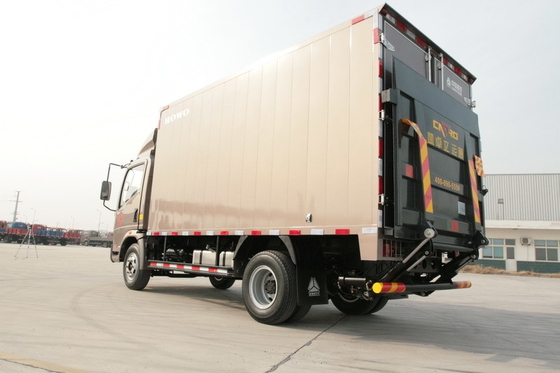

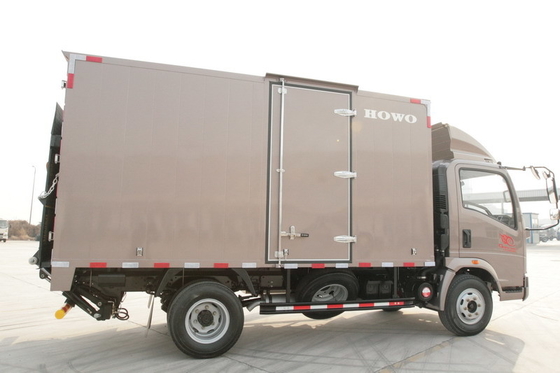

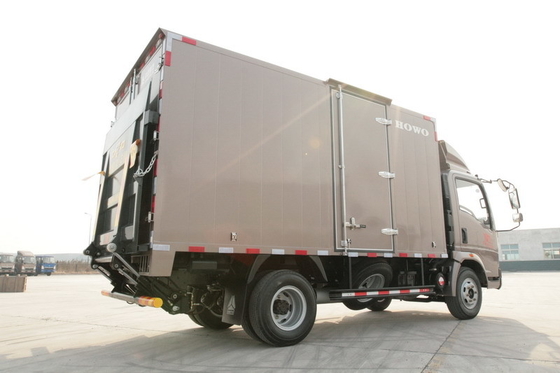

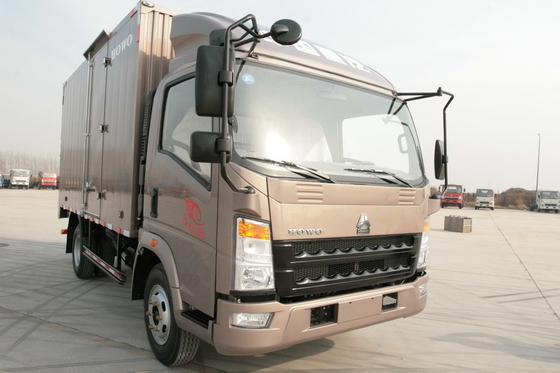

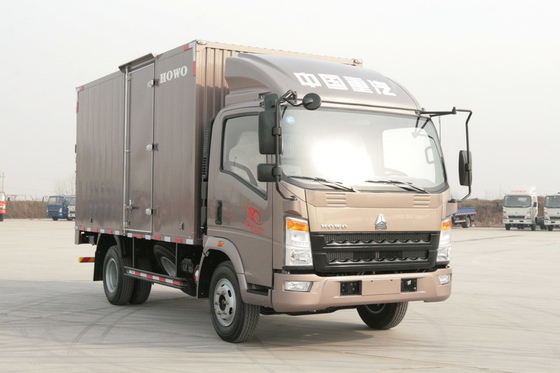

HOWO light truck 4x2 Specifications
Model ZZ1047D3413C145/F5B-0490BJ17D2035L
Specification:
|
Engine
|
Manufacture: STAR Co. Diesel:4-stroke direct injection diesel engine Engine model: SD490ZL,EuroⅡemission standard 4-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output:82 HP(60Kw)at 3200 rpm according to DIN Maximum torque:206 Nm at 2000～2200 rpm Number of cylinder:4 Displacement:2.545L Bore:90mm Stroke: 100mm Compression ratio: HP/L Specific fuel consumption:220g/Kwh Thermostat with 71℃ temperature saver Rigid fan
|
| Clutch | Single-plate diaphragm spring clutch, diameter 300mm,hydraulically operating |
| Transmission |
DC transmission, model HW35505TCL,synchromesh,5 forward & 1 reverse Ratio: 5.579 2.844 1.634 1 0.794 5.011 (R) |
| Front Axle |
VGD020QB, forging forming of front axle I-beam, to guarantee the stiffness and high strength.
|
| Rear Axle |
HGC035QB,mature punching welding axle and pressed axle housing Ratio:5.857 |
| Chassis |
Frame :U-profile parallel ladder frame with section of 170×60×5 mm, all cold riveted cross members Front suspension: 11 leaf springs ,shock absorbers and stabilizer Rear suspention:9 main leaf springs+7 vice leaf springs, Spare wheel carrier: with one spare wheel Fuel tank: 80 L capacity
|
| Steering |
LG9704470020,hydraulic steering with power assistance Ratio: 18.85:1 |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on rear wheels (optional) Auxiliary brake: engine exhaust brake (optional)
|
| Wheels & Tyres |
Rims: 5.50F-16,6hole-steel Tyres: 6.50-16tube Option:6.5R16 tube tubeless
|
| Driver’s Cab | Single cab, 45° hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds, adjustable driver’s seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn. |
| Electrics |
Operating voltage:24 V, negative grounded Starter:24 V,4.5Kw Batteries:24 V,80Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
|
| Instrument Panel |
Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure.
|
| Dimensions in mm |
Wheel base 3360 Front wheel track 1605 Rear wheel track 1520 Front overhang 1160 Rear overhang 1475 Approach angle(°) 20 Departure angle(°) 18 Overall dimension(L x W x H mm) 5995×2000×2450 Body size 4200×1900×400
|
| Weight in kg |
Load weight(kg) 2000 Dead weight(kg) 2900 Gross vehicle weight(kg) 4900 |
| Performance |
Maximum driving speed(km/h) 90 Maximum grade ability(%) 30 Maximum ground clearance(mm) 210 Maximum turning circle(m) 14 Fuel consumption(1/100km) 10.1
|
