Product Details:
|
| Material: | Steel | Color: | White |
|---|---|---|---|

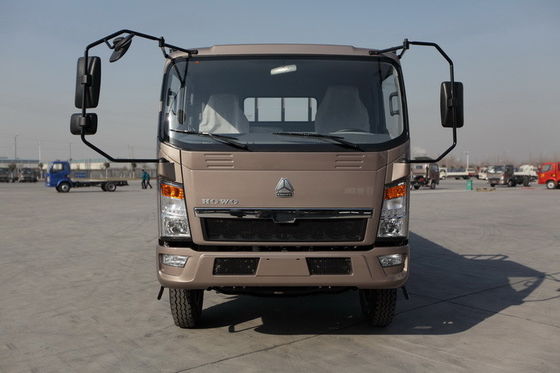

| Product Name: | HOWO Light Duty Commercial Trucks | Brakes: | Dual Circuit Compressed Air Brake |
| Driver’s Cab: | Single Cab With A Sleeper | Electrics: | Operating Voltage:24 V, Negative Grounded |
| Highlight: | light cargo truck,light dump truck |
||
Payment term for 4x2 light truck:
(1) by 30% T/T in advance, 70% paid before delivery.
(2) by 30% T/T in advance, 70% irrevocable L/C at sight by famous bunk.
(3) by 100% irrevocable L/C at sight by famous bank.
(4) or payment term you want.
Shipment for light truck:
(1) Port: any port you want.
(2) Delivery Period: within 35 work days after receiving 30% deposit or irrevocable L/C at sight.
(3) Packaging Detail: nude packing with liquid wax on trucks body or according to your requirements.
(4) Mode of Shipment: Ro-Ro Ship or Bulk Ship.
Specification:
ZZ1127G4515C1/N1W-4110BY23D3282L
Engine | |
| Clutch | Single-plate diaphragm spring clutch, diameter 350 mm, hydraulically operating |
| Transmission | DC transmission, modelDC6J65,synchromesh,6 forward & 1 reverse Ratio: 6.719 4.031 2.304 1.443 1 0.74 6.122 (R) |
| Front Axle | 3.2t, forging forming of front axle I-beam, to guarantee the stiffness and high strength.
|
| Rear Axle | 8.2t,mature punching welding axle and pressed axle housing |
| Chassis | Front suspension: 9 leaf springs ,shock absorbers and stabilizer Rear suspention:11 main leaf springs+7 vice leaf springs, Spare wheel carrier: with one spare wheel Fuel tank: 160 L capacity |
| Steering | LG9722470090,hydraulic steering with power assistance |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on rear wheels (optional)
|
| Wheels & Tyres |
Rims: 6.50-20(7.00T-20),6 hole-steel Tyres:8.25-20 tube Option:9.00-20 tube, 8.25R20tube, 9.00R20tube |
| Driver’s Cab | Single cab with a sleeper, 45° hydraulically tilt able to the front,2-arm windscreen wiper system with three speeds, adjustable driver’s seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn. |
| Electrics | |
| Instrument Panel | |
| Dimensions in mm | Rear wheel track 1764 |
| Weight in kg |
Dead weight 4410(kg) Load weight 10000(kg) |
| Performance |
Maximum driving speed(km/h) 95 |
What you can get from us
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the time.
5. You can know the advance overseas technology from our products. Which bring you more
competitive advantages.
