Product Details:
|
Capacity (Load):: | 61 - 70t | Emission Standard:: | Euro 2 |
---|---|---|---|
Dimensions (L X W X H) (mm):: | 8700x3000x3205 | Cab:: | HW7D, One-side Cab, A/C, LHD |
Transmission:: | HW19710, 10 Speed, 10 Forward | Rear Axle:: | AC16, Option:HC16 |
Horsepower:: | 351 - 450hp | Gross Vehicle Weight:: | 50000 |
Highlight: | underground dump truck,mining tipper trucks |
Hot Sale HOWO 6x4 Mining Dump Truck/Mineral Dumper Truck
------Advantages:
1) IS9000, 3C and TS16949 certificate
2) High quality and competitive price
3) Professional technology
4) MAN/STERY driving axle
5) HOWO400L, D-Aluminum alloy fuel tank
6) Strong chassis for rough road
------Details:
1)HOWO Mine Overlord is a heavy-duty mining self-dumping truck produced based on CNHTC Mine Overlord for various open pits, steel works, water and power supply construction sites and harbors, braving poor roads and harsh working environment for short distance transport, especially suitable for mining and rock excavation.
2)The chassis features in high strength skeleton cover, single side cab, high-power diesel engine and low temperature heating device convenient for starting and cab heating in winter.
3)The upper structure is made of high quality 16Mn and high tensile steel plate locally. The bottom plate consists of 7 longitudinal beams, very high in loading capacity.
4)The cab shield is in streamline design effectively protecting the cab for safety. The whole vehicle is rational in structure and high in impact resilience. Hova172 system is known for high lifting power, stable and reliable.
------Parameter:
Machinery name | Hot Sale HOWO 6x4 Mining Dump Truck/Mineral Dumper Truck |
Driving type | 6×4 |
Chassis No | HOWO 6x4 Mining Dump Truck |
Cabin | HW7D 53° tiltable with A/C and sleeper |
Brand | SINOTRUK HOWO |
Dumpbody dimensions (L×W×H)mm | 8700x3000x3205 |
Wheel base(mm) | 3800mm+1400 |
Tare weight(kg) | 12000kg |
Rated loading weight (kg) | 58000kg |
Front axle | HF10 Beam boxing type front axle |
Rear axle | AC16(cast steel 2×26ton hub-reduction axle),cross-axle diff locks and inter-axle diff locksSpeed ratio :6.5 |
Axle load | 1x69602x10300 |
Max.Driving speed(km/h) | 75 |
Engine Type | 4 stroke, direct injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling |
Engine Model | WD615.96C |
Nominal power kw/(r/min) | 360kw; 380hp |
Maximum torque Nm/(r/min) | 1500/1200~1500 |
Emission standard | 9.726L |
Gearbox | HW19710+HW70 |
Clutch | Diaphragm spring clutch, diameter 430mm |
Brakes | Service brake: dual circuit compressed air brake; Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
Steering gear | ZF8098, left(right is alternative), hydraulic steering with power assistance |
Forward gears transmission ratio | 14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.8; 1.34; 1 |
Reverse ratio | 13.91; 3.18 |
Electric system | HOWO electric system-minus,24V, minus earth |
Fuel tank(L) | 500L |
Tire | 14.00-25NHS,1000±10kPa |
Front suspension | 1500mm; Half the elliptical leaf spring with shock absorber cavitation |
Rear suspension | 1000mm; The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt |
Color | Red, white, green, yellow, gray and so on |

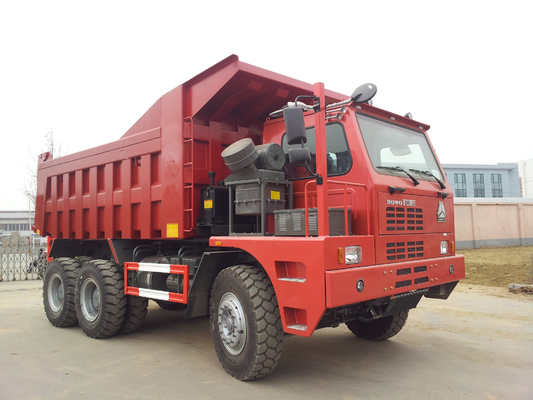

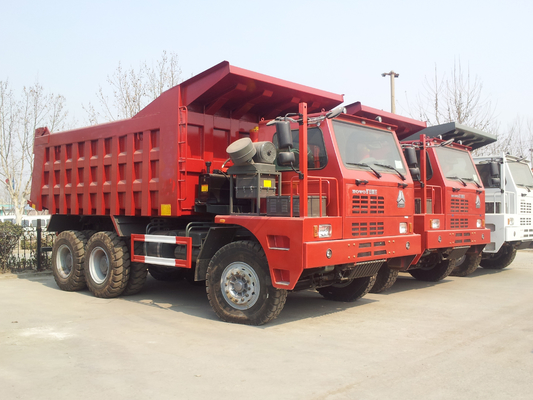

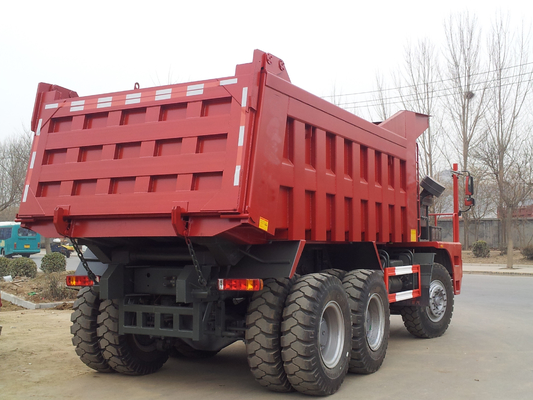

------Pictures:
