Product Details:
|
| Capacity (Load):: | 61 - 70t | Emission Standard:: | Euro 2 |
|---|---|---|---|
| Drive Wheel:: | 6x4 | Dimensions (L X W X H) (mm):: | 8600x3326x3450 |
| Drving Axle:: | AC26 26 Tons Ratio: 10.47 | Horsepower:: | 351 - 450hp |
| Tyres:: | 14.00-25 Bias Tyres 36 Layers | Product Name: | HOWO 70T Mining Dump Truck |
| Highlight: | mining tipper trucks,coal dump truck |
||

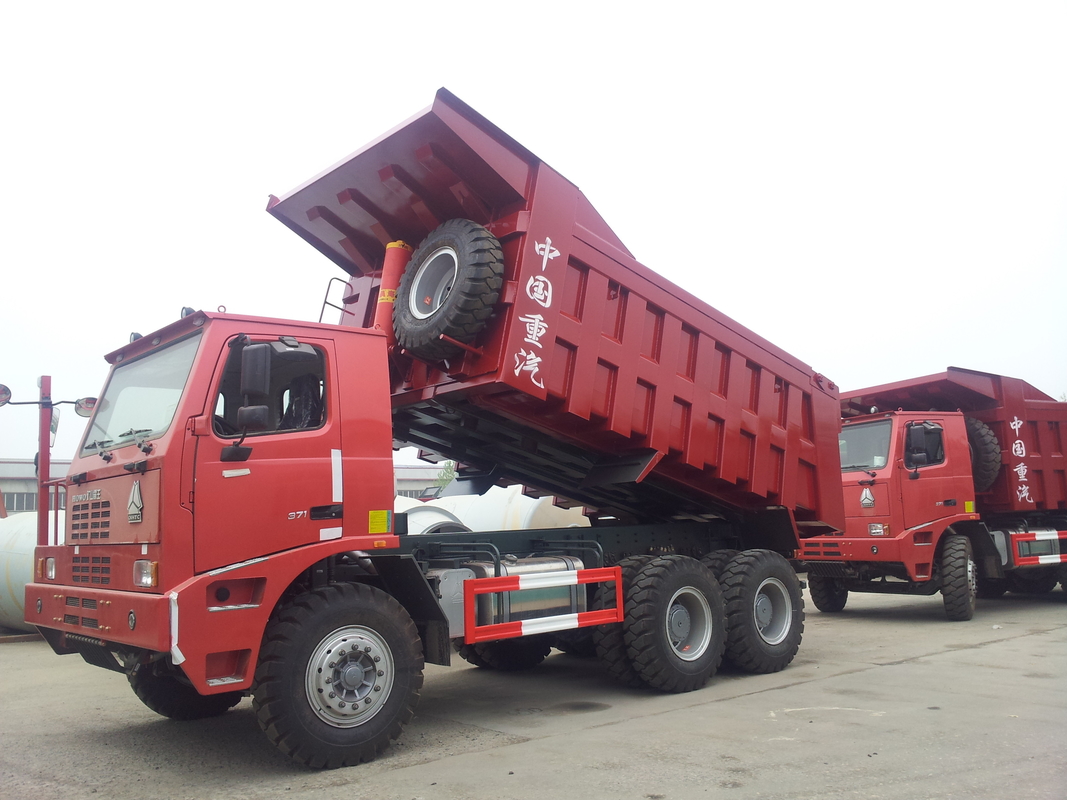

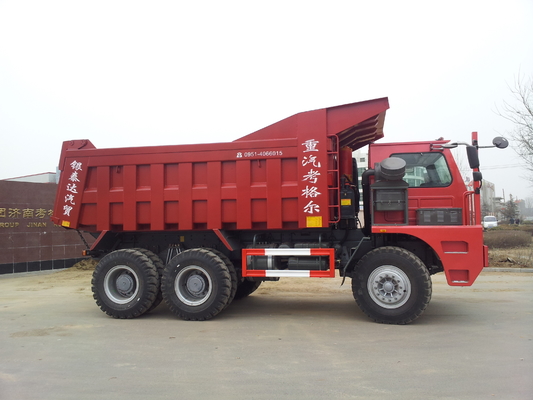

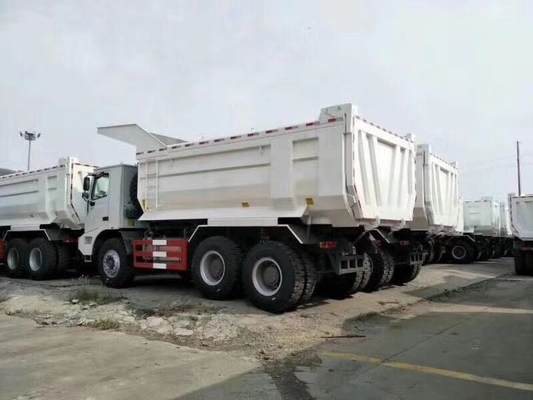

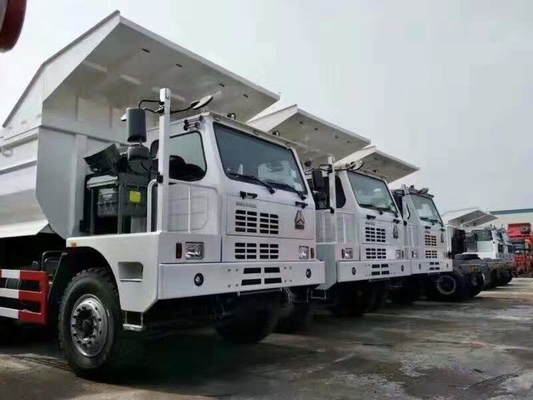

SINOTRUK HOWO 6×4 70 MINING KING Tipper/dump trucks
Loading Capacity: 70 Tons.
work in Mining operation. 10 years lifetime.
Contact Person: Michelle Mobile: +86-18653171260
| SINOTRUK HOWO 6×4 70 MINING KING Tipper LHD | |
| Model: ZZ5707S3640AJ | |
| Cabin: HW7D cab, air conditioner,heater, rigidity adjustable seats, abat vent, frame style, large plat and single side steel cab with wide vision and good anti-pounding capacity, double hydraulic lock, hydraulic front lifting 50°. | |
| Engine:WD615.47 371 HP Euro II | |
| Gear Box: HW19710 10 speed 10F/2R | |
| Steering: ZF8098 | |
| Fron Axle: HF12 | |
| Driving Alex: AC26 26 tons Ratio: 10.47 | |
| Tyre: 14.00-25 bias tyres 36 Layers | |
| Cargo Body Size: 5800x3100x1700 mm | |
| Suspension: enhanced suspension | |
| Thickness of steel: Floor 16mm, side 14mm Rectangle dump carriage with rear sheet, H1250 plate material, floor 16mm, side 14mm, rear five sheets of longitudinal beams, Front Lift, Hongchangtianma 195 lifting cylinder.U shape bucket. |
|
| Hydraulic Lift of Carriage:HongchangTianma 195 cylinder, front lifting. | |
| English panel | |
| no Sleeper | |
| Wheelbase:3600+1500 mm | |
| With Safty Belt | |
| Colour: red, yellow, green, blue, white | |
