Product Details:
|
| Size:: | 6800mm*2500mm*3150mm | Emission Standard:: | Euro 2 |
|---|---|---|---|
| Product Name: | Tractor Truck | Engine:: | WD615.47 371HP |
| Front Axle:: | HF9 | Rear Axle:: | HC16 |
| Highlight: | tractor trailer truck,tractor head truck |
||

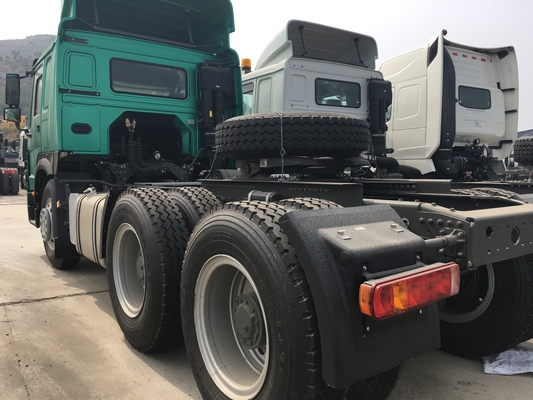

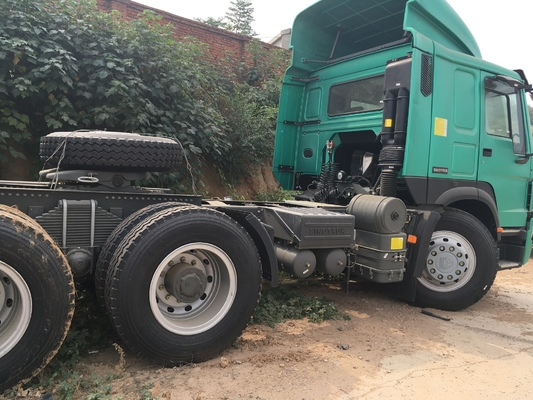

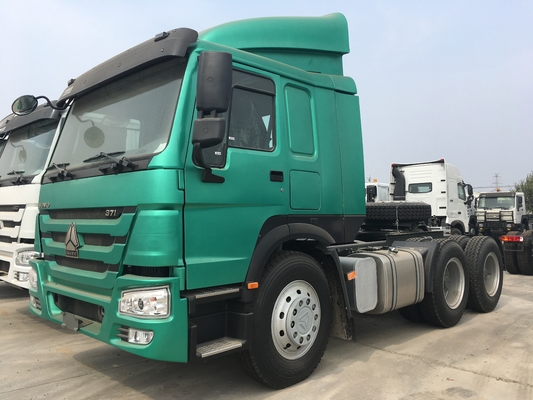

371hp for SINOTRUK HOWO 6*4 tractor truck in White Color Diesel Engine
| Model | ZZ4257S3241W | |
|
Engine
|
Make:SINOTRUK Engine model: : WD615.47, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling Maximum output: 371hp(273Kw) at 2200 rpm according to DIN Maximum torque: 1500Nm at 1100~1600 rpm Bore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio: 17:1 Specific fuel consumption: 195g/kWh; Engine oil filling quantity: 23L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature:80oC Twin cylinder air compressor Visco fan Option: Thermostat with 71 oC opening begin |
|
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance | |
| Transmission |
model HW19710, 10 forward and 2 reverse Ratio:14.36 10.66 7.88 5.82 4.38 3.28 2.44 1.80 1.33 1.00 14.01(R1) /3.2(R2) |
|
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9 drum-type rated load of 9tons | |
| Rear Axles | HC16 double reduction (central reduction + wheel reduction),speed ratio: 5.73;4.8 | |
| Chassis |
Frame: U-profile parallel ladder with section of 320×90×8mm , riveted cross members Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer Fuel tank: with one 400 L fuel tank with locking fuel cap Spare wheel carrier: with one spare tyre Fifth wheel size: 2 inch Option:3.5 inch |
|
| Steering | ZF8118, steering gear , ZF steering gear, zf steering oil pump, system pressure 21Mpa | |
|
Brakes
|
Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS |
|
| Wheel & Tyres |
Rims: 8.5-20,10 hole-steel Tyres: 12.00-20 Tube Option: 11.00-20 tube 12.00R20 Tube, 12R22.5 tubeless, 315/80R22.5 tubless |
|
| Driver’s cab | High cab, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, double berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt. | |
| Electrics |
Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 3-phrase, 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Dimensions in mm |
Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension |
3200+1400 2022 1830 1500 820 16 46 6800×2496×3668 |
| Weight in kg |
Dead weight Rated loading capacity at fifth wheel Gross vehicle weight Gross combination weight Front axle loading capacity Rear axle loading capacity |
9210 15660 25000 70000 9000 16000×2 |
| Performance |
Maximum driving speed(km/h) Maximum gradability (%) Minimum ground clearance(mm) Minimum turning circle(m) Fuel consumption(L/100km) |
90 33 265 18.5 40 |
