Product Details:
|
| Fuel Type: | Diesel | Condition: | New |
|---|---|---|---|
| Gross Vehicle Weight: | 16000 | Size: | 8865x2500x3290 |
| Type: | Compactor | Transmission Type: | Manual |
| Drive Wheel: | 4x2 | Emission Standard: | Euro 2 |
| Color: | Request Customized | Warranty: | 1 Year |

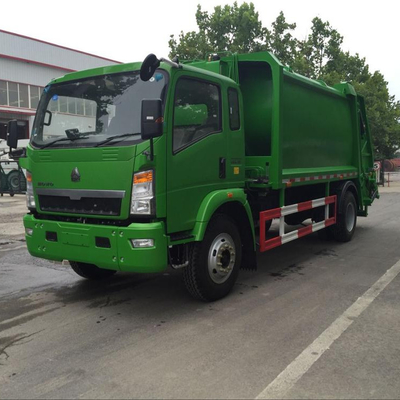

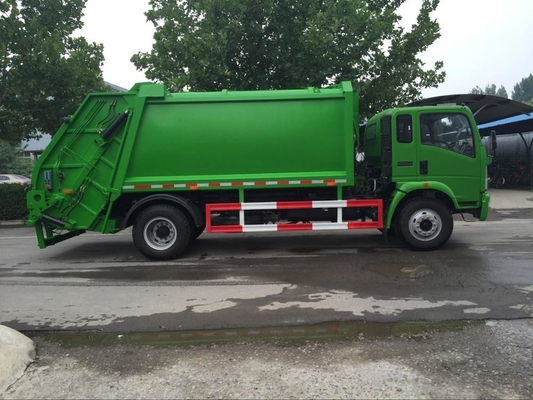

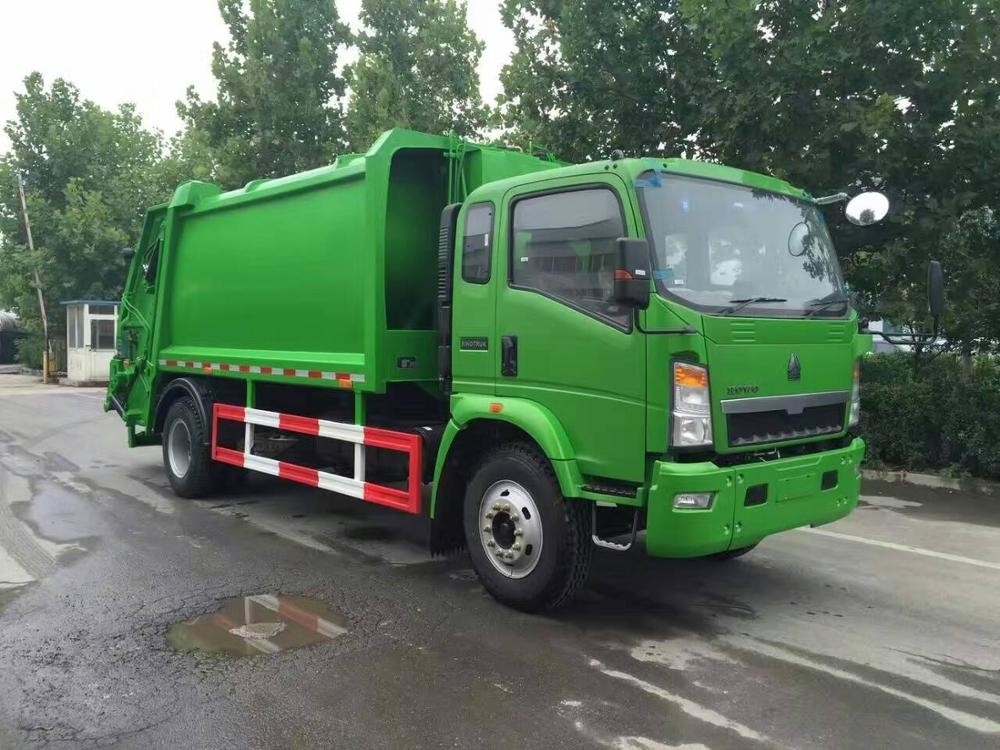

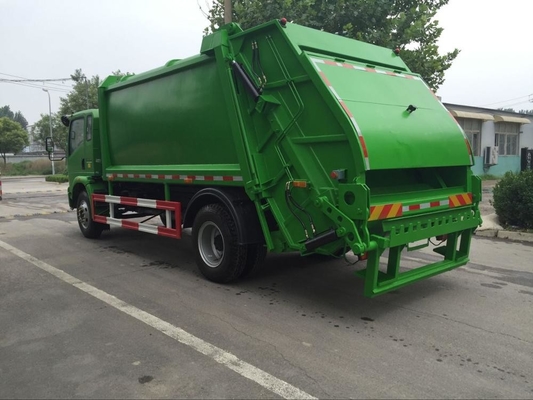

| Highlight: | 12m3 Garbage Compactor Truck,4*2 Garbage Compactor Truck |
||
1,chassis 2 ,box body 3 , discharging mechanism 4 .hopper 5 ,lift mechanism 6 ,compression mechanism 7 ,flex mechanism 8. charger mechanism 9, flex mechanism
| Chassis | ZZ1167M4611W |
|
Engine
|
Make: SINOTRUK Diesel:4-stroke direct injection diesel engine Engine model:WD615.62,EuroⅡemission standard 6-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output:266 HP(196KW)at 2600 rpm Maximum torque:1100 Nm at 1100-1600 rpm Number of cylinder :6 Displacement:9.726 L Bore:126mm Stroke:130mm Compression ratio:17.5:1 Specific fuel consumption:198g/KWh Engine oil filling quantity:19L Cooling system filling quantity(long-term filling):40 L Thermostat with 71℃ opening begin Single cylinder air compressor Rigid fan |
| Drive form | Left Hand Drive form |
| Clutch |
430C Pull type diaphragm spring clutch. Friction disk diameter: 430mm
|
| Transmission | HW13710, 10 forward & 2 reverse. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | HF7 |
| Rear Axle | ST13, Central single reduction, full-floating axle shaft, steel plate press-welding axle housing. |
| Chassis |
Frame :U-profile parallel ladder frame with section of 300×80×8 mm, all cold riveted cross members Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspention: 15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers Aluminum fuel tank: 300 l capacity with locking fuel cap, fitted to the off side of the chassis |
| Steering | ZF8098,hydraulic steering with power assistance. |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS |
| Wheels & Tyres |
Rims:8.5-20,10 hole-steel Tyres:295/80R22.5 |
| Electrics |
Operating voltage:24 V, negative grounded Starter:24 V,7.5Kw Alternator:28 V,1500 W Batteries:2×12 V,165Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light |
| Dimensions mm |
Wheel base:4600 Front wheel track:2022 / 2041 Rear wheel track:1850 Front overhang:1500 Rear overhang:2277 Approach angle(°):23 Departure angle(°):15 Overall dimension(L x W x H mm):8865x2500x3290 |
| Weight kg |
Dead weight:8840 Gross vehicle weight:19000 |
| Performance |
Maximum driving speed(km/h):90 Maximum gradeability(%):39 Minimum ground clearance(mm):298 Minimum turning circle(m):18.6 Fuel consumption(1/100km):26 |
| Body |
Volume of body(m3):12 Volume of filler(m3):2.2 Time of one filling cycle(s):≤30 Lifting time of filler (s):8-10 Time of discharge (s):≤55 Pressure of fluid system (Mpa):20 Front/rear sewage capacity (L):250+150 Max compression force (kg):>25000 |
