Product Details:
|
Tank Volume: | 15001 - 30000L | Drive Wheel: | 6x4 |
---|---|---|---|
Gross Vehicle Weight: | 25000 | Storage: | Water |
Transmission Type: | Manual | Dimensions (l X W X H) (mm): | 11184x2496x3215 |
Fuel Type: | Diesel | Condition: | New |
Horsepower: | 351 - 450hp | Color: | Customer's Require |
Engine Capacity: | 9.726L | Emission Standard: | Euro2/3/4/5 |
Driving Type: | 4x2 LHD/RHD | Engine: | WD615 |
Highlight: | 15000l Water Tanker Lorry,6x4 Water Tanker Lorry |
With 5-10% discount!
This truck is available!!
We can deliver on time!!!
Sinotruk sintex water tank prices For Sale
Production descreption
Truck Model | ZZ1257M5247 LHD | ||
Dimension(Lx W xH)(unloaded)(mm) | 11184x2496x3215 | ||
Tanker dimension | 9000×2340×1500 | ||
Tanker compartments | 25m3 | ||
Approaching angle/Departure angle(°) | 15/13 | ||
Overhang(front/rear) (mm) | 1320/2780 | ||
Wheel base (mm) | 4350+1350 | ||
Max speed(km/h) | 90 | ||
Curb weight(kg) | 12050 | ||
Engine
|
Model | WD615. water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |
Fuel type | Diesel | ||
Horse Power | 300HP, 336HP, 371HP | ||
Emission | EURO II, EURO III, EURO IV | ||
Fuel tanker capacity(L) | 300 | ||
Transmission | Model | HW15710 | |
Power take off | HW76 | ||
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Steering system | Model | ZF8098 hydraulic steering with power assistance | |
Front axle | HF9 | ||
Rear axle | HC16 | ||
Color | Can be choose | ||
Tyre | 12.00-20, 12.00R22.5, 12.00R20, 315/80R22.5 11 pieces(1 spare) | ||
Fender-guard | High position | ||
Electrical system | Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | ||
Cab | HW76 cab(one bunk, with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
Trade deails
*MOQ: 1 units.
*Port of shipments: Tianjin or Shanghai.
*Terms of payments: T/T or irrevocable L/C at sight.
*Supply ability: 2000 units per month.
*Delivery time: within 30 days after receiving deposites or irrevocable L/C.
*Packing: pack in nude, but antirust and could be suitable for long distance transportation.
Our service
1) One year quality assurance for three key parts: axles, engine, transmission.
2) Other spare part could be supplied by OEM at coast prices.
3) Regularly callback to know the vehicle's working status.
4) The overseas engineers are always ready to deal with unexpected needs.
5) All trucks and trailers are new and be customized to meet all your requirement.
6) All trucks and trailers are with 12 months quality guarantee.
7) CKD and SKD are available.
8) Technical support are provided.

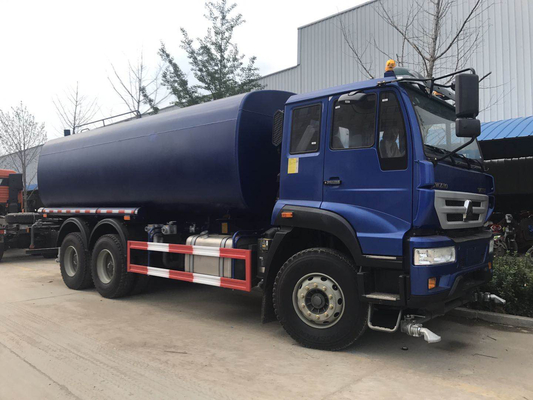

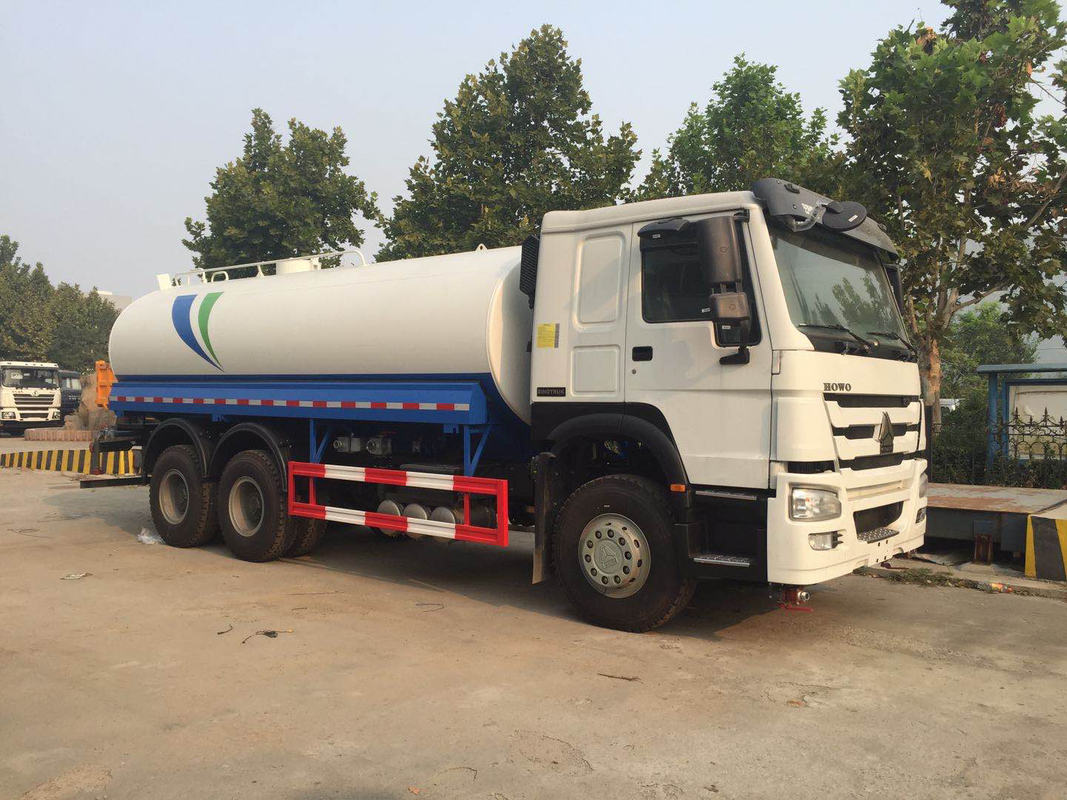

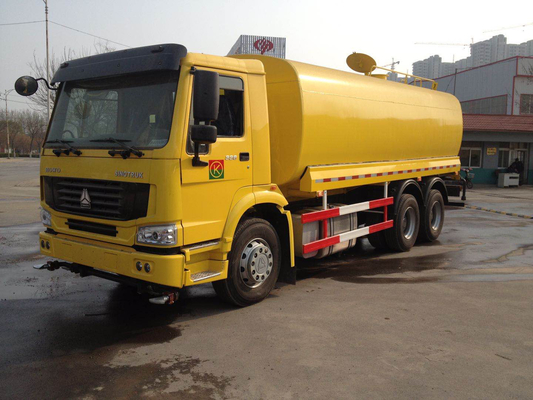

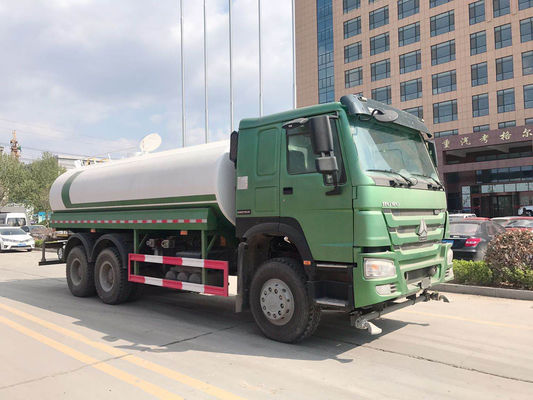

Production view
Delivery
Contact us
Contact Person: Mr. Jason Qi
Tel: +86 13805311175
Fax: 86-0531-87238633
