Product Details:
|
| Type: | 6*4 | Color: | Red |
|---|---|---|---|
| Drive Type: | LHD | Condition: | New |
| Power: | 371hp | Emission Standard: | EURⅡ |
| Engine Capacity: | > 8L | Brand Name: | SINOTRUK HOWO |
| Highlight: | sinotruk howo 6x4 dump truck,ZZ5707S3840AJ |
||

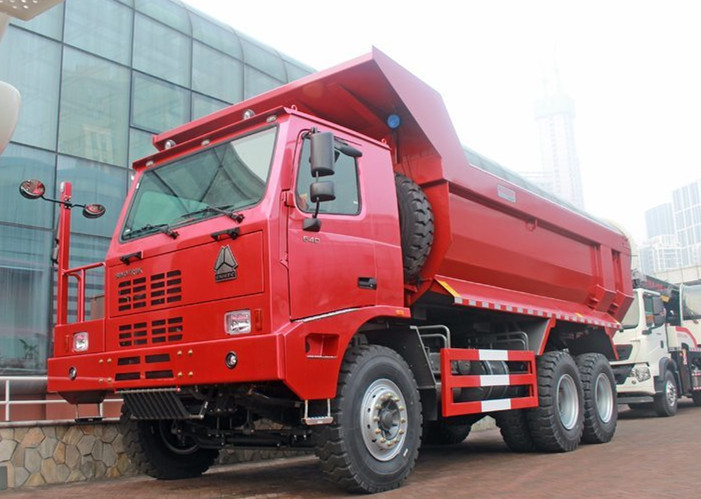

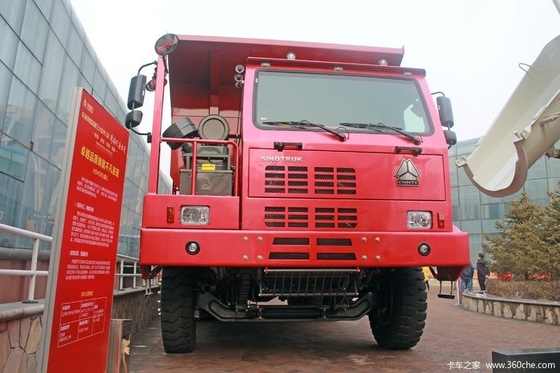

SINOTRUCK 70 TON HOVA 6X4 MINING DUMP TRUCK
Productions descreption
|
Product Name
|
SINOTRUK HOWO Mining Dump Truck
|
|
Chassis Model
|
ZZ5707S3840AJ
|
|
Driving Type
|
LHD (RHD is optional)
|
|

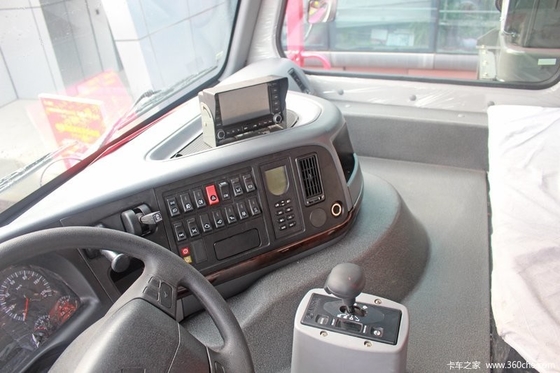

Cabin
|
HW7D cab, without sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
|
|
Engine
|
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
|
Transmission
|
HW19710, 10F & 2R, with PTO
Ratio:15.01, 11.67, 9.03, 7.14, 5.57, 4.38, 3.43, 2.67, 2.06, 1.63, 1.27, 1, 13.81(R1), 3.16(R2) |
|
Steering
|
ZF power steering, modol ZF8118, hydraulic steering with power assitance
|
|
Front Axle
|
HF12,1x12000 KGS
Steering with doubleT-cross section beam
|
|
Rear Axle
|
AC26, 2x26000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:10.47
|
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
|
Chassis
|
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
|
Brake
|
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
Electrics
|
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
Tyres
|
14.00-25, bias tire with one spare tire
|
|
Fuel Tank
|
500L
|
|

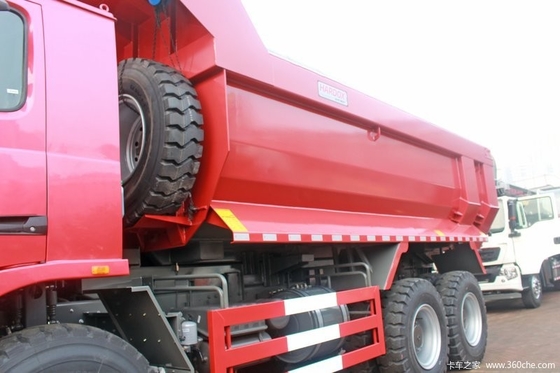

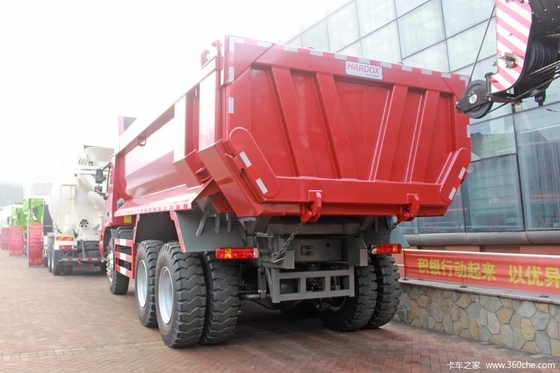

Cargo Body
|
5800*3100*1800mm, 32 CBM, Floor 18 mm and side 14 mm, HYVA Front Lifting System
|
|
Overall Dimension
|
9045*3200*3770 mm
|
Our service
Sinotruk is capable of developing and testing complete vehicles, engines, parts, material technologies and other all-round R&D and testing capabilities. It's equipped with various state-of-the-art and precision equipment in processing, experiment and testing, of which the equipment related to engine, complete vehicle, vibration of parts and strength testing, etc. have reached world class level...
Sinotruk has established good strategic partnership with many shipping companies which have professional logistics operation experience and are specialized in services for vehicle logistics, CKD, SKD, ect to meet different requirements of different customers.
First-class enterprise and first-class products can only be made with first-class R&D capability. Customer demand has always been the driving force of Sinotruk's change and innovation and the core of Sinotruk product research and development. Sinotruk R&D is devoted to providing tailor-made solutions for our customers.
Our company
Jinan Heavy Truck Import Export Co .,Ltd .is a professional heavy duty truck manufacturer inChina .We focus on the export and service of all kinds of heavy duty trucks ,machinery and original spare parts .
As a member of SINOTRUK ,our main products are SINOTRUK HOWO ,HOWO A7 ,T7H,STEYR ,STEYR KING ,GOLDEN PRINCE (SWZ10),HOKA ,HOHAN and HOVA brand series trucks ,including Head tractor trucks (Primemovers ),Dump trucks (Tippers),Concrete mixer trucks ,Bulk cement trucks ,Cargo trucks , Water /Oiltrucks ,Sprinkling trucks ,Garbage trucks ,Log carrier trucks ,All-wheel drive trucks ,Fire-fighting trucks ,Refrigerator trucks ,Crane Trucks ,Concrete Pump Trucks ,Semi-trailers ,tank trailers and so on . With good communication and services ,our company has exported our products to Nigeria ,Angola ,Ghana , Libya ,Cameroon ,Guinea ,Congo ,Mali ,Tanzania ,Ethiopia ,Algeria ,Sudan ,Egypt and other African countries ; Peru ,Chile ,Venezuela ,Colombia ,Brazil and Argentina in South America ;Ukraine ,Russia ,Tajikistan ,Kazakh - stan ,Thailand ,Philippines ,Malaysia ,Indonesia ,Pakistan ,Brunei and Bangladesh in Asia and other countries and regions .
Our company is located in Jinan City ,the capital of Shandong Province .Jinan is an old base of China's industry and an old industrial base ,which means that there are many industrial manufacturers in Jinan ,forming a chain of production ,without transportation costs .Adhering to the principle of " honestand trustworthy ",we promise to try our best to provide the most efficient services for worldwide customers .
