Product Details:
|
Horsepower:: | 290hp | Tank Volume:: | 15001 - 30000L |
---|---|---|---|
Dimensions (L X W X H) (mm):: | 10100*2496*2980 | Tire:: | 12.00R20 |
Cab:: | HW70/HW76/HW79 | Gross Vehicle Weight:: | 11060 |
Highlight: | howo water tank truck,20m3 Water Tank Truck |

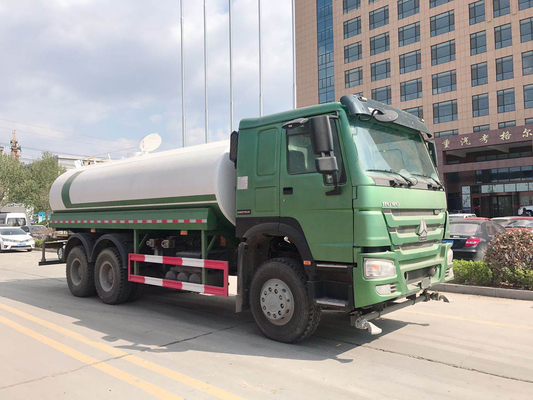

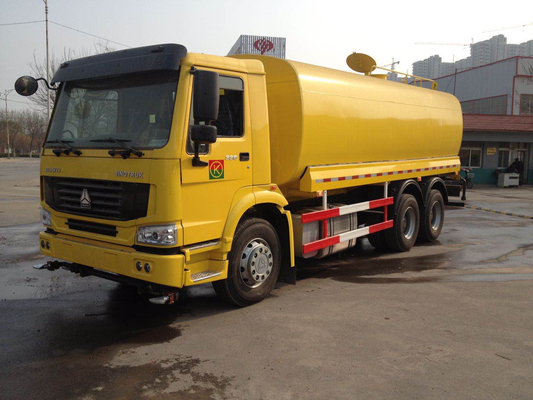

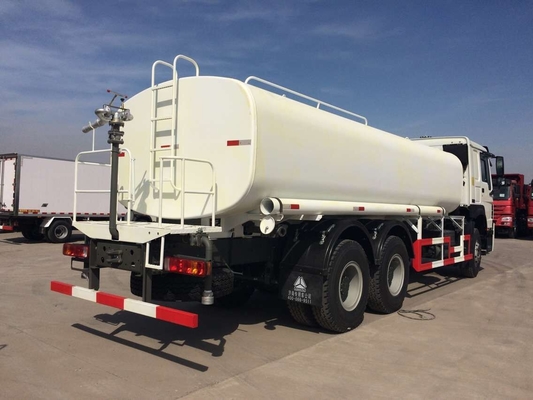

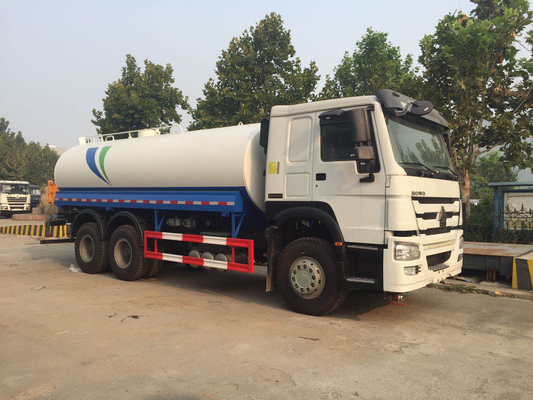

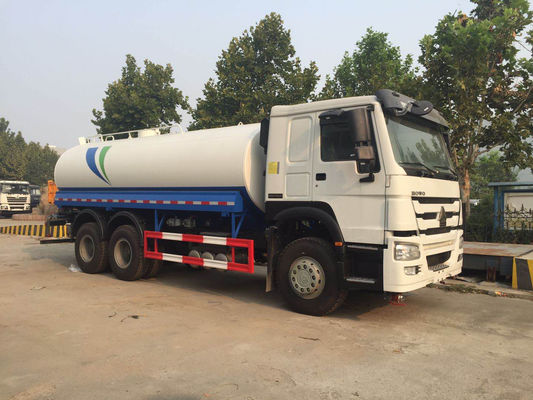

Sinotruk Howo 20m3 Drinking Water Tank Truck Dimension
Company Profile
Ji’nan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in
China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original
spare parts.
As a member of Sinotruk, our main products are Sinotruk Howo, Howo A7,T7H, Golden Prince,
Hoka, Hohan and Hova brand series trucks, including Head tractor trucks (Prime movers), Dump
trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water / Oil tank trucks,
Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,
Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola,
Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other
African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine,
Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and
Bangladesh
in Asia and other countries and regions.
Our company is located in Ji’nan City, the capital of Shandong Province. Ji’nan is an old base of China's
industry and an old industrial base, which means that there are many industrial manufacturers in Ji’nan,
forming a chain of production, without transportation costs. Adhering to the principle of "honest and
trustworthy",
we promise to try our best to provide the most efficient services for worldwide customers.
SPECIFICATION | ||||
Dimension(Lx W xH)(unloaded)(mm) | 10100×2496×2980 | |||
Water Tank Capacity(m³) | 20 | |||
Approaching angle/Departure angle(°) | 15/13 | |||
Overhang(front/rear) (mm) | 1500/2375 | |||
Wheel base (mm) | 4600+1350 | |||
Max speed(km/h) | 102 | |||
Curb weight(kg) | 11060 | |||
Engine(Steyr technology, made in China) | Model |
WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
||
Fuel type | Diesel | |||
Power, max(kw/rpm) | 290HP | |||
Emission | EUROII | |||
Fuel tanker capacity(L) | 400L aluminum oil tank | |||
Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system | Model | ZF8118 | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||
Tire | 12.00R20 | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
Cab | HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
