Product Details:
|
Transmission Type: | Manual | Usage: | Swing Arm Type, Compression Type |
---|---|---|---|
HS Code: | Diesel | ||
Highlight: | 10cbm Swing Arm Garbage Collection Truck,Compressed Skip Garbage Collection Truck,15 Cbm Heavy Duty Truck |

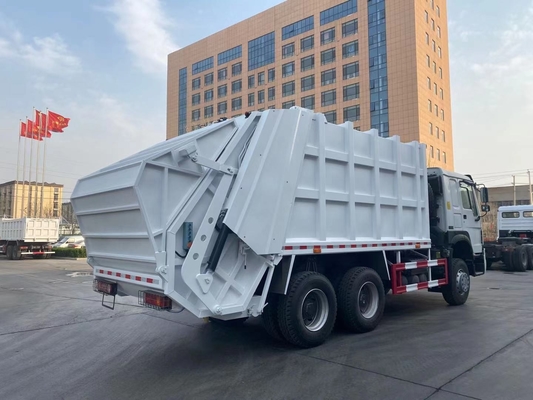

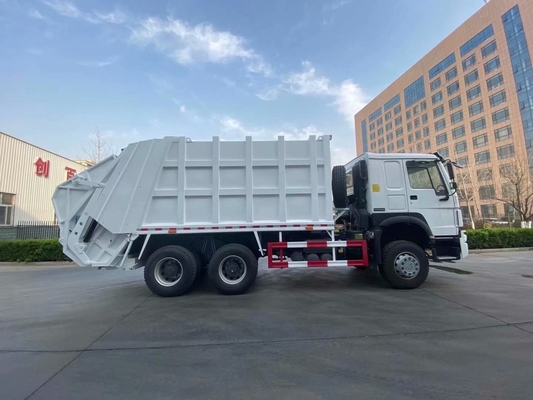

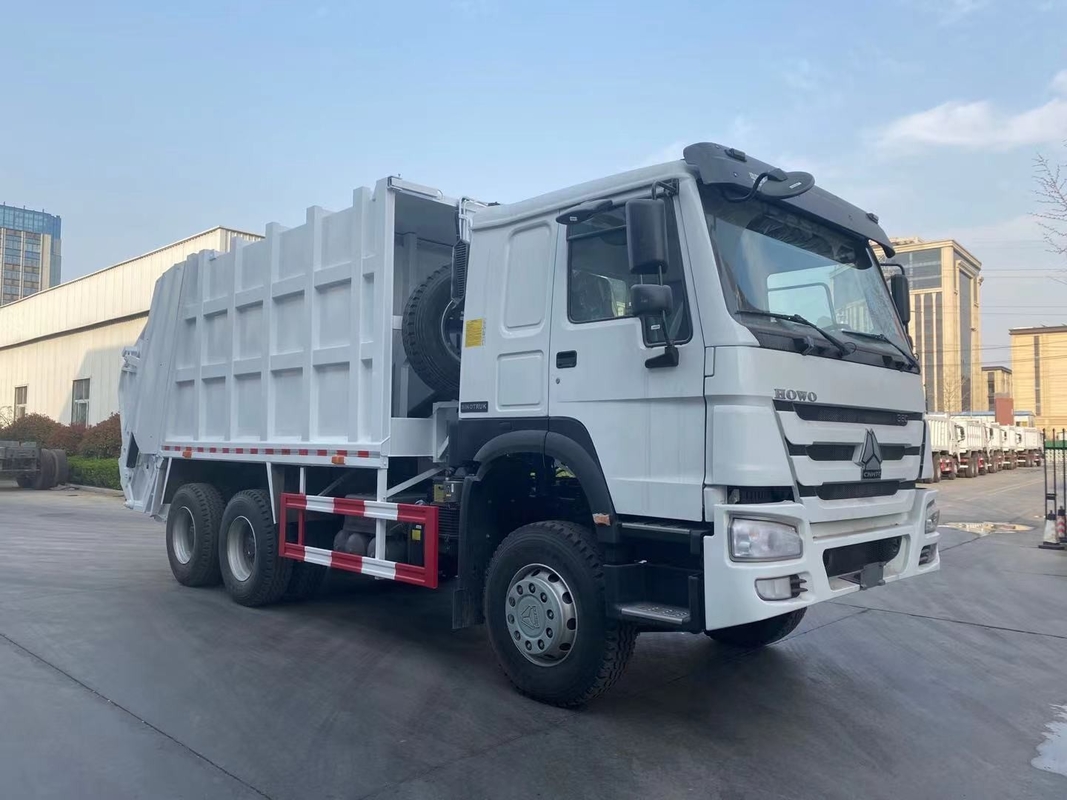

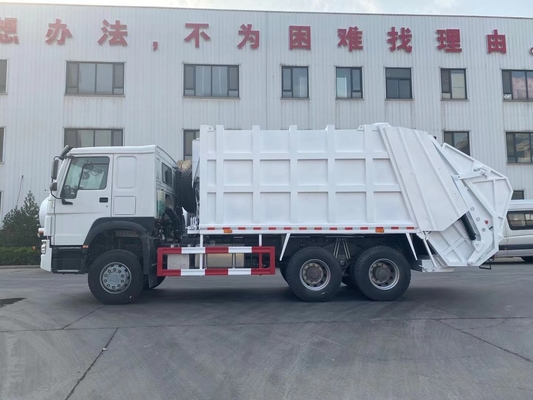

Heavy Duty HOWO Compressed Skip Loader Refuse Truck Swing Arm Garbage Collection Truck 10-15 Cbm
The garbage truck is mainly used for compress,transport and discharge garbage. It is combined with truck chassis, and compression garbage truck body. It adopt advanced Germany technology, has reliable hydraulic system, convenient and efficient control system, safety device, to ensure the truck has excellent performance.
Vehicle Main Dimensions | Cab type | HW76 cab, single sleeper, 2 passengers, air conditioning |
Overall dimension(L×W×H)(mm) | 9280,8950X2496X3380(mm)mm | |
Steering type | Left Hand Drive or RHD with ZF power steering | |
Max. Drive Speed (km/h) | 90 | |
Curb weight (kg) | 11870 | |
Chassis parameter | Chassis manufacturer | CNHTC |
Transmission | Manual , HOWO 10 forward and 2 reverse | |
Brakes | air brake | |
Tire | 12.00R20 with 1 spare tire | |
Engine parameter | Engine brand | CNHTC |
Model | WD615.69 | |
Fuel type | Diesel | |
Horse Power(kw)/(hp) | 247kw/336hp | |
Displacement(ml) | 9726ml | |
Superstructure Parameter | volume(m3) | 5.5-16m3 |
Compartment material | side and back 4mm ,floor 5mm carbon steel | |
Standard Configuration | loading hopper, front push , rear compressed , sewage tank, with sewage water tank, rearhanging bucket overturn mechanism, | |
Control method | Electronic Control in the cab and manual control on the body side |
Our Services:
1. Goods we can supply: we are authorized SINOTRUK main dealer, and important exporter of SDLG, SHANTI, LIUGONG,LONGONG, SHACMAN, BEIBEN, FAW; so we can supply you different brand trucks and machinery with 100% original factory quality.
2.Suggestions: we can give you professional suggestions based on your need, just tell us what kind of work will the trucks used, or how many tons will you loading, we will suggest you suitable model from light duty truck, heavy duty truck, semi trailer, to construction machinery.
3.Transportation: we cooperate with the formal and big freight forwarder company, who can provide professional shipping service to your country main port. You just need to take the clearance documents and bill of loading we offered, do the customs clearance, you can drive your truck home.
