Sdlg 1.8 ton 1cbm Bucket Wheel Loader Lg918 For Sand Loading And Unloading

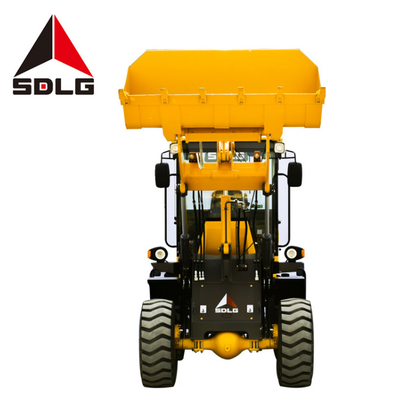

Large Image : Sdlg 1.8 ton 1cbm Bucket Wheel Loader Lg918 For Sand Loading And Unloading

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SDLG
Certification:	CE
Model Number:	LG918

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 15000-USD 21000/UNIT
Packaging Details:	NUDE PACKING WITH WAX
Delivery Time:	30-40 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	500 UNIT/MONTH

Contact Now

Sdlg 1.8 ton 1cbm Bucket Wheel Loader Lg918 For Sand Loading And Unloading

Description

Wheel Base:

2260mm

Lifting Height:

3200mm

Dumping Distance:

920mm

Dumping Angle:

45°

Highlight:

Sdlg 1cbm Bucket Wheel Loader

Lg918 1cbm Bucket Wheel Loader

1cbm sdlg wheel loader

SDLG RELIABLE SMALL FRONT END SDLG LOADER LG918 FOR SALE

Overall dimension
LWH	579021402920mm
Wheel base	2260mm
Min. ground clearance	290mm
Max. dumping height	2510mm
Lifting height	3200mm
Dumping distance	920mm
Dumping angle	45°
wheel tread	1630mm
steering angle	35°
horizontal crossing radius	5082mm
Min. turning radius	4460mm
Overall parameters
Backet capacity	1.0m3(1.0-1.4)
Rated load	1800kg
operating weight	6400kg
Max. tractive force	56kN
Max. breakout force	58kN
Tipping load	36kN
Engine
Model	YC4D80-T20
Type	watercooled, four-stroke, direct injection
Rated power	58kW
Rated speed	2400r/min
Engine displacement	4214ml
Max. torque	265N.m
Emission standard	GB 20891-2007
Min. fuel-consume ratio	235g/kw.h
Transmission system
Torgue converter	single-stage three-element hydraulic torque converter
Transmission type	Fixed shaft power shift+high/low speed
Gears	Forward 2 reverse 2
Hydraulic system of working device
Type	Hydraulic pilot control
total time	9.1s
Brake system
Service brake type	Air over hydraulic disc type
Parking brake type	Manual control internal expanding shoe brake
Steering system
Type	Load sensing full hydraulic articulated steering
System pressure	12 Mpa
Fill capacity
Fuel	120L
Hydraulic oil	100L
Engine	13L
Transmission	20L
Drive axle	Forward 10L+ reverse 10L
Braking system	4L

Sdlg 1.8 ton 1cbm Bucket Wheel Loader Lg918 For Sand Loading And Unloading 1
