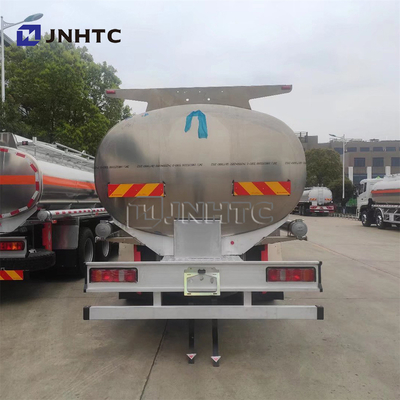

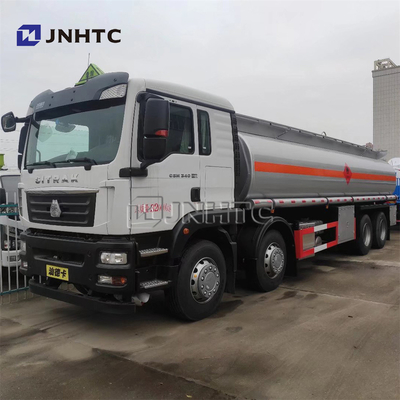

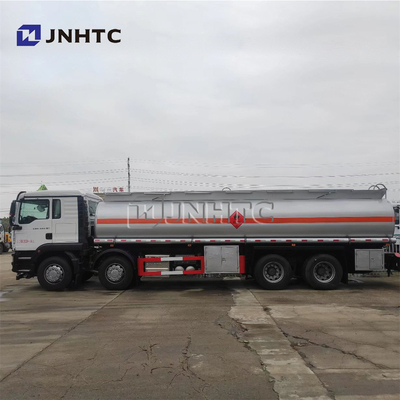

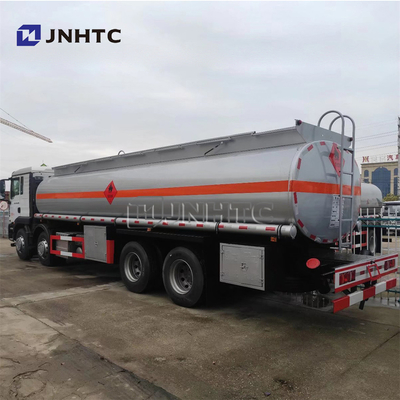

8x4 Howo Left And Right Hand Steering Diesel Oil Tank Truck Transporter Big Capacity

Truck Model

ZZ5317M4667W

Truck Brand

SINOTRUK—HOWO

Driving Type

Left hand driving

Dimension(Lx W x H)(unloaded)(mm)

11980x2496x3900

Carriage inner dimension(L x W x H)(mm)

9150*2400*1500

Approaching angle/Departure angle(°)

19/19

F/R track base(mm)

2022/1830

Tank capacity( m3 )

30

Gear oil pump

Model

76YCB-40(F)

flux m3/h

40

In /out caliber mm

76

RPM r/min

960

Remarks:oil pump model with F, represent relief valve, used for oil tanker truck with oil gun. Fire extinguisher(4kg),Oil
pipeline(2.5”, 2*3m),etc

Wheel base (mm)

1800+4600+1350

Max speed(km/h)

90

Curb weight(kg)

16360

Loading Weight(kg)

31000

Engine

Model

WD615.87, Water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Horse Power

290hp

Emission

EURO II

Fuel tanker capacity (L)

300

Transmission

Model

HW13710CL,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

8198

Front axle

HF7

Rear axle

ST16

Color

Optional

Tire

12R22.5

Tire quantity

12+1 spare

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab with one sleeper and air conditioner, all-steel forward control, 55º hydraulically tilt able to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
