Product Details:
|
| Travel Speed: | 2.1-3.1 Km/h | Traction Force: | 15.6 KN |
|---|---|---|---|
| Gradeability: | 30° | Max Digging Height: | 3475 Mm |
| Max Dumping Height: | 2415 Mm | Alternator: | 12 V/40 A |
| Bore × Stroke: | 72 Mm×73.6 Mm | Max Torque: | 51.3 Nm/1800 Rpm |
| Piston Displacement: | 898 Cm³ | ||
| Highlight: | High Quality Mini Micro Crawler Machine,1.5 Ton Mini Micro Crawler Machine,2.5 Ton Mini Micro Crawler Machine |
||

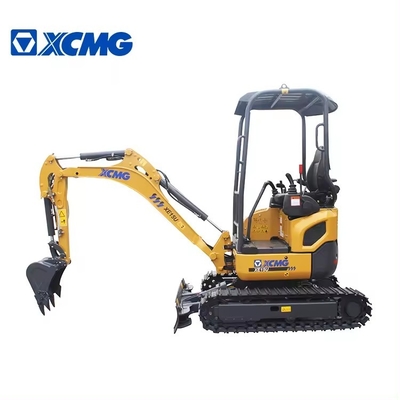

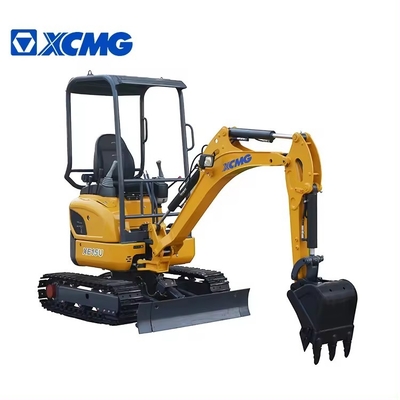

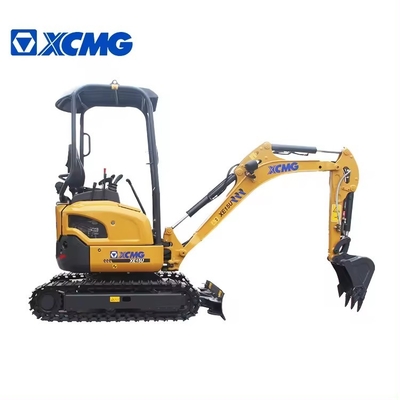

XCMG Official XE15 1.5 Ton Mini Crawler Excavate Price
| Engine | Make/model | Kubota/D902/EU Stage V |
| Fuel/cooling | Diesel/Liquid, forced circulation | |
| No. of cylinders | 3 | |
| Piston displacement | 898 cm³ | |
| Power output | 11.8 kW (15.8 hp) /2300 rpm (ISO 14396) | |
| Max torque | 51.3 Nm/1800 rpm | |
| Bore × stroke | 72 mm×73.6 mm | |
| Alternator | 12 V/40 A | |
| Digging forces (ISO 6015) | Digging force, standard arm (ISO 6015) | 10 kN |
| Digging force, long arm (ISO 6015) | 8 kN | |
| Digging force, bucket (ISO 6015) | 16 kN | |
| Drive | Travel speed (low - high) | 2.1-3.1 km/h |
| Traction force | 15.6 kN | |
| Gradeability | 30° | |
| Weight | Operating weight with canopy and bucket | 1795 kg |
| Ground pressure with rubber tracks | 0.29 kgf/cm² | |
| Transport mass (no attachment) | 1720 kg | |
| Working range | Max digging height | 3475 mm |
| Max dumping height | 2415 mm | |
| Max digging depth | 2290 mm | |
| Maximum digging reach- std. arm | 3900 mm | |
| Min swing radius | 1550 mm | |
| Dimensions | Overall length | 3560 mm |
| Overall width | 990/1240 mm | |
| Overall height | 2348 mm |

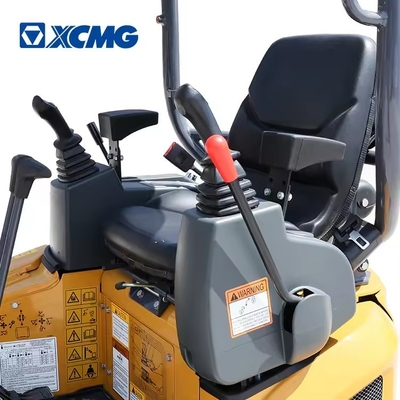

The complete machine is small and exquisite in size and turning radius, mainly suitable for landscaping, urban construction, pipeline laying and other working conditions. It uses a YANMAR engine, featuring low noise and excellent economical efficiency. The complete machine boasts outstanding inching performance and small impact by virtue of the perfect matching of the engine and the hydraulic components. Its cab uses silicone oil shock absorption with a new suspension seat provided, able to give the operator a comfortable working environment. The hydraulic main valve and key hydraulic pipelines and daily maintenance points are arranged in the full-open front and rear hoods, which can further facilitate daily maintenance. The complete machine is configured with standard high-power air-conditioning system, standby power, magazine bags and storage boxes, etc. in accordance with a humanized design. The optional rubber tracks, steel tracks, quartering hammers, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.

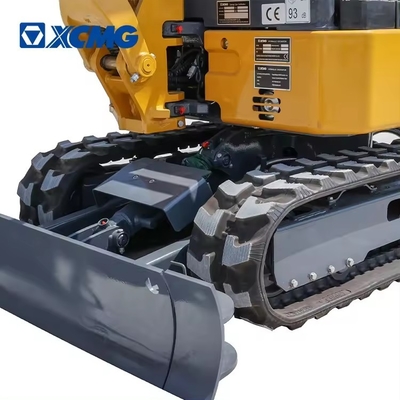

With the standard hydraulic retractable underuFFFEcarriage, passing through narrow doorways and gates becomes very easy. The undercarriage guarantees the operator better stability together with improved lifting and loading performance.
