Product Details:
|
| Travel Speed: | 2.1-3.1 Km/h | Traction Force: | 15.6 KN |
|---|---|---|---|
| Gradeability: | 30° | Max Digging Height: | 3475 Mm |
| Max Dumping Height: | 2415 Mm | Alternator: | 12 V/40 A |
| Bore × Stroke: | 72 Mm×73.6 Mm | Max Torque: | 51.3 Nm/1800 Rpm |
| Piston Displacement: | 898 Cm³ | ||
| Highlight: | 3.5Ton Mini Excavator,2Ton Mini Excavator,3 Ton mini crawler excavator |
||
Hot Sale Excavator Mini Digger kubota/yanmar Engine Crawler Excavator 2Ton 3 Ton 3.5Ton Mini Excavator Attachments
| Engine | Make/model | Kubota/D902/EU Stage V |
| Fuel/cooling | Diesel/Liquid, forced circulation | |
| No. of cylinders | 3 | |
| Piston displacement | 898 cm³ | |
| Power output | 11.8 kW (15.8 hp) /2300 rpm (ISO 14396) | |
| Max torque | 51.3 Nm/1800 rpm | |
| Bore × stroke | 72 mm×73.6 mm | |
| Alternator | 12 V/40 A | |
| Digging forces (ISO 6015) | Digging force, standard arm (ISO 6015) | 10 kN |
| Digging force, long arm (ISO 6015) | 8 kN | |
| Digging force, bucket (ISO 6015) | 16 kN | |
| Drive | Travel speed (low - high) | 2.1-3.1 km/h |
| Traction force | 15.6 kN | |
| Gradeability | 30° | |
| Weight | Operating weight with canopy and bucket | 1795 kg |
| Ground pressure with rubber tracks | 0.29 kgf/cm² | |
| Transport mass (no attachment) | 1720 kg | |
| Working range | Max digging height | 3475 mm |
| Max dumping height | 2415 mm | |
| Max digging depth | 2290 mm | |
| Maximum digging reach- std. arm | 3900 mm | |
| Min swing radius | 1550 mm | |
| Dimensions | Overall length | 3560 mm |
| Overall width | 990/1240 mm | |
| Overall height | 2348 mm |
A Compact Model with High Performance

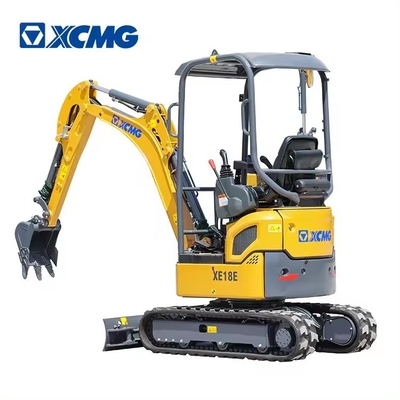

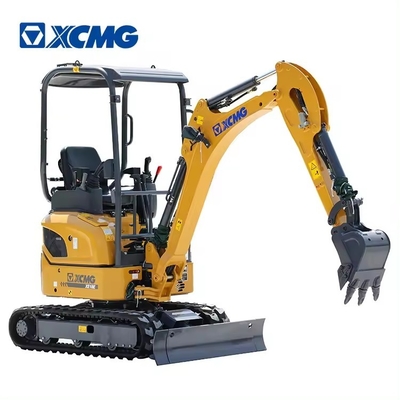

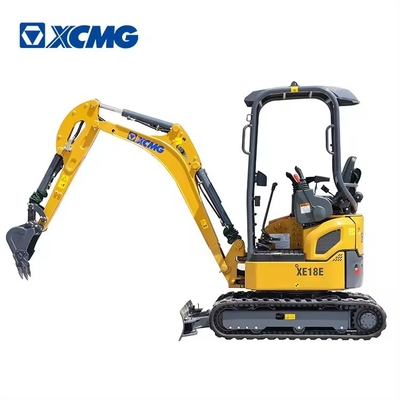

The XE18E with OPG/TOPS/ROPS (ISO 3471) canopy provides excellent visibility, stability, optimal comfort, and safety. For tough jobs in tight corners that demand precision control and state-of-the-art performance. The XE18E is ready to work, offering the following advanced features: Zero-tail swing, hydraulic retractable undercarriage, boom swing, short and long arm, and powerful digging forces. Add high reliability, low operating costs, and superior efficiency, and you have the ideal mini for a wide range of modern jobs.
Zero-tail Swing
With zero-tail swing, even the tightest space becomes an efficient work place. The tail always stays within the width of the tracks (when extended) and lets you turn the canopy throughuFFFEout its 360-degree turning radius with complete confidence and safety.

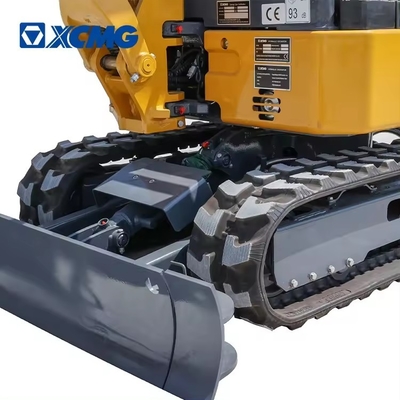

Retractable Undercarriage
With the standard hydraulic retractable underuFFFEcarriage, passing through narrow doorways and gates becomes very easy. The undercarriage guarantees the operator better stability together with improved lifting and loading performance.
