Product Details:
|
| Model: | XE35U-E | Operating Weight: | 4300 Kg |
|---|---|---|---|
| Bucket Capacity: | 0.12 M³ | Battery Type: | Lithium Iron Phosphate |
| Battery Pack Composition: | Two Standard C Packs | Battery System Energy: | 70.18 KWh |
| Battery System Capacity: | 173 Ah | Overall Length: | 5348 Mm |
| Overall Width: | 1740 Mm | Overall Height: | 2564 Mm |
| Highlight: | Sensitive Small Mini Excavator,3.5TON Diesel Mini Excavator,Euro 5 Mini Excavator |
||

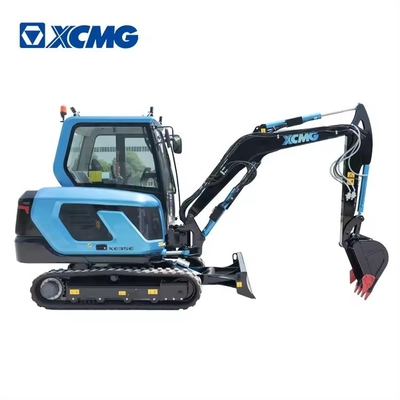

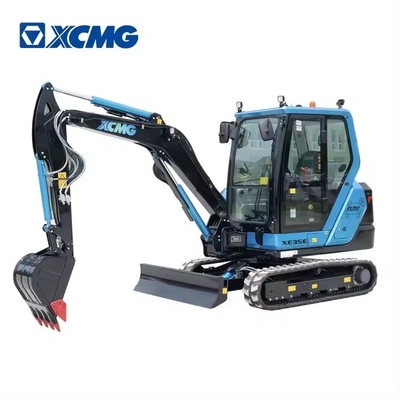

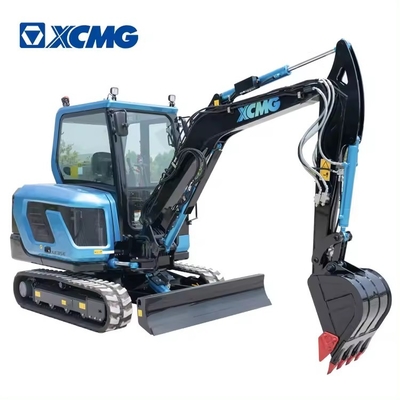

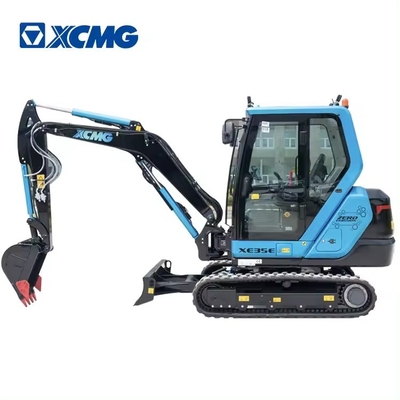

Brand High Quality XE35U-E 3.5TON Diesel Euro 5 Mini Excavator Sensitive Small Excavator For Sale
| Specificaton | ||
| Model | XE35U-E | |
| Operating Weight | 4300 kg | |
| Bucket Capacity | 0.12 m³ | |
| Battery System | Battery type | Lithium iron phosphate |
| Battery pack composition | Two standard C packs | |
| Battery system energy | 70.18 kWh | |
| Battery system capacity | 173 Ah | |
| Battery system voltage | 405.72 V | |
| Fast charge | 1h | |
| Slow charge | 7h | |
| Charge power | 11kW | |
| Electromotor | TypeType | Rated/peak rotating speed |
| Rated working voltage | 310 V | |
| Rated/peak torque | 87.5/120 Nm | |
| Rated/peak power | 22/30 kW | |
| Rated/peak rotating speed | 2400/3600 Rpm | |
| Main Performance | Travel speed(h/l) | 3.6/2.2 km/h |
| rotating speed | 8.5 r/min | |
| Gradeability | ≤30° | |
| Ground pressure | 38.5 kPa | |
| Bucket digging force | 28.6 kN | |
| Arm crowd force | 20.3kN | |
| Appearance Size | Overall length | 5348 mm |
| Overall width | 1740 mm | |
| Overall height | 2564 mm | |
| Max. digging height | 5215 mm | |
| Max. dumping height | 3760 mm | |
| Max. digging depth | 3060 mm | |
| Max. digging depth | 3060 mm |
XE35U-E electric excavator is featured with zero emissions, small vibration, low noise, and high safety characteristics. It is suitable for underground construction pipe network, tunnel, plateau and other working conditions, and has a greater advantage over diesel models in areas with strict noise limits. combined with multiple-function operating accessories, can complete tasks of digging, loading, leveling, trenching, drilling. shearing, lifting, etc., and is widely used in construction and production fields of hydropower, transportation, municipal administration, garden, farmland trans-formation etc.

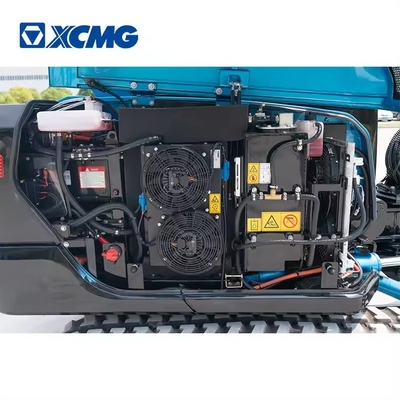

Battery-powered
Battery-powered, zero-emission and pollution-free Compared with the traditional fuel-type engine, the electric hydraulic excavator is more environ-mental friendly and economical, which can save users a lot of cost. At the same time. the use of electric drives is also an important sign of innovation in the industry
With the standard hydraulic retractable underuFFFEcarriage, passing through narrow doorways and gates becomes very easy. The undercarriage guarantees the operator better stability together with improved lifting and loading performance.
