Product Details:
|
| Travel Speed: | 2.2-3.6 Km/h | Traction Force: | 31.6 KN |
|---|---|---|---|
| Gradeability: | 30° | Max Digging Height: | 5000 Mm |
| Max Dumping Height: | 3600 Mm | Alternator: | 12 V / 40 A |
| Bore × Stroke: | 88 Mm × 90 Mm | Max Torque: | 85.3-94.2 Nm/1320 Rpm |
| Piston Displacement: | 1642 Cm³ | ||
| Highlight: | Multifunctional 3 Ton Mini Excavator,Hydraulic 2.8 Ton Mini Excavator,XCMG XE35E Garden Farm Mini Excavator |
||

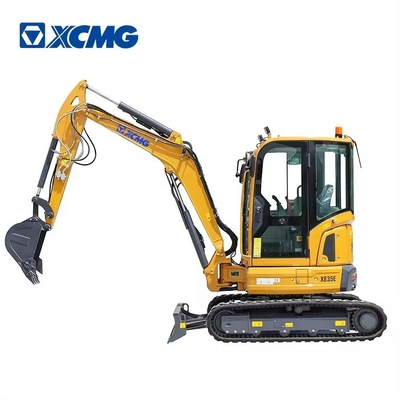

Cheap Price XCMG XE35E 3 Ton Hydraulic Multifunctional Mini Excavator 2.8 Ton Small Excavator For Garden Farm
| Engine | Make/model | YANMAR/3TNV88F/EU Stage V |
| Fuel/cooling | Diesel/Liquid, forced circulation | |
| No. of cylinders | 3 | |
| Piston displacement | 1642 cm³ | |
| Power output | 18.2 kW (24.7 hp) / 2200 rpm (ISO 14396) | |
| Max torque | 85.3-94.2 Nm/1320 rpm | |
| Bore × stroke | 88 mm × 90 mm | |
| Alternator | 12 V / 40 A | |
| Digging forces (ISO 6015) | Digging force, standard arm (ISO 6015) | 20.3 kN |
| Digging force, long arm (ISO 6015) | 18 kN | |
| Digging force, bucket (ISO 6015) | 28.6 kN | |
| Drive | Travel speed (low - high) | 2.2-3.6 km/h |
| Traction force | 31.6 kN | |
| Gradeability | 30° | |
| Weight | Operating weight with canopy and bucket | 4200kg |
| Ground pressure with rubber tracks | 0.36 kgf/cm² | |
| Transport mass (no attachment) | 4125 kg | |
| Working range | Max digging height | 5000 mm |
| Max dumping height | 3600 mm | |
| Max digging depth | 3060mm | |
| Maximum digging reach- std. arm | 5300 mm | |
| Min swing radius | 2170 mm | |
| Dimensions | Overall length | 4190 mm |
| Overall width | 1500 mm | |
| Overall height | 2580 mm |
A Superior Model with Passionate Design

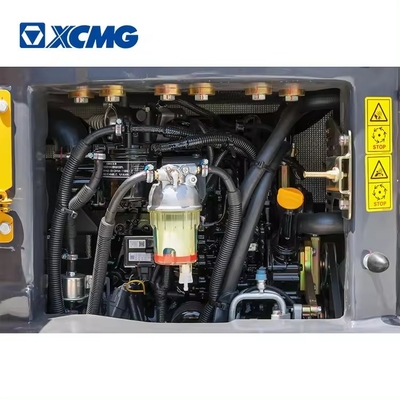

The Yanmar 3TNV88F Stage V engine, along with the load-sensing hydraulic system provides high operating efficiency and fuel economy.
This compact excavator is designed and built to work on your jobsites while reducing the risk of damage to the machine and its surroundings.

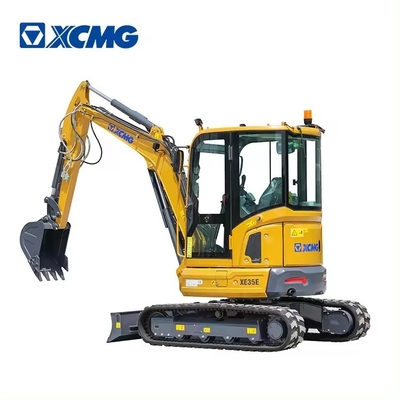

Zero Tail Swing
The versatile XE35E combines power and smooth control with excellent stability. It will perform at its best in urban areas, demolition, roadworks, landuFFFEscaping activities and much more.

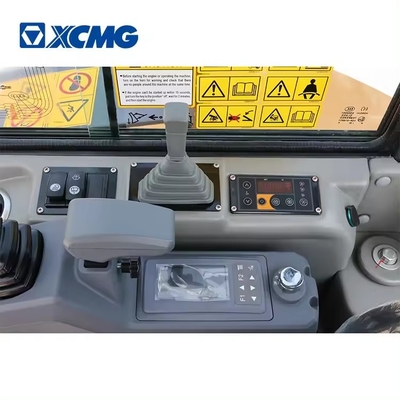

Operational Comfort

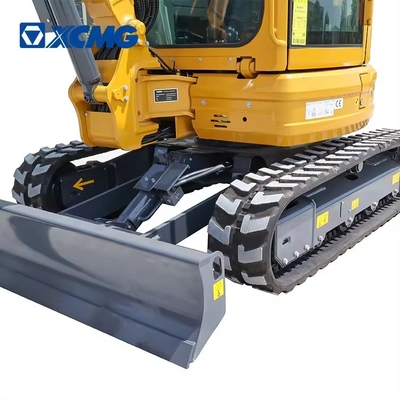

With the standard hydraulic retractable underuFFFEcarriage, passing through narrow doorways and gates becomes very easy. The undercarriage guarantees the operator better stability together with improved lifting and loading performance.
