Product Details:
|
| Model: | WD615.47 | Horse Power: | 380/2200(Hp/rpm) |
|---|---|---|---|
| Max.Toruqe: | 1820/1100-1500(Nm/rpm) | Displacement: | 9.726 (L) |
| Type: | DIESEL, EURO II Emission | ||
| Highlight: | Wholesale Concrete Mixer Truck,6X4 Concrete Mixer Truck,Customized Concrete Mixer Truck |
||

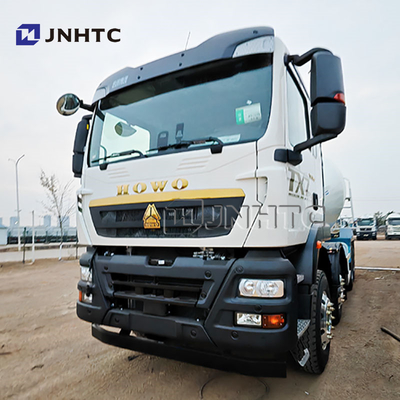

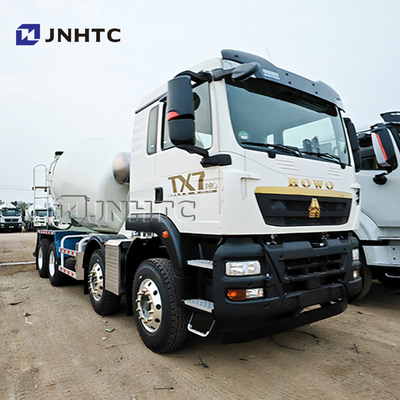

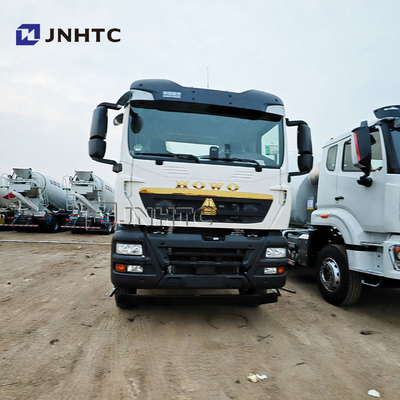

Wholesale Customized HOWO TX7 Mixer Machines Good Quality 6X4 Concrete Mixer Truck For Sale Concrete Pump

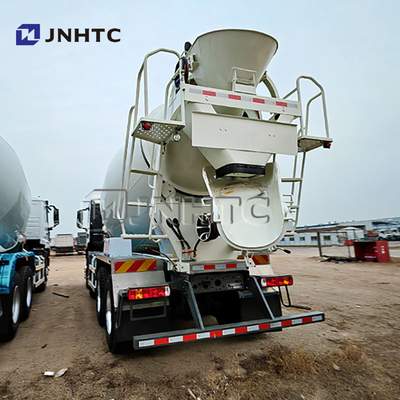

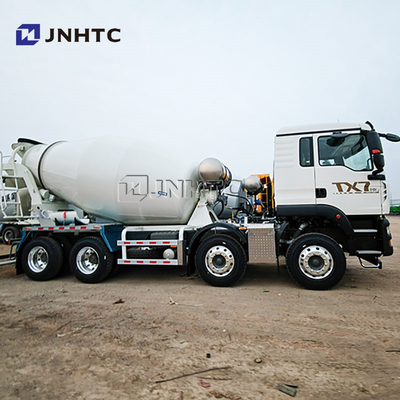

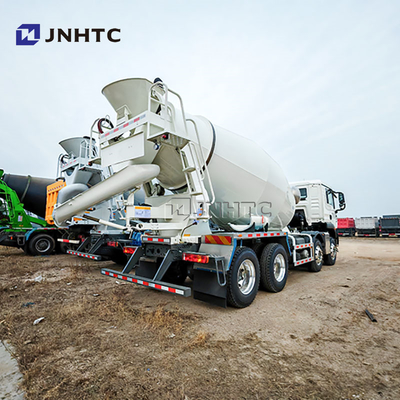

Mixing truck, a specialized truck used to transport concrete for construction purposes; Due to its appearance,
it is often referred to as a snail cart or olive cart. These types of trucks are equipped with cylindrical mixing
drums to carry the mixed concrete.
During transportation, the mixing drum will always be kept rotating to ensure that the concrete carried will not
solidify. After transporting concrete, it is usually necessary to rinse the inside of the mixing drum with water to
prevent residual concrete from hardening and occupying space, resulting in a decreasing volume of the mixing
drum.
| machine parameter | name | unit | parameter |
| 16m3(HOWO-8*4 chassis) | |||
| model | HDT5313GJB | ||
| Total Length | mm | 10850 | |
| Total Width | mm | 2496 | |
| Total Height | mm | 3980 | |
| Chassis Model | HOWO-ZZ1317N3667C1 | ||
| Overall Weight(standard code) | Kg | 31000 | |
| Curb Weight | Kg | 16600 | |
| Wheel Base | mm | 1800+3600+1350 | |
| Front Tread | mm | 2022 | |
| Rear Tread | mm | 1830 | |
| Front Overhang | mm | 1500 | |
| rear Overhang | mm | 2600 | |
| Min. Turning Radius | m | 11.5 | |
| Max. Traveling Speed | Km/h | 90 | |
| Steering Device(GERMANY ) | ZF8098( GERMANY ) | ||
| Transmission | HW18709 | ||
| engine | Oil Consumption per 100 km(under limited conditions) /100km | L | ≤31 |
| Engine Model | WD615.95, WD615.96, WD615.95E, WD615.96E | ||
| engine configuration | Water-cooled six-cylinder diesel engine Turbocharged Electronic Fuel Injection | ||
| Engine max. output power | KW | 247KW(2200R/Min);276KW(2200R/Min) | |
| Max. Engine Torque | N.m | 1350;1500 | |
| Max. PTO torque | N.m | 600(1100-1400r/min) | |
| discharge standard | state 3 Europe 3 | ||
| working device | Mixing Drum Volume | M3 | 24.1M3 |
| transport mixing volume | M3 | 16 | |
| agitator rotation angle | ° | 10° | |
| agitator rotation speed | r/min | 0-14 | |
| feed speed | M3/min | ≥3.5 | |
| discharge speed | M3/min | ≥1.5 | |
| landside degree | mm | 100~230 | |
| surplus rate | % | nearly zero | |
| water tank volume | L | 260 | |
| Max. mixing drum diameter | mm | φ2412mm | |
| supply water mode | air-pressure supply water or electric water pump |
The concrete mixing and transportation vehicle is composed of a car chassis and a specialized device for
concrete mixing and transportation. The chassis of concrete mixing transport vehicles produced in China
mostly adopts the Class II universal chassis provided by the vehicle manufacturer. Its specialized mechanisms
mainly include power take-off, front and rear brackets of the mixing drum, reducer, hydraulic system, mixing
drum, control mechanism, cleaning system, etc. The working principle is to extract the power from the car
chassis through a power take-off device and drive the variable displacement pump of the hydraulic system
to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then
drives the reducer, which drives the mixing device to mix concrete.
