Sinotruk HOWO NX 371hp 10cbm 6x4 Concrete Batch Truck New Model

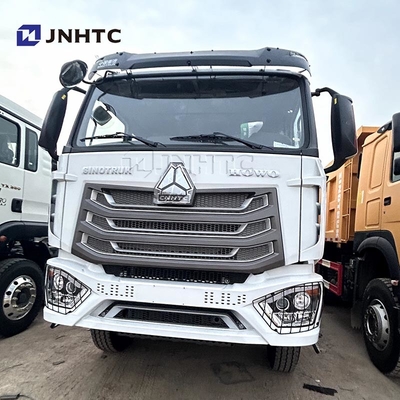

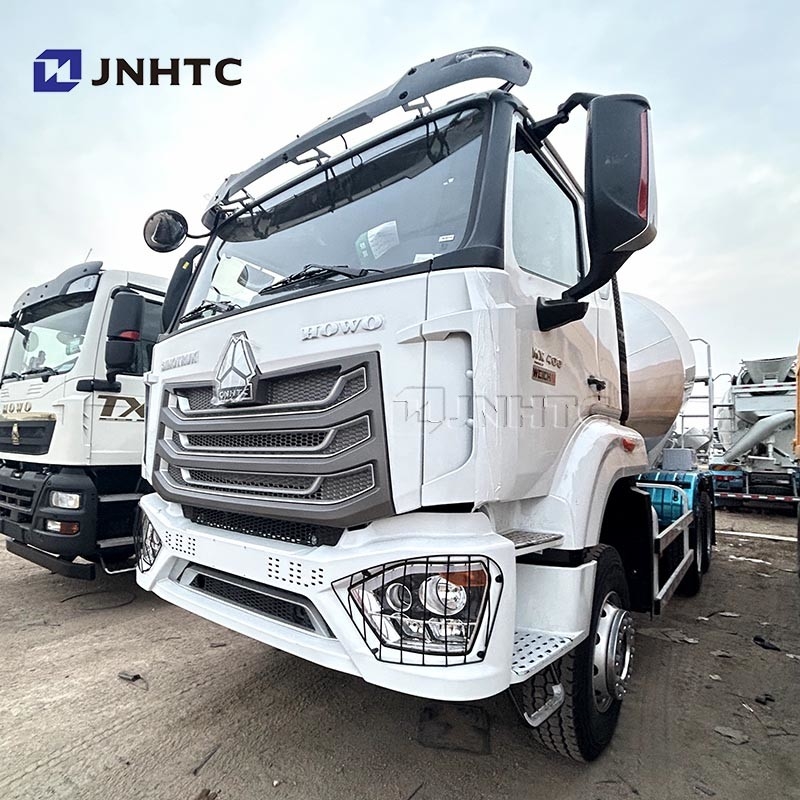

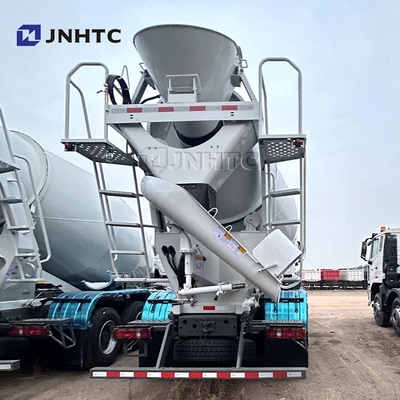

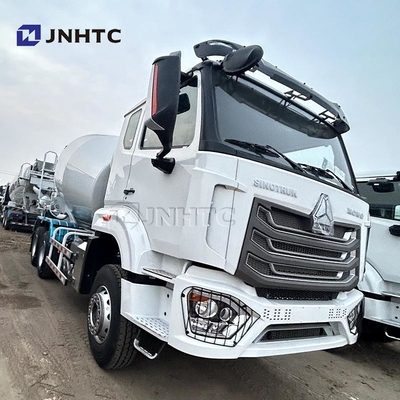

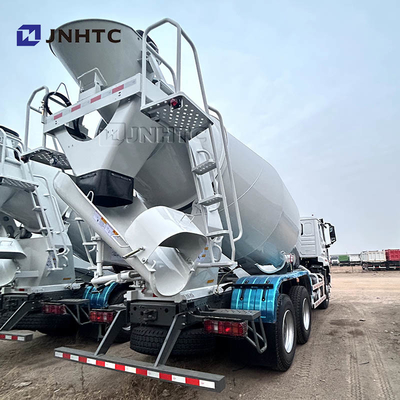

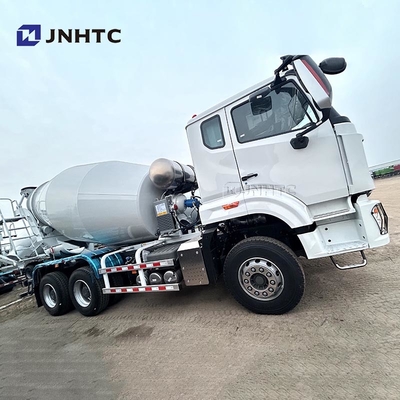

Large Image : Sinotruk HOWO NX 371hp 10cbm 6x4 Concrete Batch Truck New Model

Product Details:

Place of Origin:	china
Brand Name:	sinotruk
Certification:	iso ccc
Model Number:	howo7

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	nude
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	200units week

Contact Now

Sinotruk HOWO NX 371hp 10cbm 6x4 Concrete Batch Truck New Model

Description

Highlight:

6x4 Concrete Batch Truck

10cbm Concrete Batch Truck

Sinotruk HOWO NX Batch Truck

Sinotruk HOWO NX 371hp 10cbm 6x4 Concrete Batch Truck New Model

Representative vehicle model		ZZ1257M3 247W		ZZ1257N3247W	ZZ1257N3641W	ZZ1257S3647W	ZZ1257N3841W	ZZ1257 N3847W
Cab	Model	HW76
	Type	Extended Cab,single berth,up/down and front/back adjustable wheel, VDO instrumentand control module,double-locking safety belt,exterior sun visor.
Engine	Model	WD615.87	WD615.69		WD615.69	WD615.47	WD615.87	WD615.69
	Rated Power Kw/rpm	213/2200	247/2200		247/22000	273/2200	213/2200	247/2200
	Maximum torque Nm/rpm,	1160/1100-1600	1350/1100-1600		1460/1100-1600	1460/1100-1600	1160/1100-1600	1350/1100 -1600
	Displacement L	9.726
	Type	Six cylinders inline,two valve,supercharge intercooler,supercharge postposition
Clutch		Φ430diaphragm spring clutch,hydraulic control air assisted.WD615.69, WD615.47 standard430B,WD615.87 standard430C
Transmission		SINOTRUK HW series 10 gears transmission,main and auxiliary transmission structure,main transmission with double counter shaft,auxiliary transmission with planetary reduction.WD615.87 HW15710 is standard,WD615.69 and WD615.47 HW19710 is standard.
Front axle		HF9 drum-type,rated load of 9t
Drive axle		HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73 4.8
Suspension		Front and rear leaf spring suspension,front suspension with shock absorber,transverse stabilizer,rear suspension is disconnected type with transverse stabilizer.
Steering system		ZF8098 steering gear,ZF steering gear,ZF steering oil pump,system pressure 18MPa
Braking system		Service brake:dual-circuit air pressure brake;parking brake:spring storage energy without air;auxiliary brake;Engine exhaust braking.Engine EVB is optional,and with ABS and optional auto clearance adjusting arm.
Electrical system		Voltage:24V;generator:1540W;starter:24V,7.5kw;battery:12V/145AH,2pieces
Tyre		12.00R20;12.00R24;12.00-24 Tyre is optional
Tank volume L		300
Kerb weight(vehicle/ chassis) kg		12800/8650	12800/8650		13100/8800	13100/8800	13220/8830	13220/8830
Griss mass(vehicle/ chassis) kg		25000	25000		25000	25000	25000	2500
Rated losd kg		12070/16220	12070/16220		11770/16070	11770/16070	11650/16040	11650/16040
External dimensions(length* width*height)mm		8204* 2496*3850	820424963850		871524962958	871524962958	9040* 2496*2958	8560* 2496*2957
Chassis overall dimension (lengthwidth height)mm		735024962958	735024962958		777524962958	777524962958	807524962958	8075* 2496*2957
Wheelbase mm		3225+1350	3225+350		3625+1350	3625+1350	3825+1350	3825+1350
Front/rear overhang(vehicle/ chassis) mm		1500/(2129/1275)	1500/(2129/1275)		1500/(2240/1300)	1500/(2240/1300)	1500/(2365/1400)	1500/( 2365/1400)
Wheel track (front/rear)m		2022/1850	2022/1850		2022/1850	2022/1850	2022/1850	2022/1850
Minimum ground clearance mm		314	314		314	314	314	314
Approach/departure angle(vehicle/chassis) °		16/(32/36)	16/(32/36)		16(26/35)	16/(26/35)	16/(26/33)	16/(24/33)
Maximum speed km/h		91	91		91	91	91	91
Max climbing ability %		20	20		20	20	20	20
Minimum turning diameter m		15	15		16.3	16.3	17	17
Mixer tank effective volume m³		6;7;8	6;7;8		9	9	10	10
Remark								WD615.47 is optional
