Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck

Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck
Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck

Large Image :  Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck

Product Details:
Place of Origin: Shandong, China
Brand Name: HOWO Truck with XCMG Crane
Certification: ISO 9001
Model Number: HOWO Truck with XCMG Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $27,000.00 - $75,000.00
Packaging Details: in nude
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 100 units per month
Contact Now

Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck

Description
Max. Lifting Height:: 15m Feature:: Truck Crane
Model Number:: ZZ3257N3647A Dimensions (L X W X H) (mm):: 10000*2500*3710
Highlight:

Howo TX truck mounted crane

,

12 to 20 ton straight arm crane

,

8x4 cargo truck crane

Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck
With 5-10% discount! This truck is available!! We can deliver on time!!!
Product Attributes
Attribute Value
Max. Lifting Height: 15m
Feature: Truck Crane
Model Number: ZZ3257N3647A
Dimensions (L x W x H) (mm): 10000*2500*3710
Product Specifications
Cabin Driving type 8x4
HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm 10000×2500×3710
Carriage Size (L x W x H) mm 5600×2300×1100
Wheel base (mm) 3225+1350
Wheel track (front/rear) (mm) 2022/1800
Approach/Departure angle(°) 10/16
Weight Specifications
Tare Weight 13200 kg
Payload 25000 kg
Front axles loading capacity 1x7000 kg
Rear axles loading capacity 2x16000 kg
Engine Specifications
Brand Sinotruck
Model WD615.69
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 290 HP
Emission standard Euro II
Other Components
Gearbox HW15710, 10 Forwards gear & 1 reverse gear
Steering ZF8098, from Germany
Tire 12.00R20 all radial steel tires
Clutch Reinforced diaphragm clutch, diameter 430 mm
Crane Specifications
Brand XCMG
Type Knuckle
Max lift capacity 8000 kg
Max working radius 10 m
Max lifting height 12.5 m
Detailed XCMG Crane Specifications
Item Unit SQ8ZK3Q SQ6.3ZK2Q SQ5ZK3Q
Max. Lifting capacity Kg 8000 6300 5000
Max. Lifting height m 12.5 10.8 12.5
Working radius m/kg 10 8.3 10
Max.Lifting Moment T.m 16 13.23 10.5
Recommend Power Kw 28 18 18
Max. oil flow of hydraulic system L/min 40 25 25
Max.pressure of hydraulic system Mpa 28 28 28
Oil tank capacity L 160 90 90
Crane weight kg 2970 2115 2117
Installation space Mm 1150 1050 1050
Rotation angle ° 360,all rotation 360,all rotation 360,all rotation

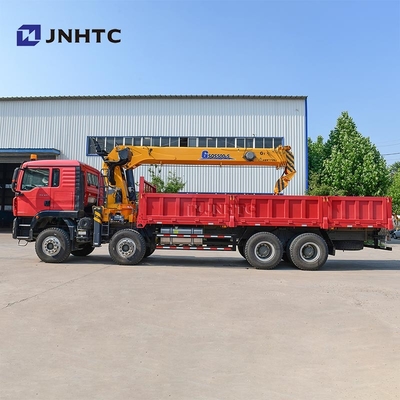

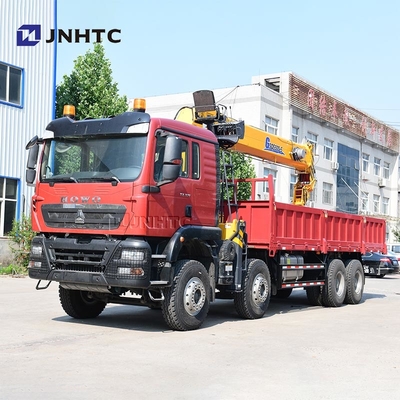

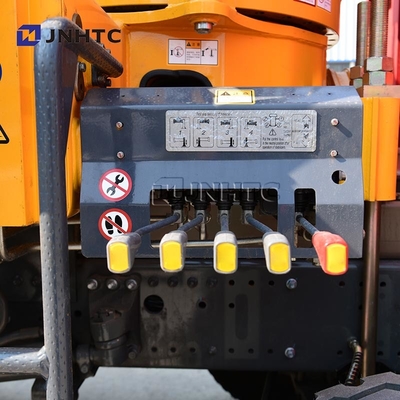

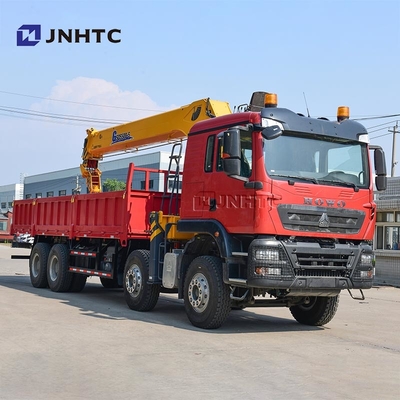

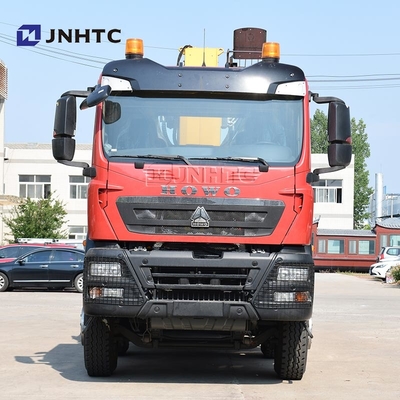

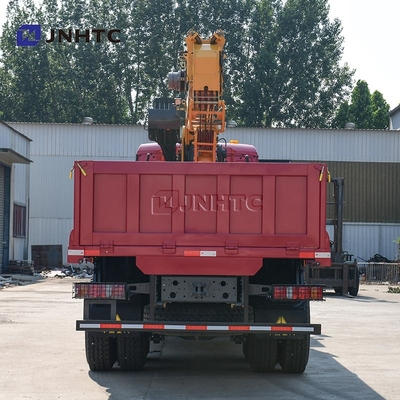

Product Images
Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck 0 Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck 1 Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck 2 Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck 3 Howo TX Cargo Truck Mounted Crane 8x4 12ton To 20 Ton Straight Arm Crane Truck 4
