Product Details:
|
Material: | Q345 | CAB: | HW76 Or HW79 |
---|---|---|---|
Loading: | 20TONS- 40TONS | Tires: | 10 Wheels |
Horse Power: | 290hp,336hp,371hp | Color: | Optional |
Highlight: | cargo container truck,military cargo truck |

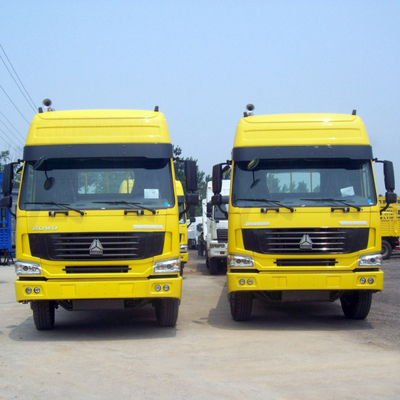

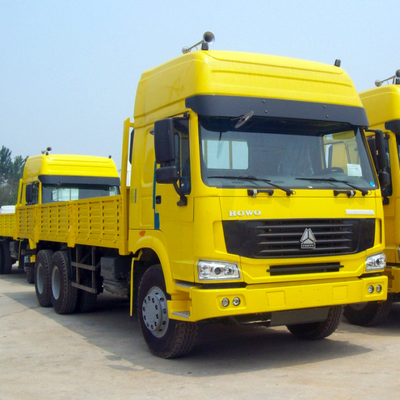

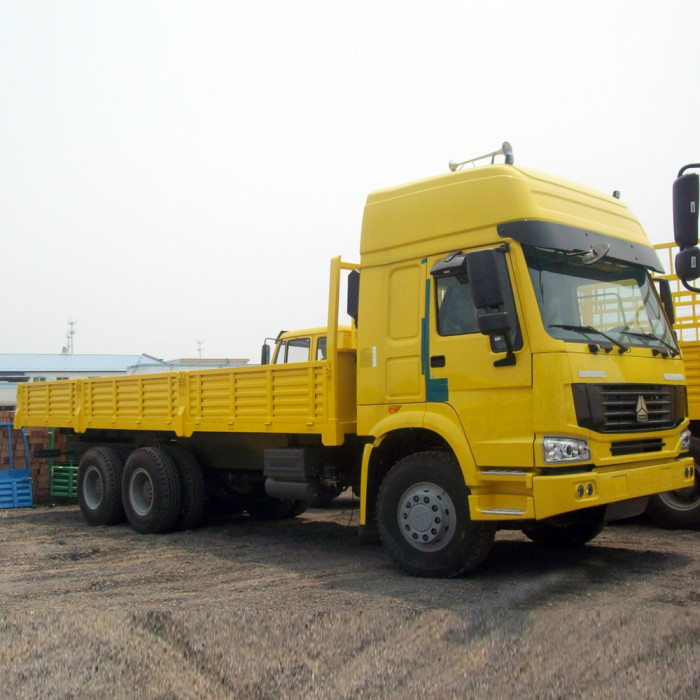

SINOTRUK Yellow Heavy Cargo Trucks HOWO 6 X 4 CARGO TRUCK 336HP Euro II 40T
Description:
1). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Specification:
Item |
SINOTRUK HOWO 6X4 CARGO TRUCK 290HP |
Truck model |
ZZ1257M4641V/M(H7/290/O46/6*4V) |
Maximum output |
290 hp (196 Kw) at 2200 rpm |
Engine model |
WD615.87, Euro II emission standard |
Clutch |
Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
Front Axles |
HF7/HF9, 7000kg/9000kg |
Rear Axles |
ST13/ST16/HC16; 13000kg/16000kg |
Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance Ratio: 26.2 |
Tires |
12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
Air conditioner |
With safety belts for driver and co-driver;With air conditioner |
Transmission |
HW15710/HW19710, 10 speed |
Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
Loading Capacity |
20-40 ton |
Driver's Cab |
HW79 High deck cab,double bunk |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .
Competitive Advantage:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
We always attach great importance to quality controlling from the very beginning!
Q 3: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 5: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
Q 6: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
