Product Details:
|
| Transmission: | HW19710 | Horsepower: | 336-420 HP |
|---|---|---|---|
| Standard: | Euro 2 | Fuel Type: | Diesel |
| Dimensions: | 9500*2550*3400 Mm | Color: | White Or As Customized |
| Driving Type: | LHD/RHD | Product Name: | Heavy Cargo Truck |
| Engine: | SINOTRUK WD615.69 | Loading Capacity: | 20,000 Kg |
| Highlight: | military cargo truck,cargo container truck |
||

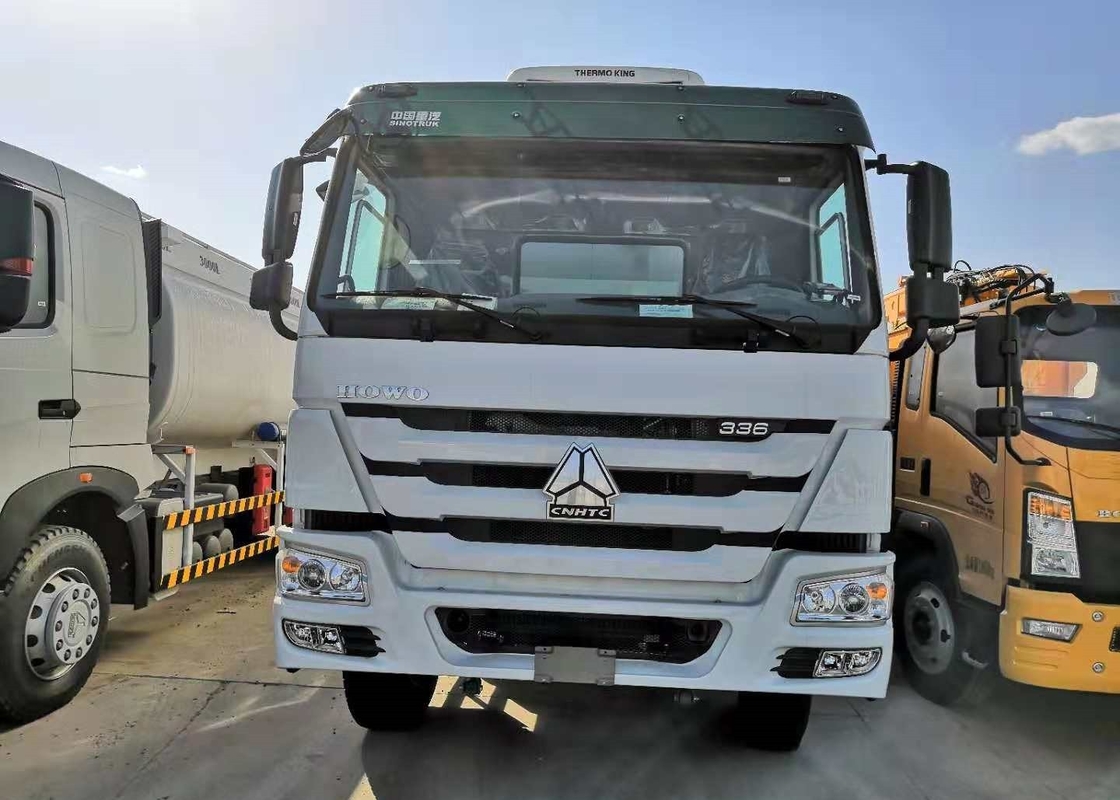

SINOTRUK Refrigerated Truck Heavy Cargo Truck 20 Tons Loading Multi-Temp Refrigerated
SINOTRUK
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
| Specifications for HOWO Refrigerator Truck | |
|
Cabin |
Driving Model: 6x4 Left Hand Drive or Right Hand Drive |
| HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. | |
| Condition: brand new | |
|
Engine |
Model: SINOTRUK WD615.69 |
|
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. Emission Standard: Euro II |
|
| Displacement: 9.726L | |
|
Transmission |
HW19710 manual gearbox, 10F & 2R |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | HF9, 1x9000 KGS Steering with double T-cross section beam |
|
Rear Axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8 |
|
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire. Optional: 12.00R20, radial tires |
| Fuel Tank | 400 Liters |
|

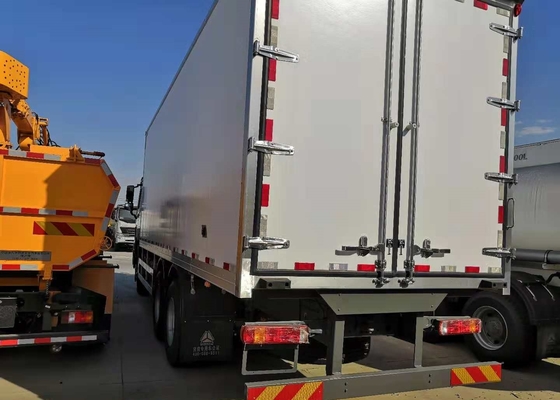

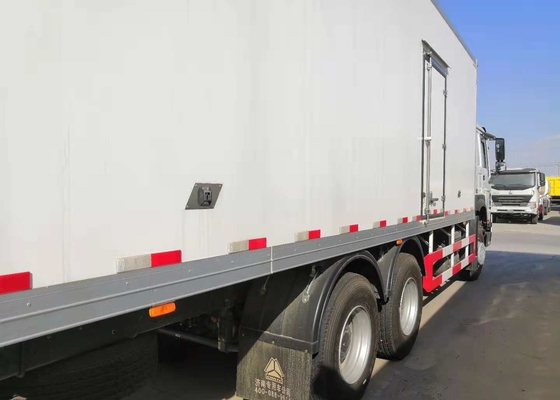

Van Body |
Van Material: GRP/Steel/Aluminium Alloy in the surface,foam in the middle,thickness 80-100mm Refrigerator Brand: Chinese/US/Korean refrigerator for option Temperature: -20~0 |
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 45 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send you professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
