Product Details:
|
| Material: | Q345 | CAB: | HW76 Or HW79 |
|---|---|---|---|
| Loading: | 20TONS- 40TONS | Tires: | 10 Wheels |
| Horse Power: | 290hp,336hp,371hp | Color: | Optional |
| Highlight: | heavy duty trucks,cargo container truck |
||

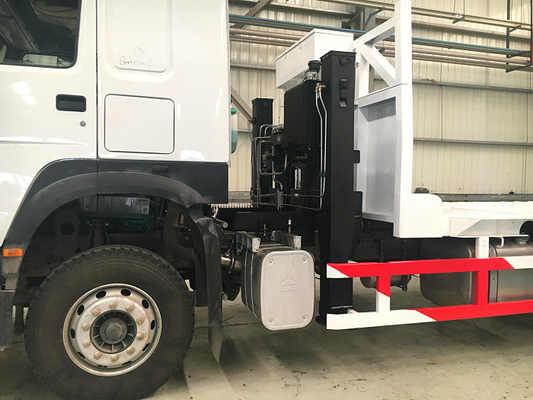

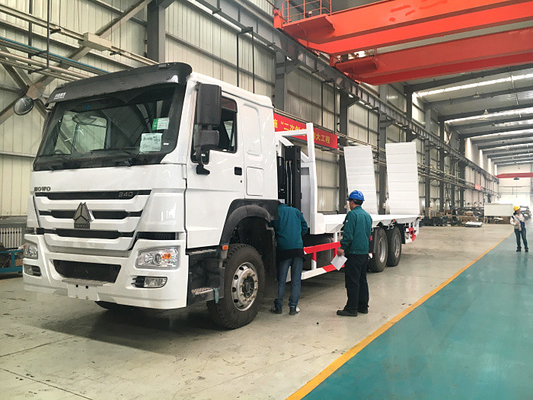

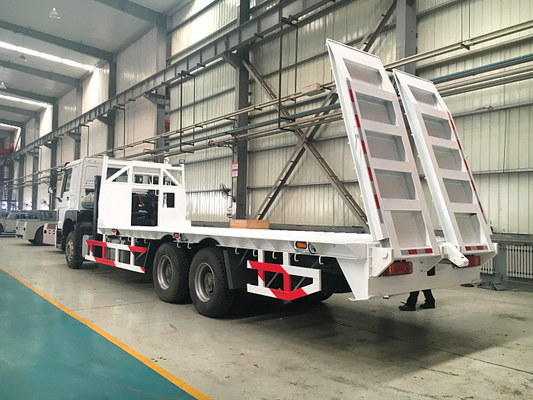

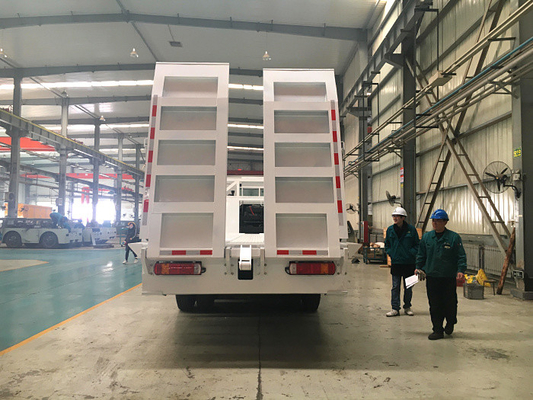

SINOTRUK 6 X 4 Cargo Trucks landing leg lift system one bed loading 40tons suitable for southeast market
Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
3). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
4) Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
Specification:
|
Item |
SINOTRUK HOWO 6X4 CARGO TRUCK 290HP |
|
Truck model |
ZZ1257M4641V/M(H7/290/O46/6*4V) |
|
Maximum output |
290 hp (196 Kw) at 2200 rpm |
|
Engine model |
WD615.87, Euro II emission standard |
|
Clutch |
Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
|
Front Axles |
HF7/HF9, 7000kg/9000kg |
|
Rear Axles |
ST13/ST16/HC16; 13000kg/16000kg |
|
Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance Ratio: 26.2 |
|
Tires |
12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
|
Air conditioner |
With safety belts for driver and co-driver;With air conditioner |
|
Transmission |
HW15710/HW19710, 10 speed |
|
Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
20-40 ton |
|
Driver's Cab |
HW79 High deck cab,double bunk |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area .
Competitive Advantage:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 5: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to Alibaba. if we don’t delivery products on
time, the deposit will return to you.
Q 6: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
