Product Details:
|
| Material: | Q345 | Axle: | FUWA, BPW |
|---|---|---|---|
| Tire: | 12.00R20, 315/80.22.5 | Support Leg: | 28T |
| Name: | DROPSIDE TRAILER | Kingpin: | 2’’ Or 3,5’’ |
| Highlight: | container semi trailer,van semi trailer |
||
3 AXLE DOUBLE FUNCTION CONTAINER SEMI TRAILER LODING 40' FEET OR 20 FEET ×2 CONTAINER
Specification:
Specification:

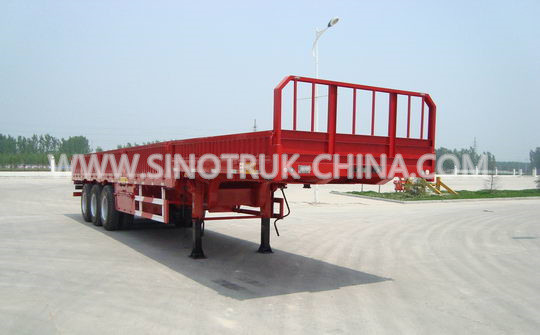

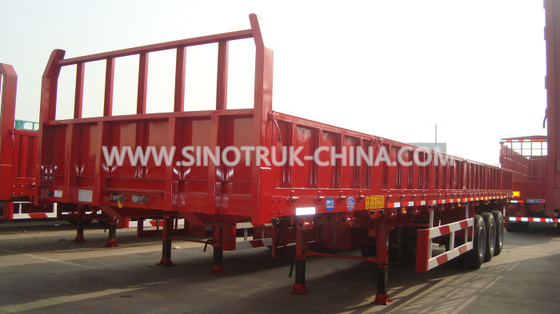

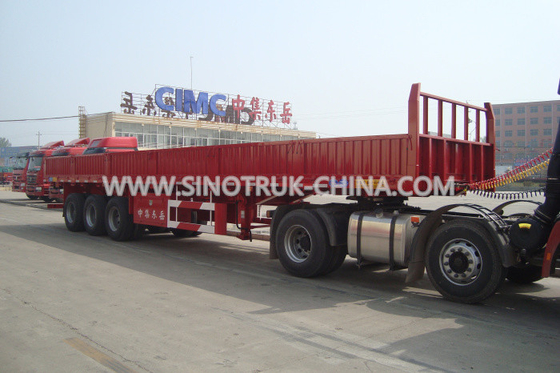

| Name | DROPSIDE TRAILER |
| Chassis | Star Trailer chassis made of Q345 steel. Strengthened “I” section main beams are welded automatically by submerged welding machine. |
| Kingpin | 2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type |
| Brake system |
Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber. WABCO, SEALCO or equivalent brand.
|
| Enhanced Features Options |
- LIGHTWEIGHT DESIGN WITH Q700 STEEL "I" BEAM. - Other dimensions available.
|
| Electric system | 24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand. |
| Landing gear |
Single side operation, 2 speeds, telescopic type. JOST, Holland or equivalent brand.
|
| Tyres |
12 R22.5 or 385/65 R22.5 or 315/80 R22.5. Triangle, Bridgestone, Goodyear, Continental.
|
| Axle and suspension |
13T load capacity, 150 x 150 square axle. BPW, FUWA, JMCG. Mechanical suspension or air suspension
|
| Accessories |
2pcs Spare wheel carries 1 pc tool box Reflector
|
| ABS Optional | |
Advantages:
Drop Side Trailer is designed with detachable side walls and a bulkhead to protect the cargo inside. It is widely used to haul general cargo, livestock and other bulk items. Waterproof cover and slider roof can be equipped as option for valuable goods protection.
