Product Details:
|
| Brand: | SINOTRUK Heavy Duty Semi Trailers | Color: | Red Yellow White Green Or Others |
|---|---|---|---|
| Power: | 371HP | Axles: | 3 |
| CBM: | 50000L | Drive: | 6*4 |
| Highlight: | van semi trailer,tank semi trailer |
||

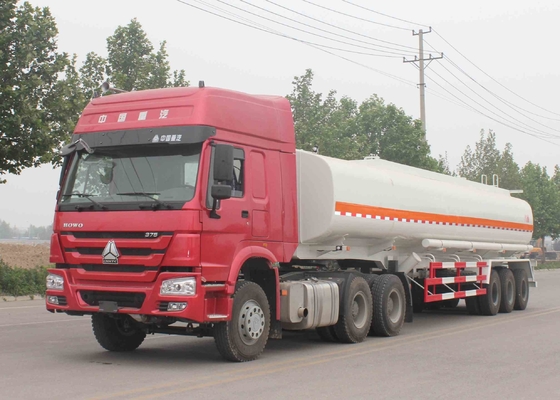

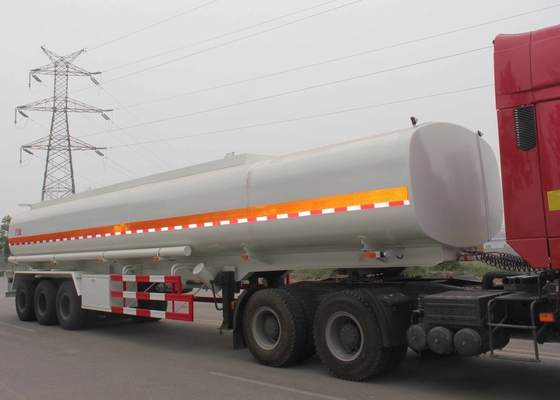

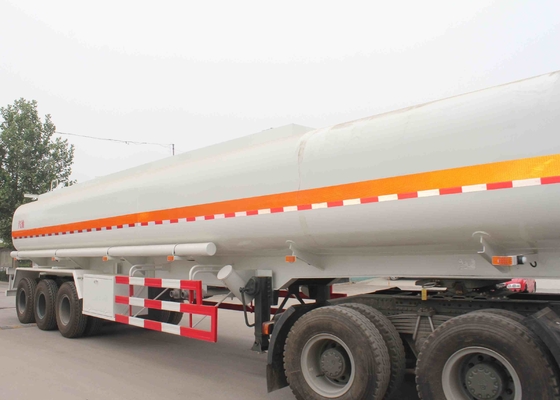

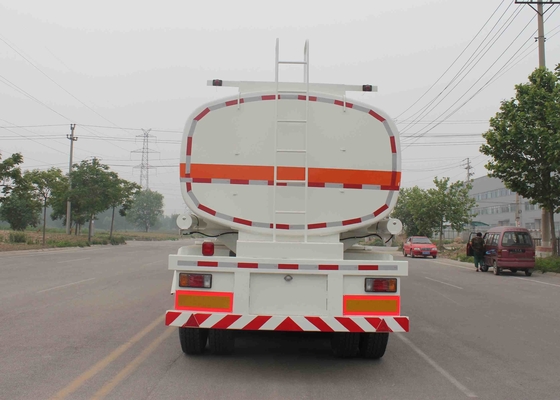

SINOTRUK HOWO 6*4 Fuel Tank Truck Heavy Duty Semi Trailers 371 Horse Power
Product Description
Tank trucks have a variety of fueling or oil transport functions depending on the application and environment. They have the functions of oil absorption, pump oil, and various oil dispensing and distribution. The special part of the oil truck is composed of a tank body, a power take-off, a drive shaft, a gear oil pump, a pipe network system and the like. The pipe network system consists of an oil pump, a three-way four-position ball valve, a two-way ball valve, a strainer, and a pipe.
| Name | 3 Axles Fuel Tanker Semi-trailer Truck |
| Engine | WD615. 47, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection; Diesel; 371 horse power; Euro II standard |
| Transmission | HW19710, 10 speed,10 forward&2 reverse |
| Front axle | HF9 Drum |
| Rear axle | HC16 Drum |
| Cab | HW76 cab,with new face(one bunk, with air conditioner) |
| Chassis | chassis made of Q345 steel or 6061 aluminium. Strengthened “I” section main beams are welded automatically by submerged welding machine. |
| Tank Body | Hydrostatic test to 0.3Mpa on each compartment. |
| Manhole Cover | Safety manhole cover with breath valve. |
| Kingpin | 2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type |
| Brake system | Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber. WABCO, SEALCO or equivalent brand. |
| Enhanced Features Options |
- Tank material can be carbon aluminium. - Pneumatically automatic folding handrail - Other volume and loading capacity available - Air Suspension with 1st axle lifting.
|
| Electric system | 24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand. |
| Landing gear |
Mechanical landing gear, 2 speeds, telescopic type. JOST, Holland or equivalent brand. |
| Tyres |
12 R22.5 or 385/65 R22.5 or 13 R22,5 or 315/80 R22.5. Triangle, Bridgestone, Goodyear, Continental.
|
| Axle and suspension |
13T load capacity, 150 x 150 square axle. BPW, FUWA, JMCG. Mechanical suspension or air suspension
|
| ABS Optional | |
Our Advantages
(1) Competitive Factory Price and Excellent Quality
(2) More than 10 years experience
(3) Products Quality Certification SGS CCC ISO
(4) Perfect after-sale service
(5) Customized products available with us
(6) Export to more than 100 countries and regions
