Product Details:
|
COLOR: | Optional | FUEL TYPE: | DIESEL |
---|---|---|---|
RATED LOAD: | 12 TONS | TIRES: | 10 WHEELS |
MATERIAL: | Q345 | ||
Highlight: | heavy duty trucks,cargo container truck |

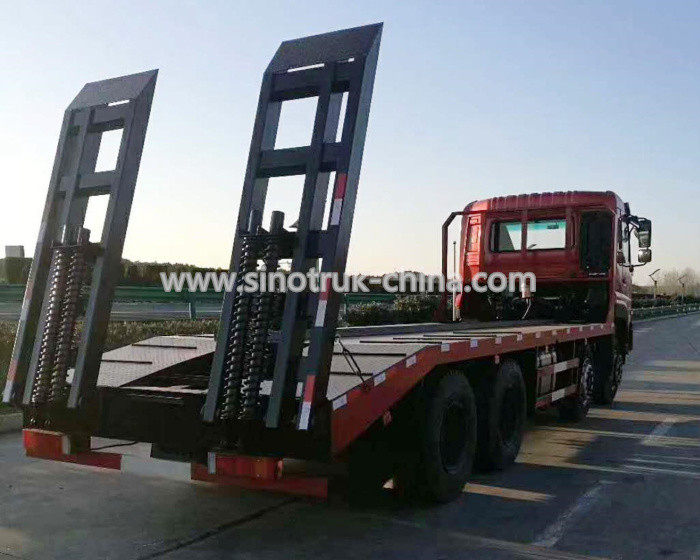

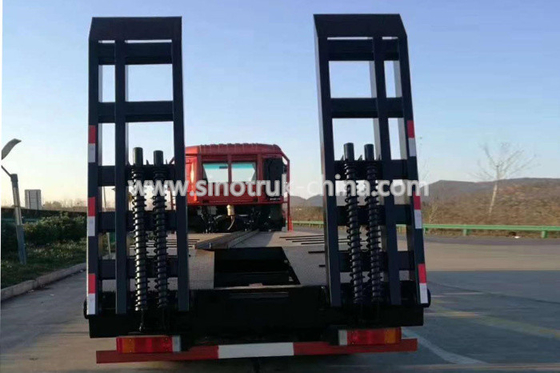

12 Wheels Heavy Duty Commercial Trucks with platfrom, Towing Wrecker Truck color optional
Description:
1.SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
2.We mainly deal with heavy duty trucks /all spare parts and service.We supply HOWO, STEYR, STEYR KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
SPECIFICATION:
Item | SINOTRUK HOWO 8X4 CARGO 336HP |
Truck model |
ZZ1317M4667W |
Maximum output |
336 hp (247 Kw) at 2200 rpm |
Engine model | WD615.69 336HP EUR 2 |
Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
Front Axles | HF7 7000kg |
Rear Axles | ST16 16TON |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
Tires | 12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
Air conditioner | With safety belts for driver and co-driver;With air conditioner |
Transmission |
HW15710/HW19710, 10 speed |
Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
Loading Capacity |
20-40 ton |
Driver's Cab |
HW76,Single bunk |
Platform
Dimension of the platform(mm) | 9200×2400 |
Bottom tickness(mm) |
5 |
ladder | 2 |
The platform loading capacity(kgs) | 20000 |
