Product Details:
|
Use: | Truck Trailer | Max Payload: | 60 Ton,80t-100t |
---|---|---|---|
Type: | Semi-Trailer,Semi Trailer,low Flat Semi-trailer,Truck Trailer,Travel Trailer | Axle: | 3 Axles,13T/16T/20T FUWA/HJ |
Product Name: | Bridge Girder Transporter Hydraulic Modular Semi Trailer,Low Bed Semi Truck Trailer,Chinese Best Quality Tri-axles 60 Tons Low Bed Trailer,skeleton Semi Trailer,Side Tipper / Rear Dumper Semi Trailer | Axles: | Three |
Condition: | New | Usage: | Truck Trailer,Cow Carrier Stake Fence Semi Trailer For Sale Africa |
Highlight: | van semi trailer,tank semi trailer |

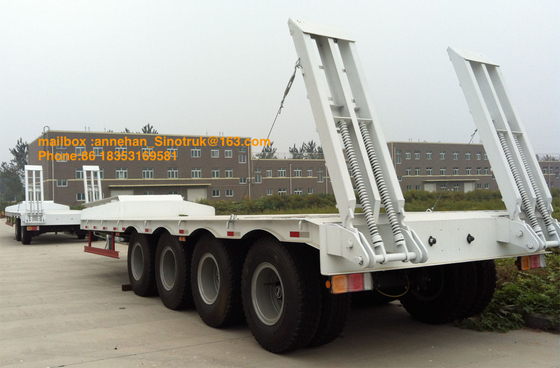

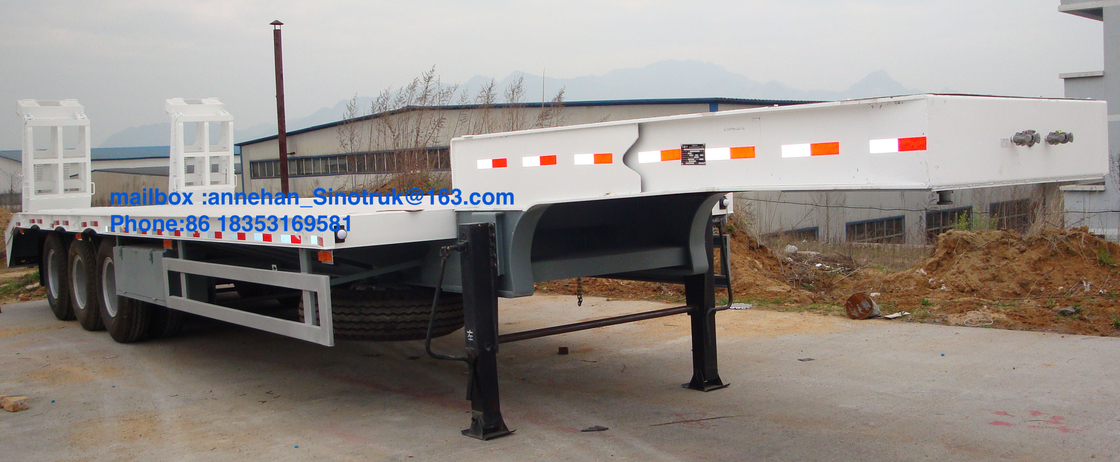

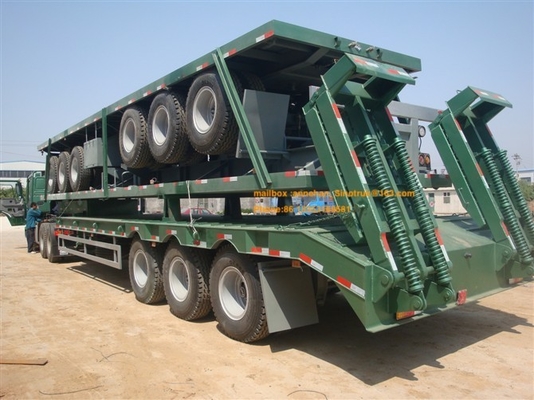

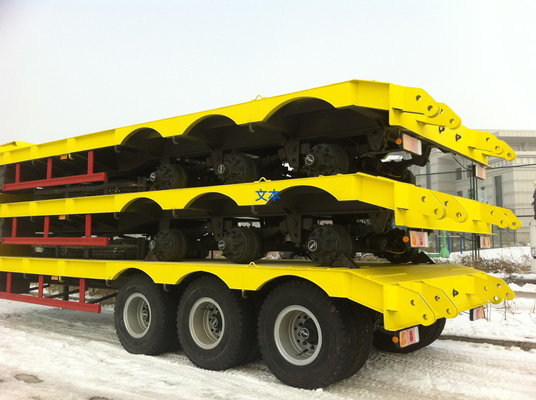

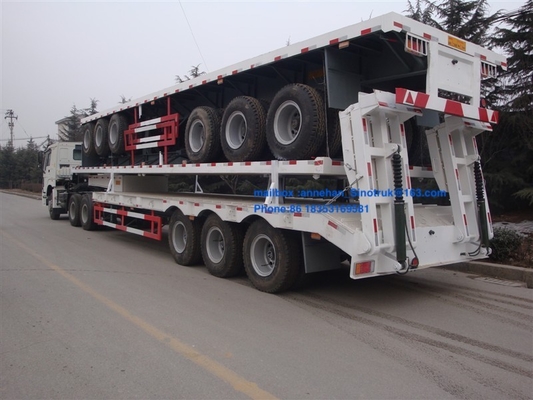

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines
Specifications
1. Supply To Global
2. Matrial:Steel
3. Professional Perfomance Flatbed Semi Trailer Supplier
4. Sinotruk
Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines | |
Model | 3 Axles 60Tons |
Axle | FUWA brand, 16ton, 2 Sets |
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
Dimension of Flat | 13000*3000*6mm |
Material | Carbon steel or Mn steel |
Gross vehicle weight | 75000kgs |
King pin | #90 |
Support leg | JOST Standard 28T |
Suspension | Normal suspension |
Thickness leaf spring | 10/10/10 |
Tire/Rim | 1200R20, 13pcs, 8.5, 12 pcs |
Brake Chamber | Standard 6 pcs |
Spare wheel carrier | 2 pcs |
Tool box | 1 pcs |
Electrical System | Chinese standard 24C lighting system |
Side Maker Lamp | LED lamp |
Painting | Polyurethane Paint |
Overall dimension | 16000×2500×3880(mm) |
Color | White, red, green, golden and so on. |
Applications:
Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment for various steel transportation.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.
If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Contact Person: AnneHan
Tel: +86 18353169581
Fax: 86-0531-87238633
